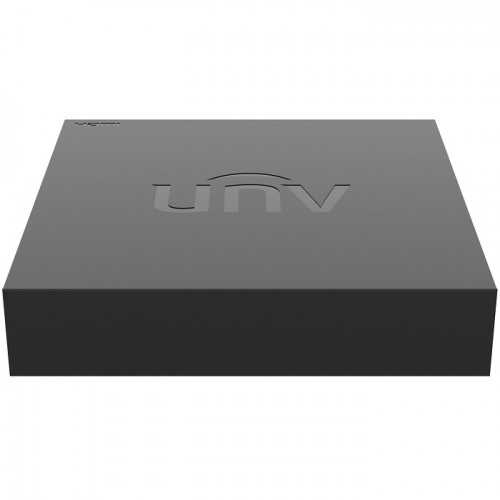

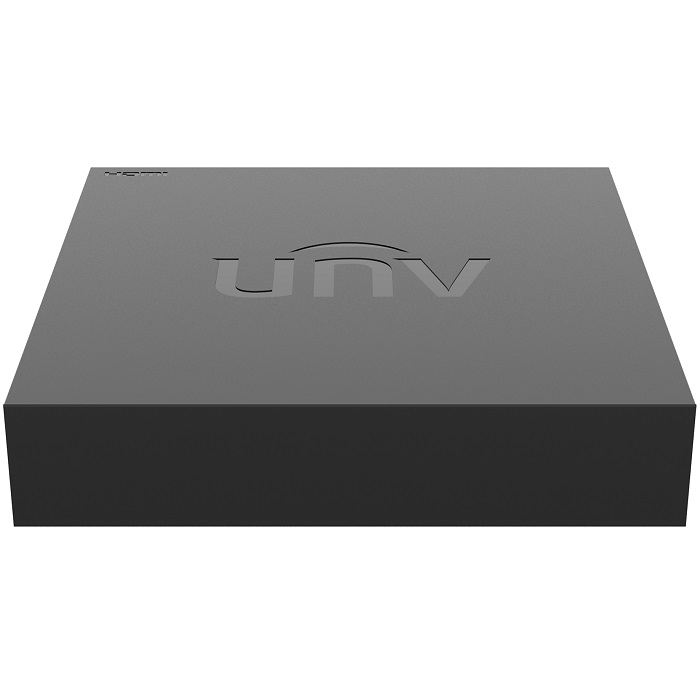

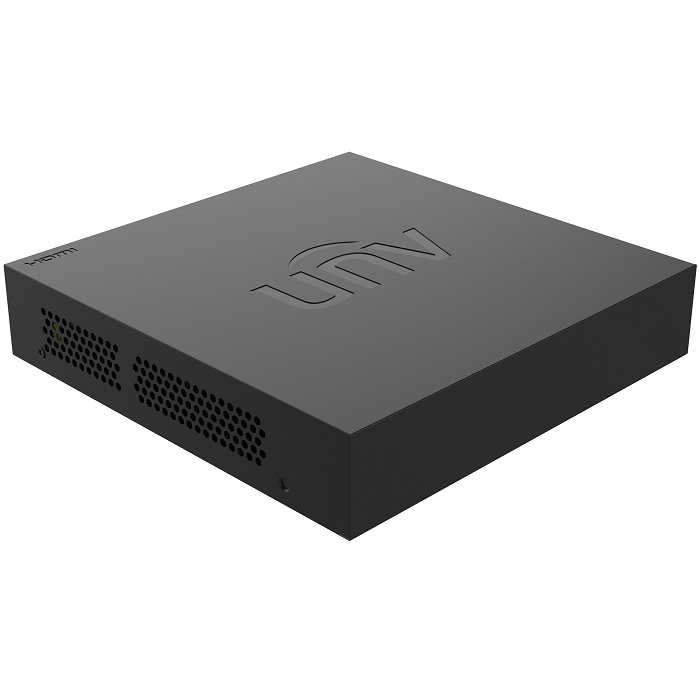

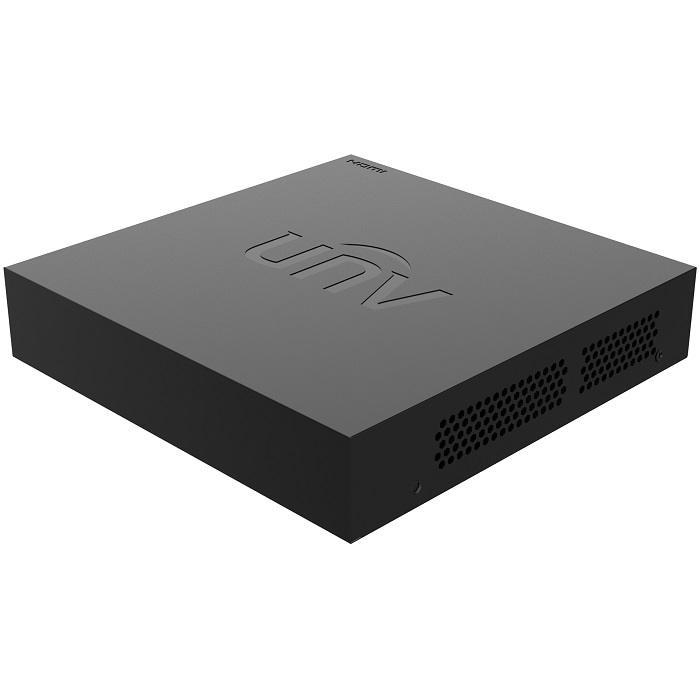

Unv 4-Channel 2MP Digital Video Recorder XVR301-04F
Unv 4-Channel 2MP Digital Video Recorder XVR301-04F
AED 550
Unv 4-Channel 2MP Digital Video Recorder XVR301-04F
UNV
AED 550 inclusive of VAT

Unv 4-Channel 2MP Digital Video Recorder XVR301-04F

  • Model:  XVR301-04F
  • SKU:                   204980
  • Condition:        New
  • Availability:      In Stock
About this Item
  • Brand: UNV
  • Support H.265/H.264 video formats
  • Support audio over coaxial cable (only for TVI cameras)
  • Control the dual-light of UNV analog cameras under TVI
  • Support analog camera upgrade over coaxial cable
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 4/8/16-channel BNC input
  • Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
  • HDMI and VGA simultaneous output
  • Long transmission distance over coaxial cable
  • Support mainstream cameras of ONVIF and RTSP protocols
AED 550 inclusive of VAT
Pay 4 interest-free payments of AED 137.50 , no interest/fees. Learn more
  • 1 year hassle free warranty claims
  • Delivery time is next working day, You can connect to support team to get exact delivery time.
Description - Unv 4-Channel 2MP Digital Video Recorder XVR301-04F

Specification

BrandUniview
Video formatHDTVI / HDCVI / AHD / CVBS / IP
Video inputs4CH BNC
Hybrid configurationUp to 6 IP Channels (6Mpx) replacing all the BNC channels
Video outputs1 HDMI Full HD, 1 VGA
Audio bit rate64Kbps per channel
Display resolution1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Maximum IP recording resolution6 Mpx
Analog recording resolutionTVI/AHD: 1080P@30fps ,720P@30fps
CVI:1080P@30fps ,720P@30fps
Supports CVBS
Main Stream recording encoding1080P Lite @25fps; 720P@30fps
Extra Stream recording encodingD1@25FPS,D1@30FPS
Recording methodManual, programmed, motion detection
Internal memory1 HDD SATA 3.5" of up to 6TB (not included)
External interface2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet)
Remote accessWeb Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
PowerDC 12V / 10W
Dimensions / Weight42 (H) x 190 (W) x 202 (D) mm / 0.6 kg
Read more
