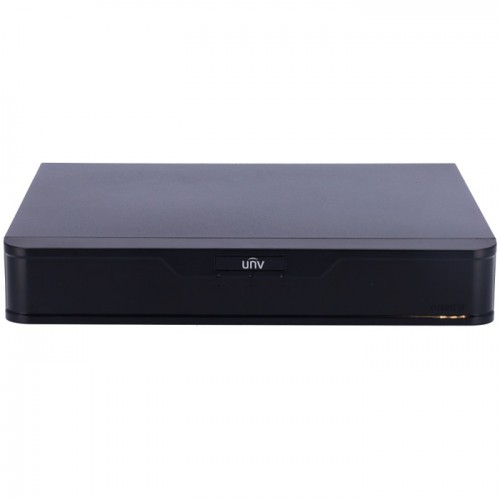

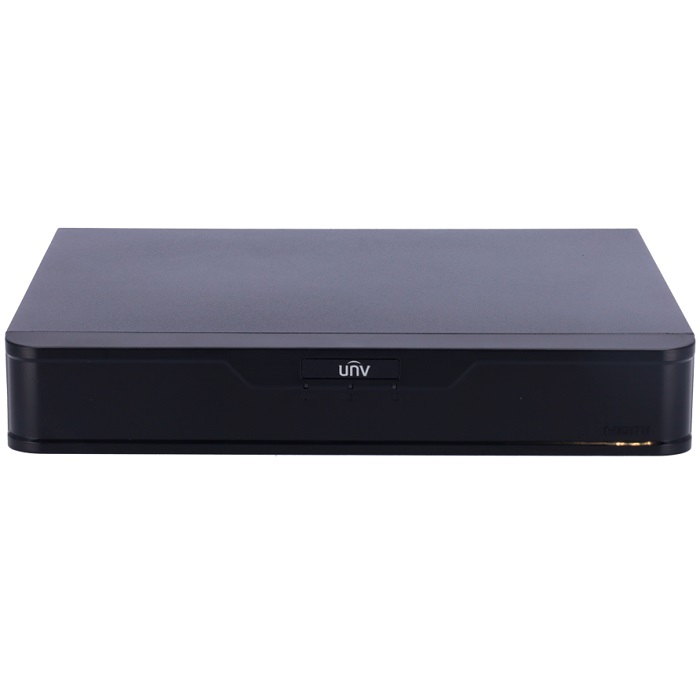

Unv 5MP 8-Channel 1-Sata Aoc XVR Including 4 Additional IP Channels XVR301-08G3
Unv 5MP 8-Channel 1-Sata Aoc XVR Including 4 Additional IP Channels XVR301-08G3
AED 313
Unv 5MP 8-Channel 1-Sata Aoc XVR Including 4 Additional IP Channels XVR301-08G3
UNV
AED 313 inclusive of VAT

Unv 5MP 8-Channel 1-Sata Aoc XVR Including 4 Additional IP Channels XVR301-08G3

  • Model:  XVR301-08G3
  • SKU:                   204983
  • Condition:        New
  • Availability:      In Stock
About this Item
  • Brand: UNV
  • Support H.265/H.264 video formats
  • Support audio over coaxial cable (only for TVI cameras)
  • Control the dual‑light of UNV analog cameras under TVI
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 4/8/16‑channel BNC input
  • Support 1‑ch HDMI output, 1‑ch VGA output at up to 1920*1080
  • HDMI and VGA simultaneous output
  • Long transmission distance over coaxial cable
  • Support mainstream cameras of ONVIF and RTSP protocols
AED 313 inclusive of VAT
Pay 4 interest-free payments of AED 78.25 , no interest/fees. Learn more
  • 1 year hassle free warranty claims
  • Delivery time is next working day, You can connect to support team to get exact delivery time.
Description - Unv 5MP 8-Channel 1-Sata Aoc XVR Including 4 Additional IP Channels XVR301-08G3

Specification

BrandUniview
Video formatHDTVI / HDCVI / AHD / CVBS / IP
Video inputs8CH BNC
Hybrid configurationUp to 8 IP Channels (4Mpx) replacing all the BNC channels
Video outputs1 HDMI Full HD, 1 VGA
Audio inputs1 Channel RCA
Audio outputs1 Channel RCA
Bidirectional audioReusing the audio input/output
Display resolution1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Maximum IP recording resolution4 Mpx
Analog recording resolutionTVI / AHD: 5MP@12FPS; 4MP@15FPS; 1080P@30FPS; 720FPS

CVI: 4MP@15FPS; 1080P@30FPS; 720P@30FPS

*For the correct live display, the combination of resolution and FPS
of the connected analog cameras must be equal to or lower than the specifications indicated, but in no case higher than the specifications indicated.
Main Stream recording encoding5MPLite@6fps; 4MPLite@8fps; 1080PLite@15fps; 1080P@8FPS; 720P@15FPS
Extra Stream recording encodingD1@15FPS(máx)
Recording methodManual, programmed, motion detection
Internal memory1 HDD SATA 3.5" of up to 6TB (not included)
External interface2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet)
Remote accessWeb Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
PowerDC 12V / 8W
Dimensions / Weight46 (H) x 260 (W) x 243 (D) mm / 1 kg
