Ceiling-mounted WiFi 6E AP with 10 spatial streams and 6 GHz support to provide seamless, multi-band coverage within high client density environments.
- WiFi 6E with 6 GHz support
- 10 spatial streams
- 140 m² (1,500 ft²) coverage
- 600+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
| Mechanical |
|---|

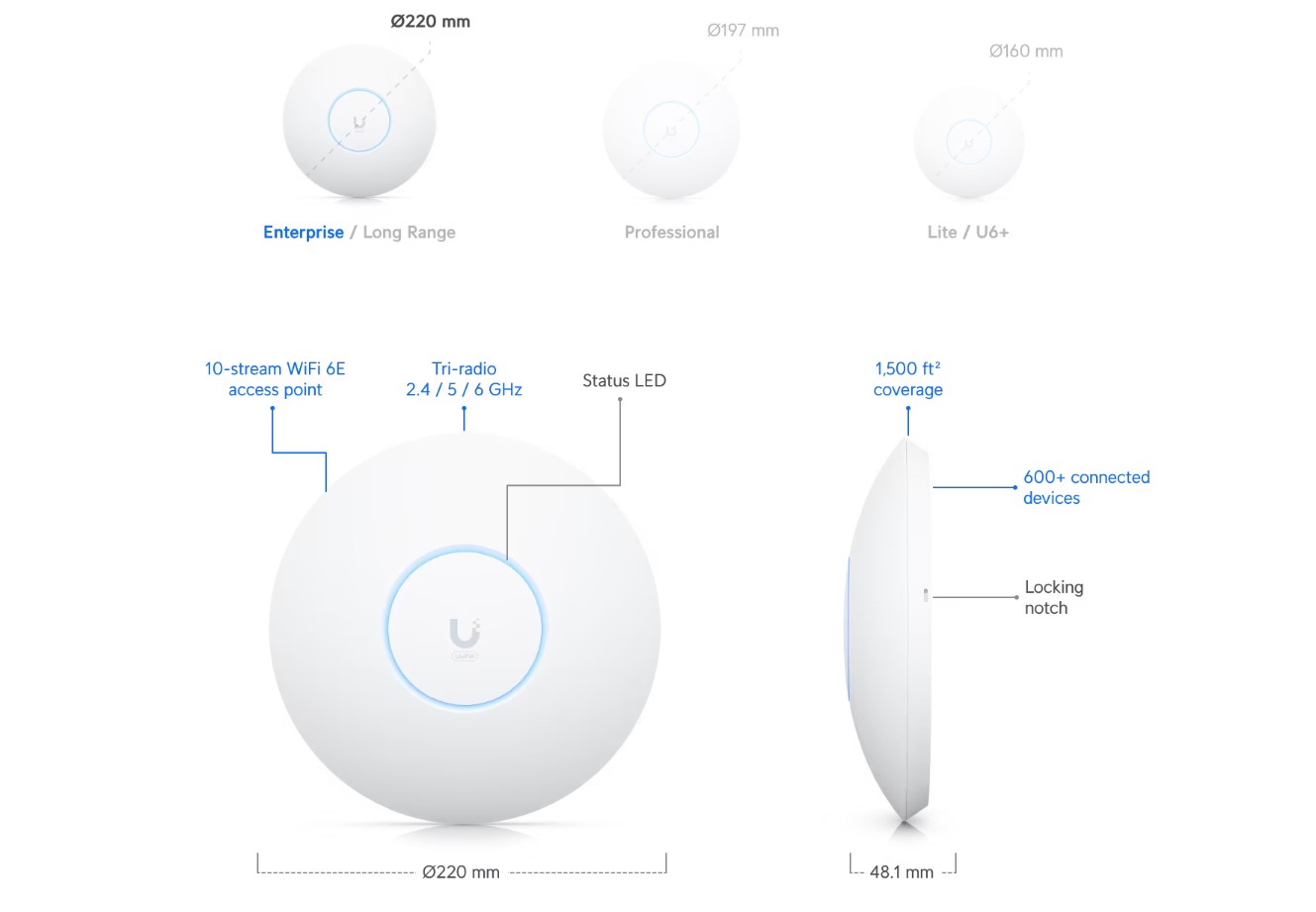

| Dimensions | Ø220 x 48 mm (Ø8.7 x 1.9") |
| Weight | Without mount: 960 g (2.1 lb)
With mount: 1090 g (2.4 lb) |
| Enclosure material | Polycarbonate, aluminum |
| Mount material | Stainless steel (SUS304) |
| Hardware |
|---|

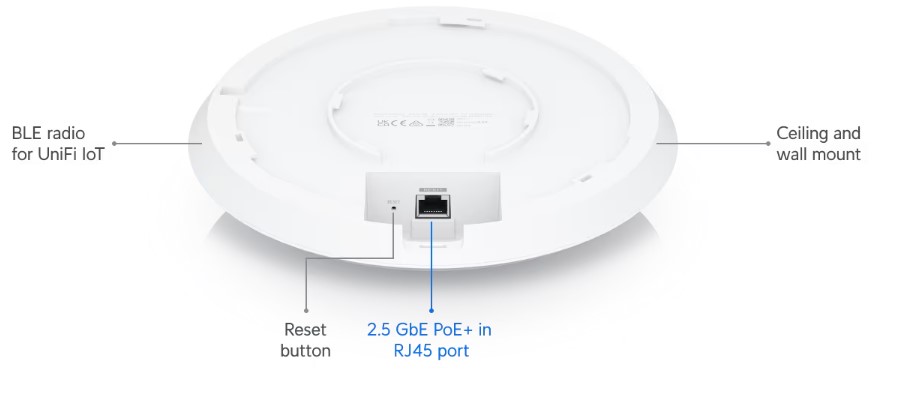

| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Management interface | Ethernet
Bluetooth |
| Power method | PoE+ |
| Power supply | UniFi PoE switch
48V, 0.5A PoE adapter (Optional) |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 22W |
Max. TX power
2.4 GHz
5 GHz
6 GHz |
22 dBm
26 dBm
26 dBm |
MIMO
2.4 GHz
5 GHz
6 GHz |
2 x 2 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO) |
Max. data rate
2.4 GHz
5 GHz
6 GHz |
573.5 Mbps (BW40)
4.8 Gbps (BW160)
4.8 Gbps (BW160) |
Antenna gain
2.4 GHz
5 GHz
6 GHz |
3.2 dBi
5.3 dBi
6 dBi |
| LEDs | White/blue |
| Button | Reboot and factory-reset |

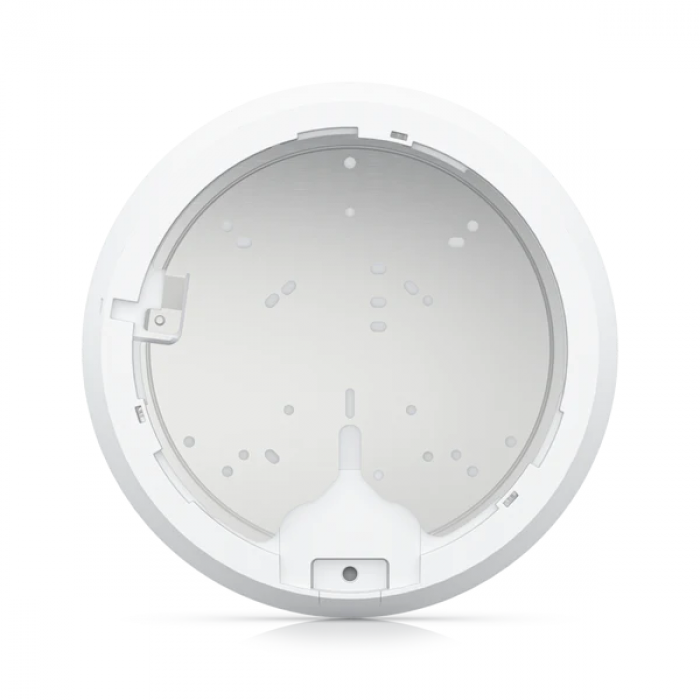

| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software |
|---|
| WiFi standards | 802.11a/b/g/n/ac/ax (WiFi 6/6E) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 600+ |
| Zero-wait DFS | Yes*
*Supported with upcoming firmware versions. |
| Supported Data Rates (Mbps) |
|---|
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements |
|---|
| UniFi Network | Version 7.2.91 and later |
