| SECURITY |
| Access Control |
Source/Destination IP Based Access Control |
| Filtering |
URL Filtering |
| Attack Defense |
TCP/UDP/ICMP Flood Defense |
| Block TCP Scan (Stealth FIN/Xmas/Null) |
| Block Ping from WAN |
| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q |
| TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP |

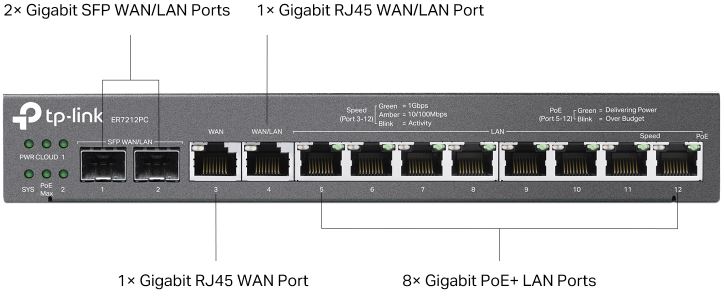

| Interface |
2 Gigabit SFP WAN/LAN ports |
| 1 Gigabit WAN port |
| 1 Gigabit LAN/WAN port |
| 8 Gigabit LAN ports |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) |
| EIA/TIA-568 100Ω STP (Max 100 m) |
| 100BASE-TX: UTP category 5, 5e cable (Max 100 m) |
| EIA/TIA-568 100Ω STP (Max 100 m) |
| 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Fan Quantity |
Fanless |

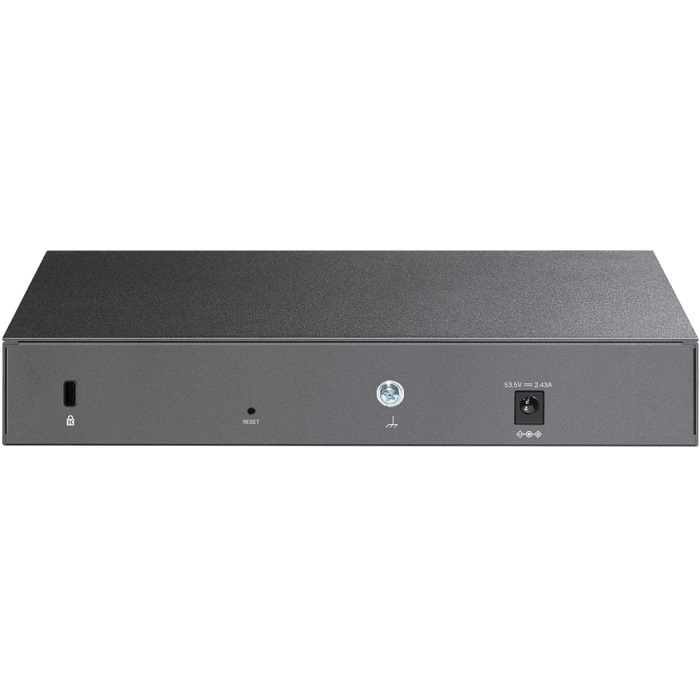

| Button |
Reset Button |

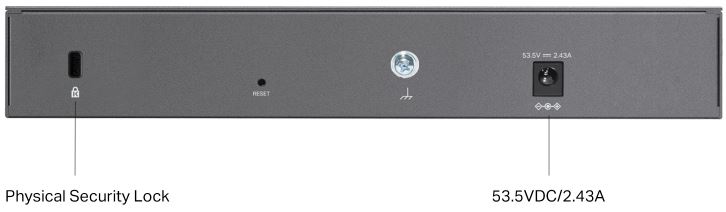

| Power Supply |
53.5VDC/2.43A Adapter |
| PoE Budget |
8 ports PoE+ output, 110 W PoE Budget |
| Flash |
8Mb Nor + 4 GB EMMC |
| DRAM |
1 GB DDR3 |

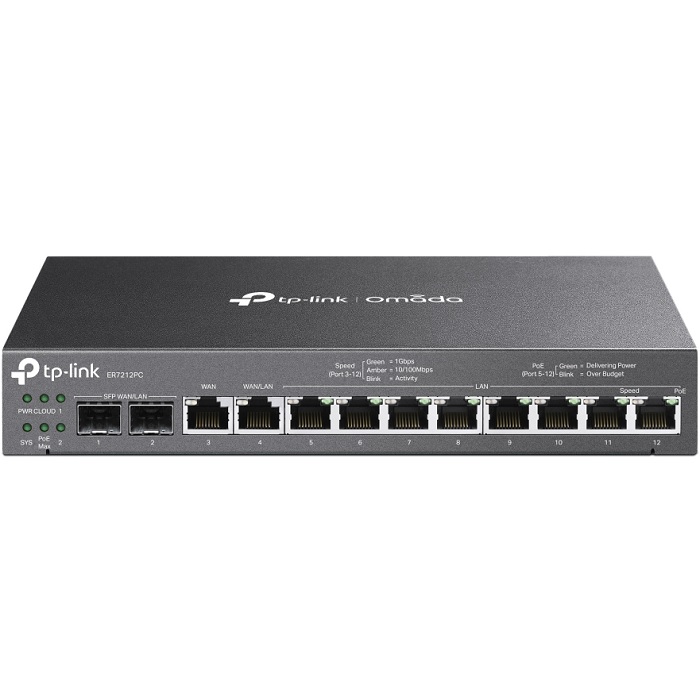

| LED |
PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |

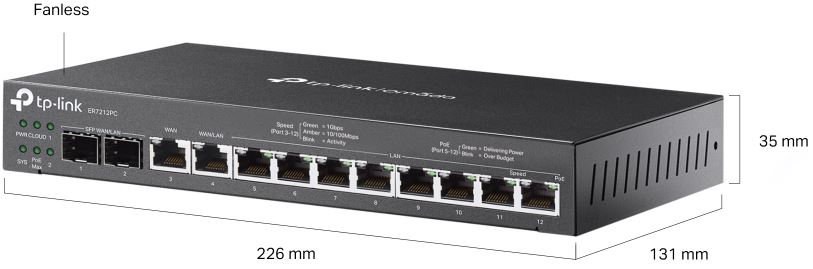

| Dimensions (W x D x H) |
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection |
4 kV surge protection |
| Enclosure |
Steel |

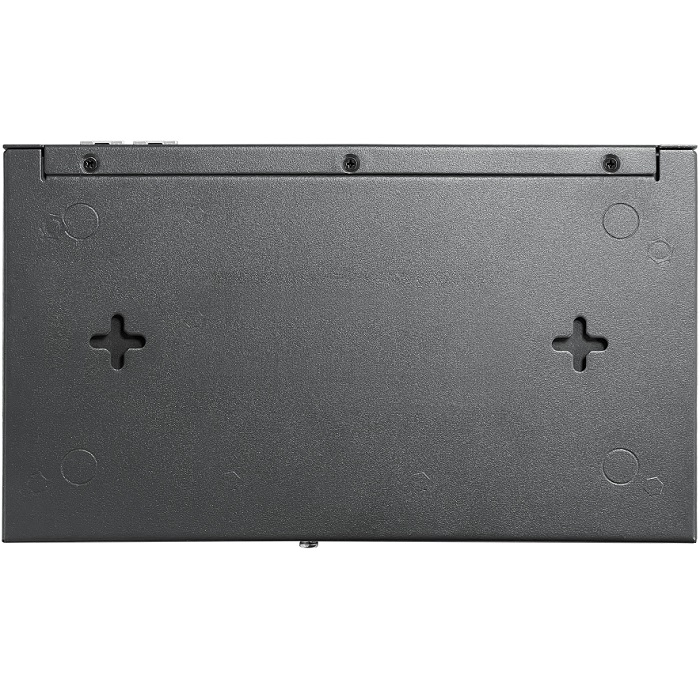

| Mounting |
Desktop/Wall-mount |
| Max Power Consumption |
133.2W with PoE Max |
| 13.88W without PoE |
| PERFORMANCE |
| Concurrent Session |
24,980 |
| New Sessions/Second |
1,900 |
| NAT (Static IP) |
935.5 Mbps / 942.1 Mbps |
| NAT(DHCP) |
940.2 Mbps / 941.7 Mbps |
| NAT(PPPoE) |
913.1 Mbps / 935.2 Mbps |
| NAT (L2TP) |
545.0 Mbps / 912.7 Mbps |
| NAT (PPTP) |
523.0 Mbps / 912.8 Mbps |
| IPsec VPN Throughput (AES256) |
168.5 Mbps |
| IPsec VPN Throughput |
AES256: 168.5 Mbps |
| OpenVPN |
34 Mbps |
| L2TP VPN Throughput |
Unencrypted: 845.3 Mbps |
| Encrypted: 333.2 Mbps |
| PPTP VPN Throughput |
Unencrypted: 1012.6 Mbps |
| Encrypted: 401.4 Mbps |
| 66 Byte Packet forwarding rate |
154,069 pps / 156,977 pps |
| 1,518 Byte Packet forwarding rate |
81,193 pps / 81,193 pps |
| BASIC FUNCTIONS |
| WAN Connection Type |
Static IP |
| Dynamic IP |
| PPPoE |
| PPTP |
| L2TP |
| MAC Clone |
Modify WAN MAC Address |
| DHCP |
DHCP Server |
| DHCP Address Reservation |
| Multi-IP Interfaces |
| Multi-Net DHCP |
| IPv6 |
Support |
| VLAN |
802.1Q VLAN |
| IPTV |
IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS |
| ACL |
IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing |
Static Routing |
| Policy Routing |
| Bandwidth Control |
IP/Port-based Bandwidth Control |
| Load Balance |
Intelligent Load Balance |
| Application Optimized Routing |
| Link Backup |
| Online Detection |
| NAT |
Multi-Net NAT |
| Virtual Server |
| NAT-DMZ |
| FTP/H.323/SIP/IPSec/PPTP ALG |
| UPnP |
| Session Limit |
IP-based Session Limit |
| VPN |
| IPsec VPN |
20 IPSec VPN Tunnels |
| LAN-to-LAN, Client-to-LAN |
| Main, Aggressive Negotiation Mode |
| AES128, AES192, AES256 Encryption Algorithm |
| IKE v1/v2 |
| SHA1, SHA2 Authentication Algorithm |
| NAT Traversal (NAT-T) |
| Dead Peer Detection (DPD) |
| Perfect Forward Secrecy (PFS) |
| PPTP VPN |
PPTP VPN Server |
| PPTP VPN Client (10) |
| 16 Tunnels |
| PPTP with MPPE Encryption |
| L2TP VPN |
L2TP VPN Server |
| L2TP VPN Client (10) |
| 16 Tunnels |
| L2TP over IPSec |
| OpenVPN |
OpenVPN Server |
| OpenVPN Client (10)§ |
| 16 OpenVPN Tunnels |
| AUTHENTICATION |
| Web Authentication |
No Authentication |
| Simple Password |
| Hotspot (Local User / Voucher / SMS / Radius) |
| External Radius Sever |
| External Portal Sever |
| MANAGEMENT |
| Omada App |
Yes |
| Centralized Management |
Management of up to 2 Omada switches, and 10 Omada access points |
| Cloud Access |
Yes |
| Service |
Dynamic DNS (Dyndns, No-IP) |
| Maintenance |
Web Management Interface |
| Remote Management |
| Export & Import Configuration |
| SNMP v1/v2c/v3 |
| Syslog Support |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features |
Automatic Device Discovery |
| Intelligent Network Monitoring |
| Abnormal Event Warnings |
| Unified Configuration |
| Reboot Schedule |
| Captive Portal Configuration |
| Management of up to 2 Omada switches and 10 Omada access points |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
ER7212PC |
| Power Adapter |
| Power Cord |
| Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 |
| MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity: 10% to 90% non-condensing |
| Storage Humidity: 5% to 90% non-condensing |
