| HARDWARE FEATURES |
| Interface |

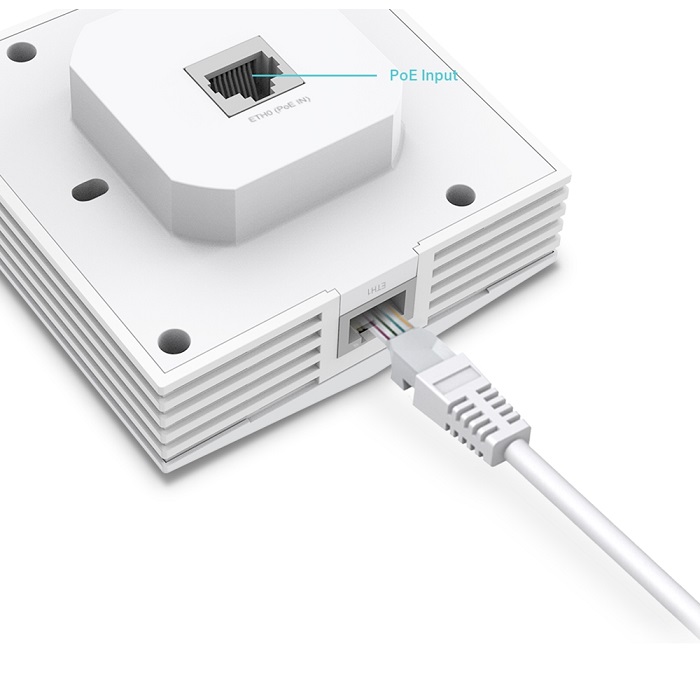

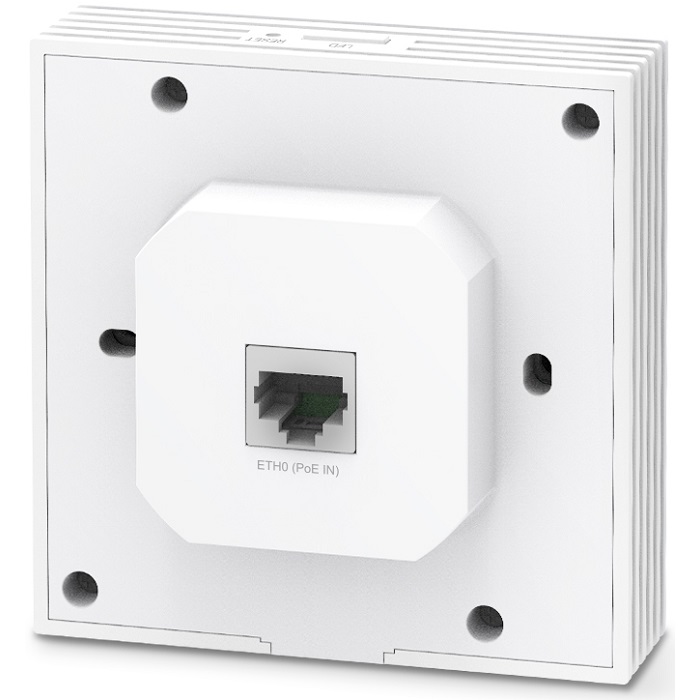

Uplink: 1× 10/100/1000 Mbps Ethernet Port
Downlink: 1× 10/100/1000 Mbps Ethernet Port |
| Physical Security Lock |
No |
| Button |
Reset, LED |
| Power Supply |
802.3af/at PoE |
| Power Consumption |
EU: 11.5 W |

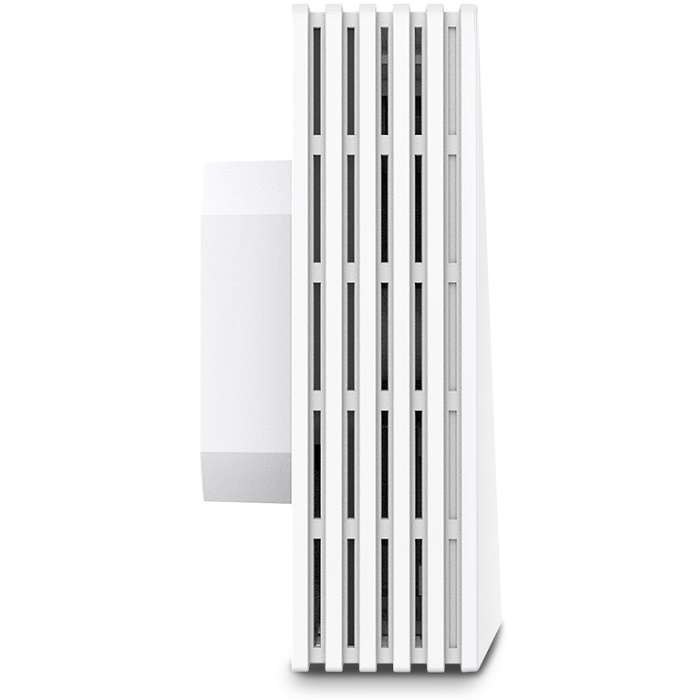

| Dimensions |
86 × 86 × 42.6 mm (3.4 × 3.4 × 1.7 in) |
| Antenna |
2 Dual-Band Antennas
2.4 GHz: 2× 3 dBi
5 GHz: 2× 5 dBi |

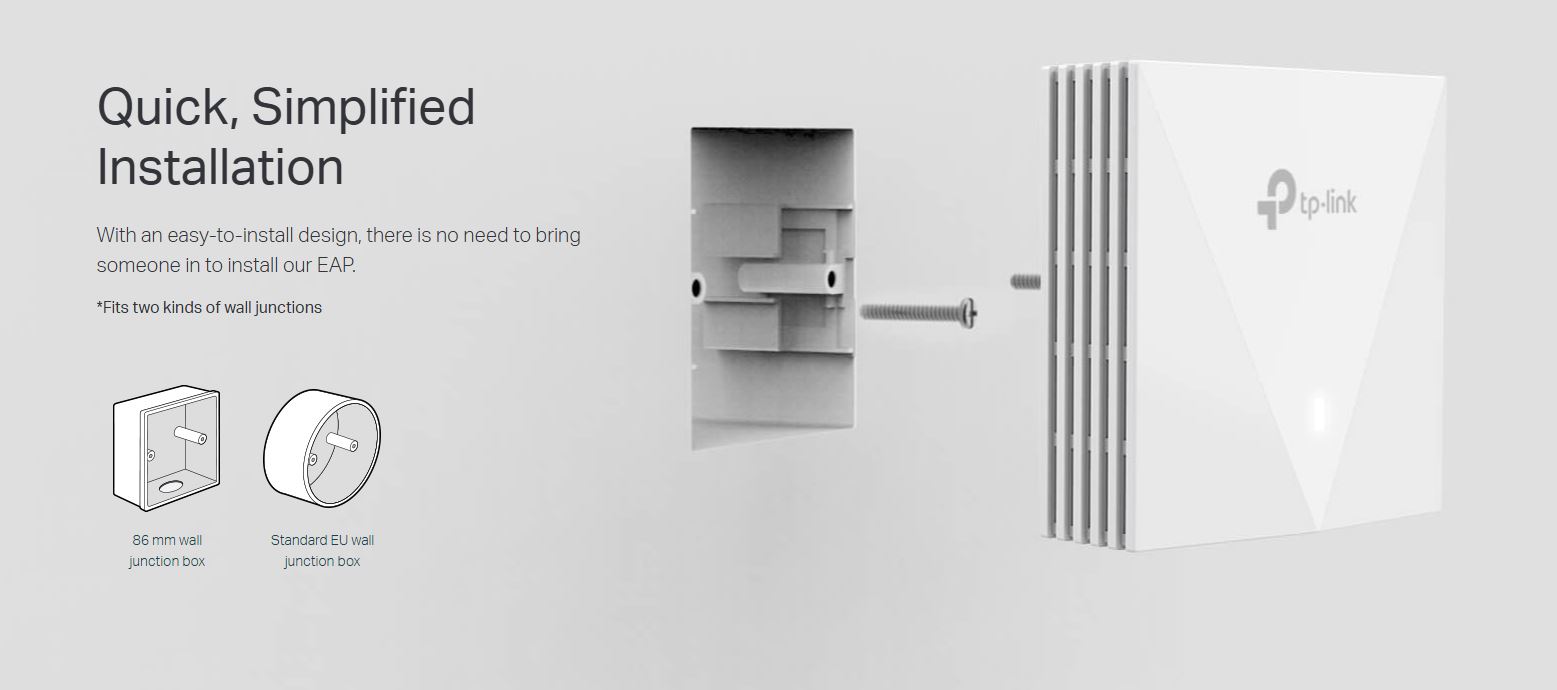

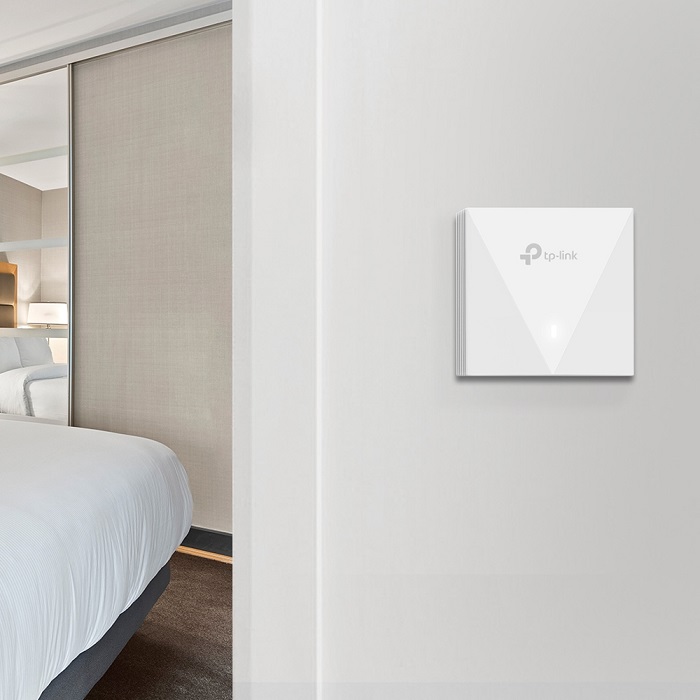

| Mounting |
Wall Plate Mounting (Kits included) |
| WIRELESS FEATURES |
| Coverage |
40㎡ (450 ft²)*** |
| Maximum Number of Wireless Clients |
100+** |
| Concurrent Clients |
100+ |
| Wireless Standards |
IEEE 802.11ax/ac/n/g/b/a |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps |
| Wireless Functions |
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
Seamless Roaming§
Beamforming
Rate Limit
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP |
| Wireless Security |
Captive Portal Authentication§
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power |
CE:
< 20 dBm (2.4 GHz, EIRP)
< 22 dBm (5 GHz band 1 & 2, EIRP)
< 22 dBm (5 GHz band 3, EIRP) |
| MANAGEMENT |
| Omada App |
Yes |

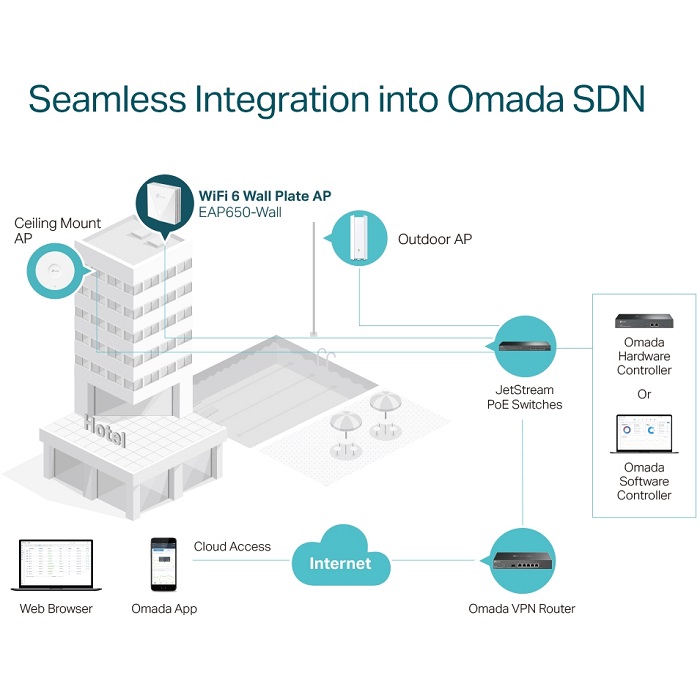

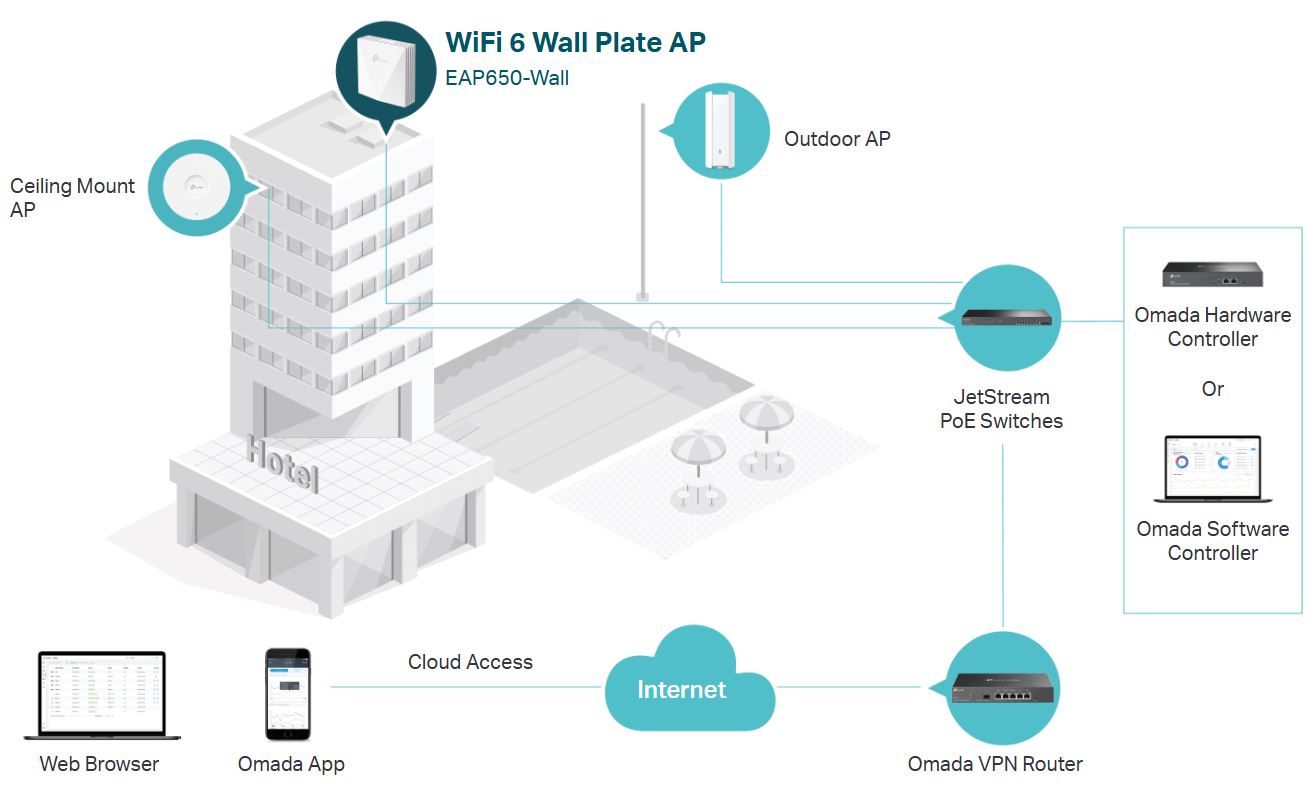

| Centralized Management |
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller |
| Cloud Access |
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c, v3 |
| System Logging Local/Remote Syslog |
Local/Remote Syslog |
| SSH |
Yes |
| Web-based Management |
HTTP/HTTPS |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS |
| Certification |
CE, RoHS |
| Package Contents |
AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall
Installation Guide
Mounting Kits |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Environment |
Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing |
