| Hardware Features |
|
| Interface |

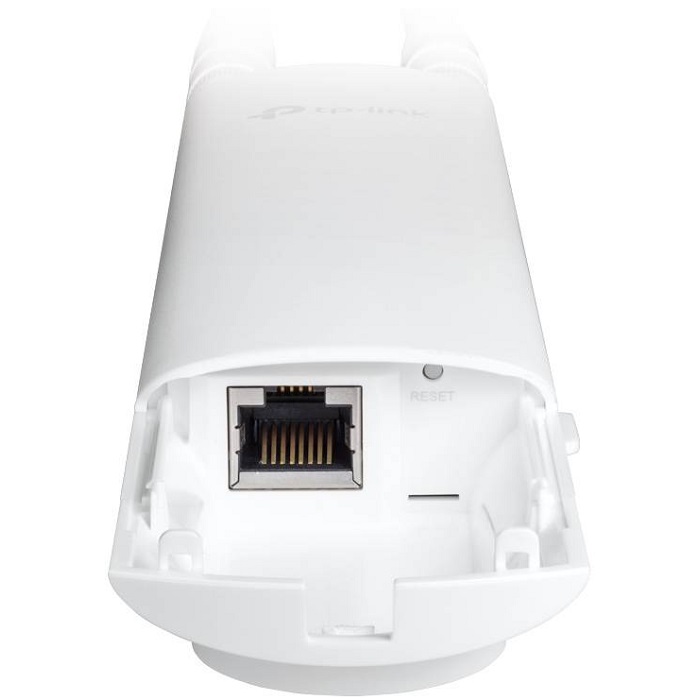

1x Gigabit Ethernet RJ-45 port |
| Button |
Reset |
| Power Supply |
802.3af PoE and 24V Passive PoE (PoE injector included) |
| Power Consumption |
10.5W |
| Dimensions (W x D x H) |
8.5 × 1.8 × 1.1 in. (215 × 46 × 27 mm) |
| Antenna |
2.4GHz: 2 × 3dBi, 5GHz: 2 × 4dBi |
| Weatherproof Enclosure |
IP65 |
| Mounting |
Pole/Wall mount (mounting kit included) |
| Wireless Features |
|
| Wireless Client Capacity |
220+** |
| Concurrent Clients |
220+** |
| Wireless Standards |
IEEE 802.11a/b/g/n/ac |
| Frequency |
2.4GHz, 5GHz |
| Signal Rate |
802.11ac: 5G: 6.5 Mbps to 867 Mbps |
| 2.4G: 78 Mbps to 300 Mbps |
| 802.11n: 6.5 Mbps to 300 Mbps |
| 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b: 1, 5.5, 11 Mbps |
| 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band) |
| Enable/Disable Wireless Radio |
| Automatic Channel Assignment |
| Transmit Power Control (Adjust Transmit Power on dBm) |
| QoS (WMM) |
| MU-MIMO |
| Airtime Fairness |
| Beamforming |
| Band Steering |
| Load Balance |
| Rate Limit |
| Reboot Schedule |
| Wireless Schedule |
| Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication |
| Access Control |
| Wireless Mac Address Filtering |
| Wireless Isolation Between Clients |
| SSID to VLAN Mapping |
| Rogue AP Detection |
| 802.1X Support |
| Transmission Power |
CE: <20 dBm (2.4 GHz, EIRP), <27 dBm (5 GHz, EIRP) |
| FCC: <23 dBm (2.4 GHz), <22 dBm (5 GHz) |
| Management |
|
| Omada App |
Yes |
| Centralized Management |
Omada Cloud-Based Controller |
| Omada Hardware Controller (OC300, OC200) |
| Omada Software Controller |
| Omada Controller Software |
Yes |
| Cloud Access |
Yes. Requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller |
| Email Alerts |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c |
| System Logging (Local/Remote) |
Yes |
| SSH |
Yes |
| Web-based Management |
Yes |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| Zero-Touch Provisioning |
Yes. Requires Omada Cloud-Based Controller |
| Others |
|
| Certification |
FCC, RoHS |

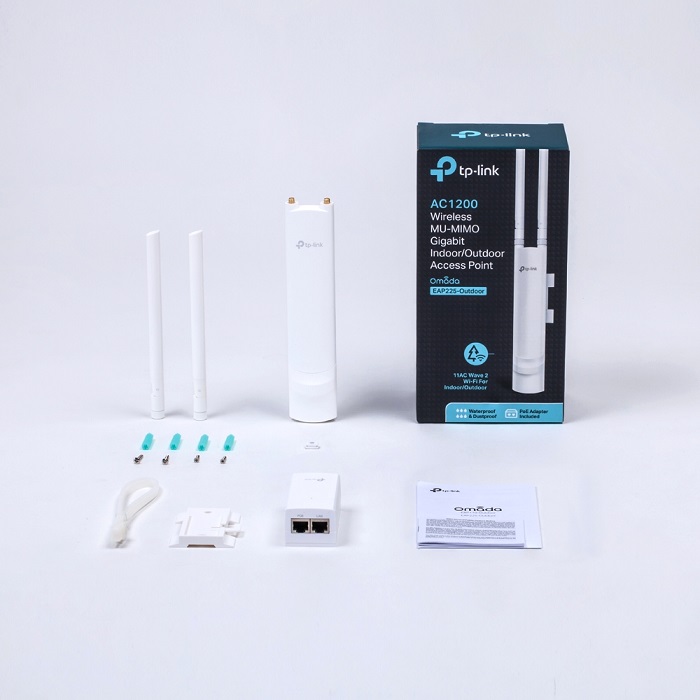

| Package Contents |
AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point |
| Passive PoE Injector |
| Power Cord |
| Mounting Kits |
| Installation Guide |
| Waterproof Rubber Insert |
| Waterproof Antenna |
| System Requirements |
Microsoft Windows XP, Vista, 7, 8, 10, 11, Linux |
| Environment |
Operating Temperature: -30℃~70℃ (-22℉~158℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
