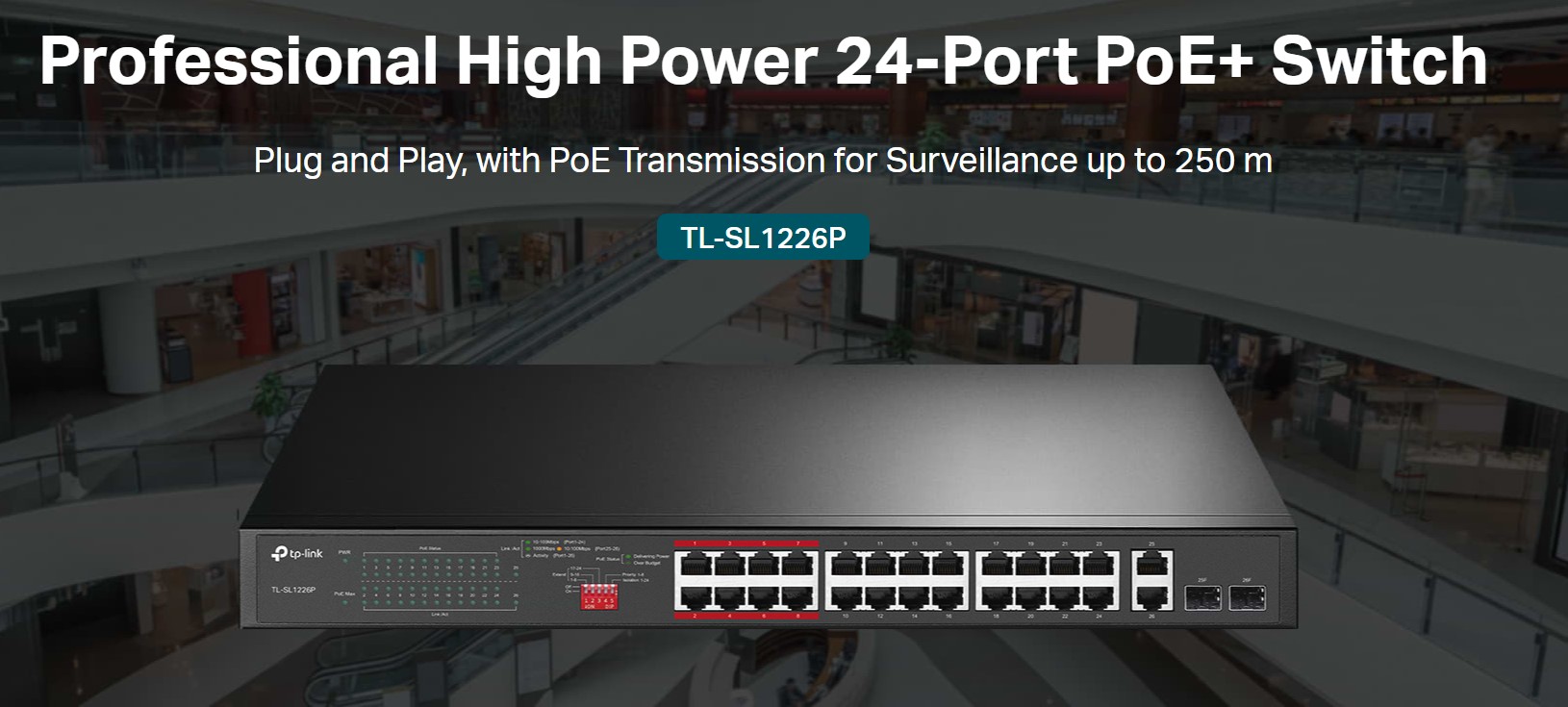

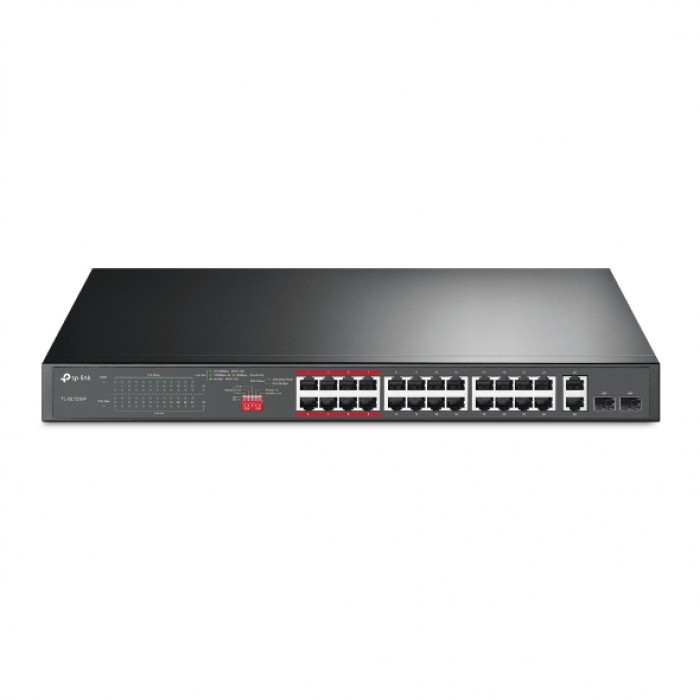

TP-Link TL-SL1226P 24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+
TP-Link TL-SL1226P 24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+
AED 609
TP-Link TL-SL1226P 24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+
TP-Link
AED 609 inclusive of VAT

TP-Link TL-SL1226P 24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+

  • Model:  TL-SL1226P
  • SKU:                   200773
  • Condition:        New
  • Availability:      In Stock
About this Item
  • Brand: TP-Link
  • Ports: 24× PoE+ 10/100 Mbps RJ45 Ports
    2× 10/100/1000 Mbps RJ45 Ports
    2× Combo Gigabit SFP Slots
  • Fan Quantity: 2
  • Switching Capacity: 8.8 Gbps
AED 609 inclusive of VAT
Pay 4 interest-free payments of AED 152.25 , no interest/fees. Learn more
  • 1 year hassle free warranty claims
  • Delivery time is next working day, You can connect to support team to get exact delivery time.
Description - TP-Link TL-SL1226P 24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+

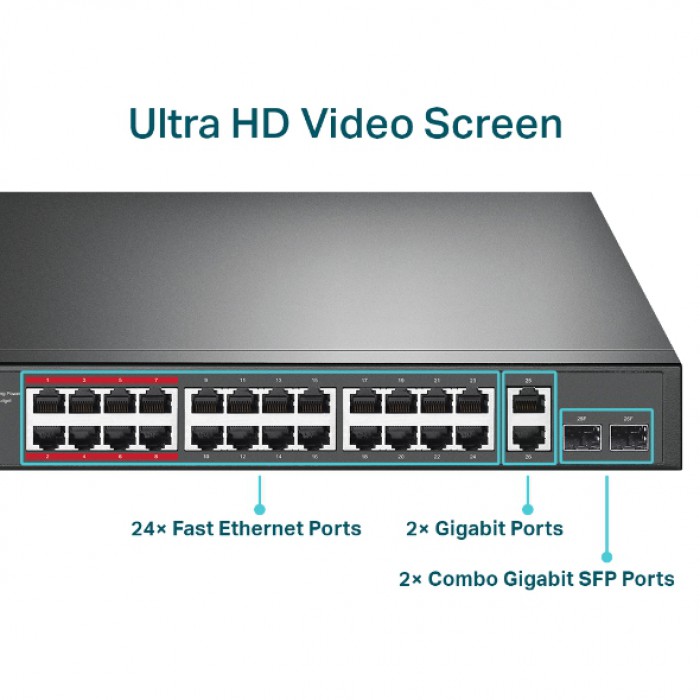

  • 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
  • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*

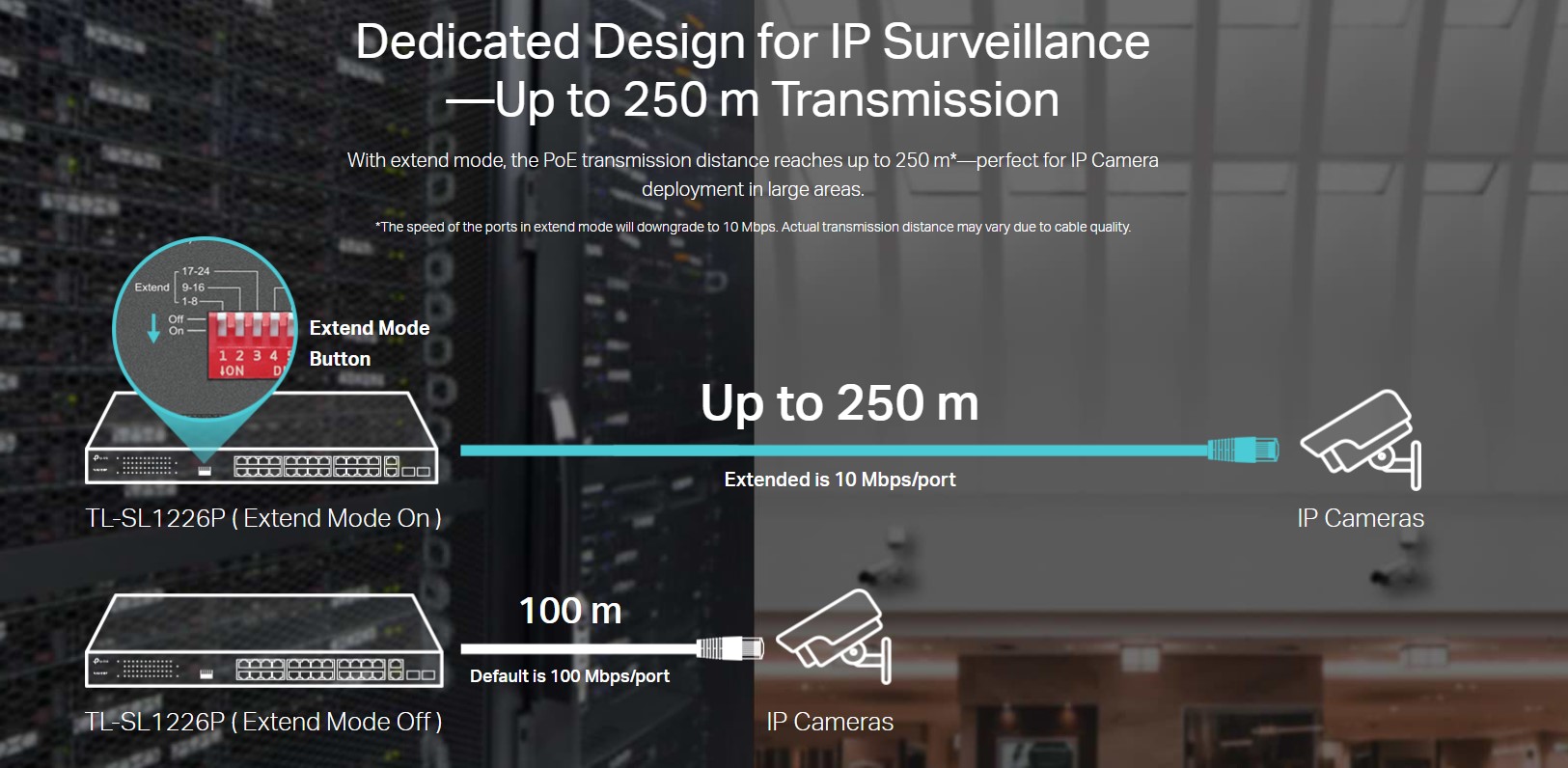

  • Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system
  • Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Plug and play, with no configuration and installation needed

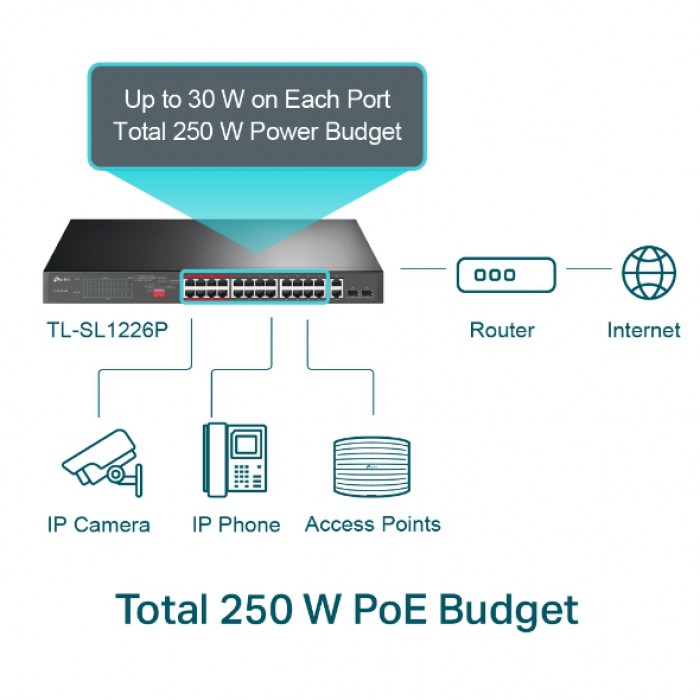

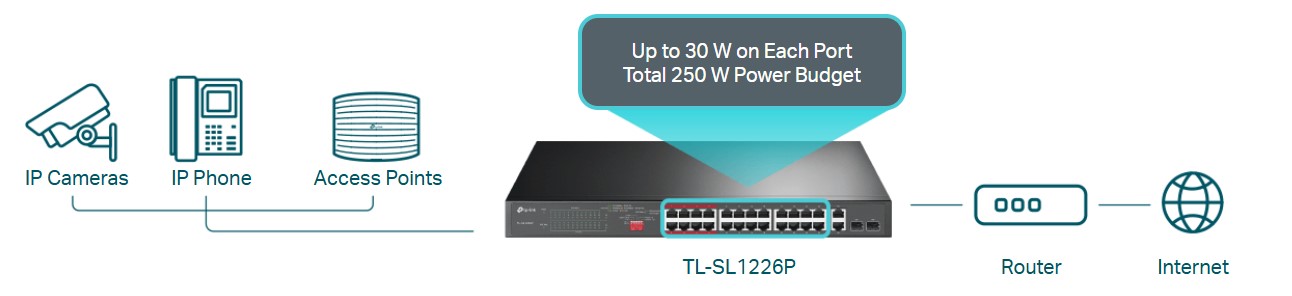

Dedicated 24-Port PoE+ Switch for
Wide Range of Applications with 250 W PoE Budget

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.




Dedicated Design for IP Surveillance—Higher Performance and Security Priority Mode and Isolation Mode make surveillance smoother and safer.

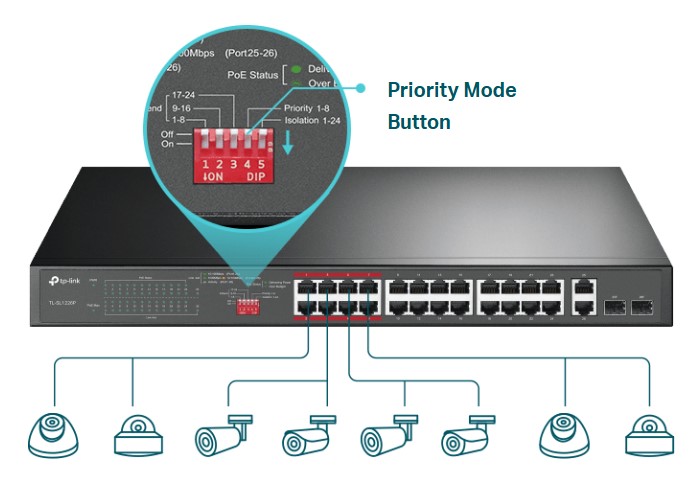

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.

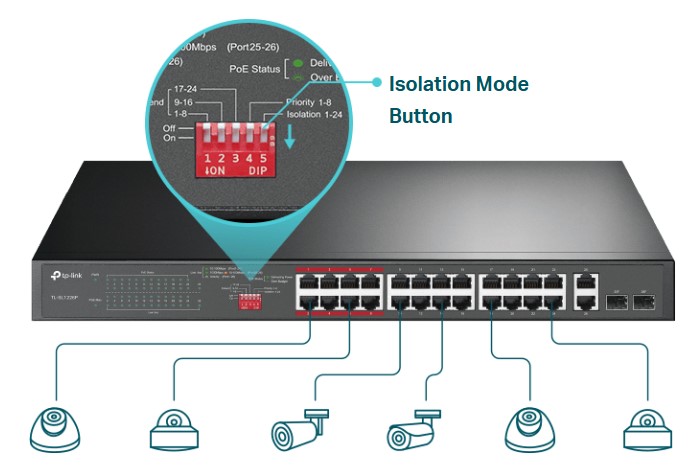

One-Click Traffic Separation for Ports 1-24

With one click, Isolation Mode easily divides traffic for ports 1–24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Specification

HARDWARE FEATURES
Interface
  • 24× PoE+ 10/100 Mbps RJ45 Ports
  • 2× 10/100/1000 Mbps RJ45 Ports
  • 2× Combo Gigabit SFP Slots
    		•
    Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
    		•
    Fan Quantity 2 Fans
    Physical Security Lock Yes
    Power Supply 100-240 VAC, 50/60 Hz
    Packet Forwarding Rate 6.5472 Mpps
    PoE+ Ports(RJ45)
  • Standard: 802.3at/802.3af compliant
  • PoE Ports: Port 1 – Port 24
  • PoE Power Budget: 250 W
    • Mac Address Table 8 K
    Jumbo Frame 10 KB
    Switching Capacity 8.8 Gbps
    Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
    Max Power Consumption 18.32 W (220/50 Hz. no PD connected)
    294 W (220/50 Hz. with 250 W PD connected)
    Max Heat Dissipation 62.47 BTU/h (no PD connected)
    1002.54 BTU/h (with 250 W PD connected)
    SOFTWARE FEATURES
    Advanced Features
  • Compatible With IEEE 802.3at/af Compliant PDs
  • Extend Mode (Up to 250m PoE power supply and data transmission)
  • Priority Mode
  • Isolation Mode
  • PD Detection
  • Intelligent Power Supply
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control
    		•
    Transmission Method Store-And-Forward
    Read more
    Specification - TP-Link TL-SL1226P 24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+
    Shipping Information
    Varsai SKU 200773
    Brand TP-Link
    Model TL-SL1226P
    Warranty 1 Year   Hassle free warranty claims
    Shipping Weight 3.00000000 kg
    Shipping Dimensions 24.99000000 cm x 52.80000000 cm x 8.00000000 cm
