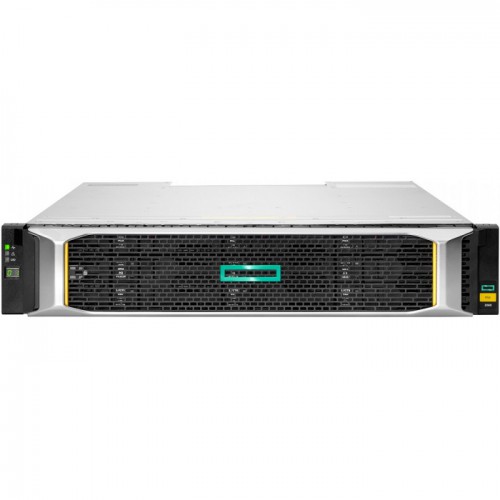

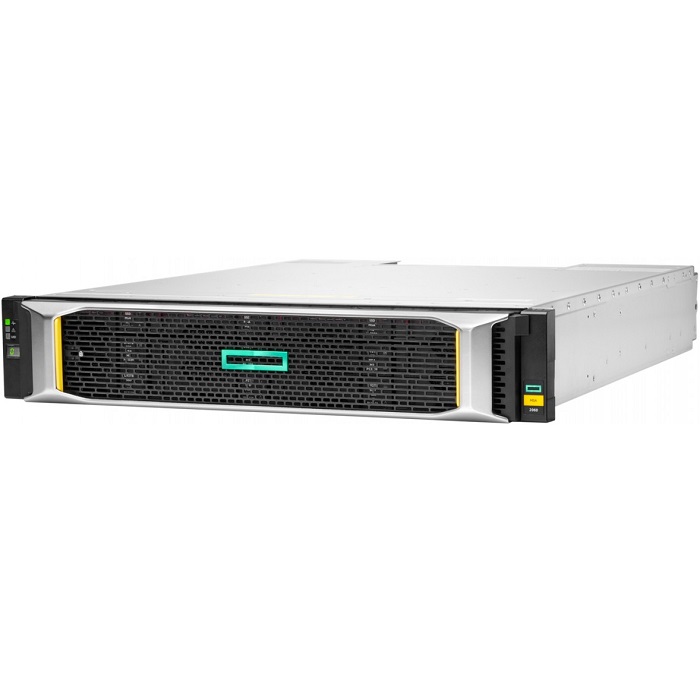

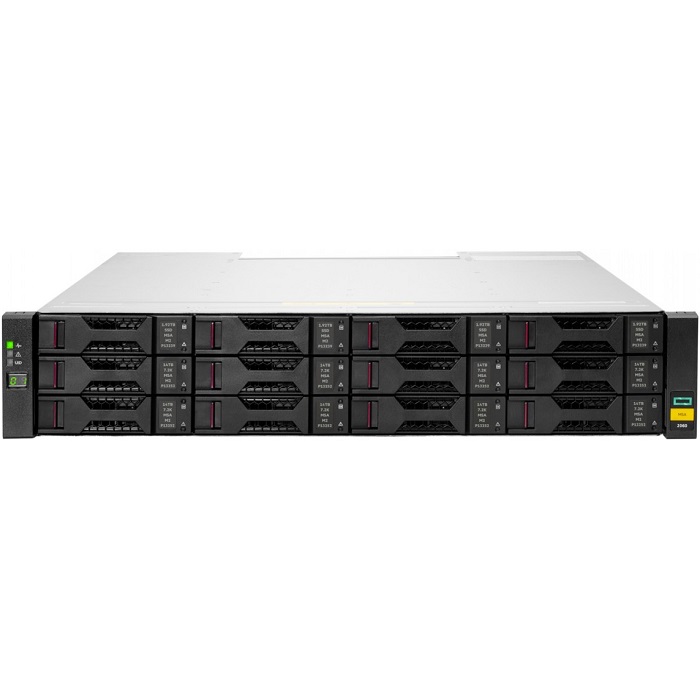

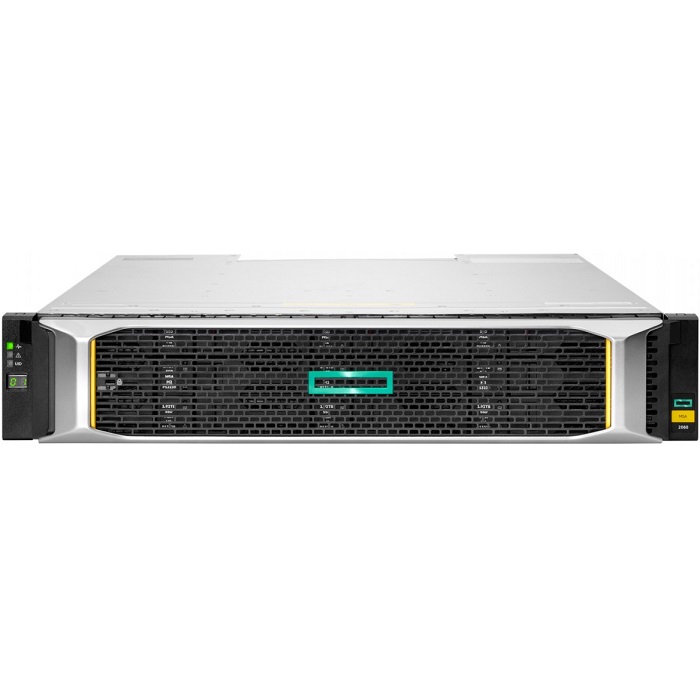

Hpe Msa 2060 16Gb Fibre Channel LFF Storage R0Q73B

Drive descriptionUp to 12 LFF HDD and/or SSD per array model

Capacity1898.88 TB with SFF expansion / 2400 TB with LFF expansion (with maximum expansion)

Storage expansion options24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9)

Host interface8-ports 16 Gb FC, 4 ports per controller

Storage controller2 per array, 4-ports each (8-ports total)

SAN backup supportYes

Storage mirroring supportNo

Systems Insight Manager supportNo

Compatible operating systemsWindows Server 2022
Windows Server 2019
Windows Server 2016
VMWare vSphere 6.7
Red Hat Linux 8
SuSE SLES 15

Clustering supportYes

Form factor2U

Energy efficiencyEnergy Star Compliant

Weight5 kg (11 lb)

Dimensions8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in)

Host connectivity16 Gb Fibre Channel, 10/25 GbE iSCSI, 10GBase-T iSCSI, or 12 Gb SAS; depending on model

Detailed product descriptionHPE MSA 2060 Large Form Factor chassis with (2) 4-port 16 Gb Fibre Channel Controllers

WarrantyThree-year limited warranty, parts exchange next business day delivery.

Disk enclosures, hard drives and options for the HPE MSA 2060 carry their own warranty.
