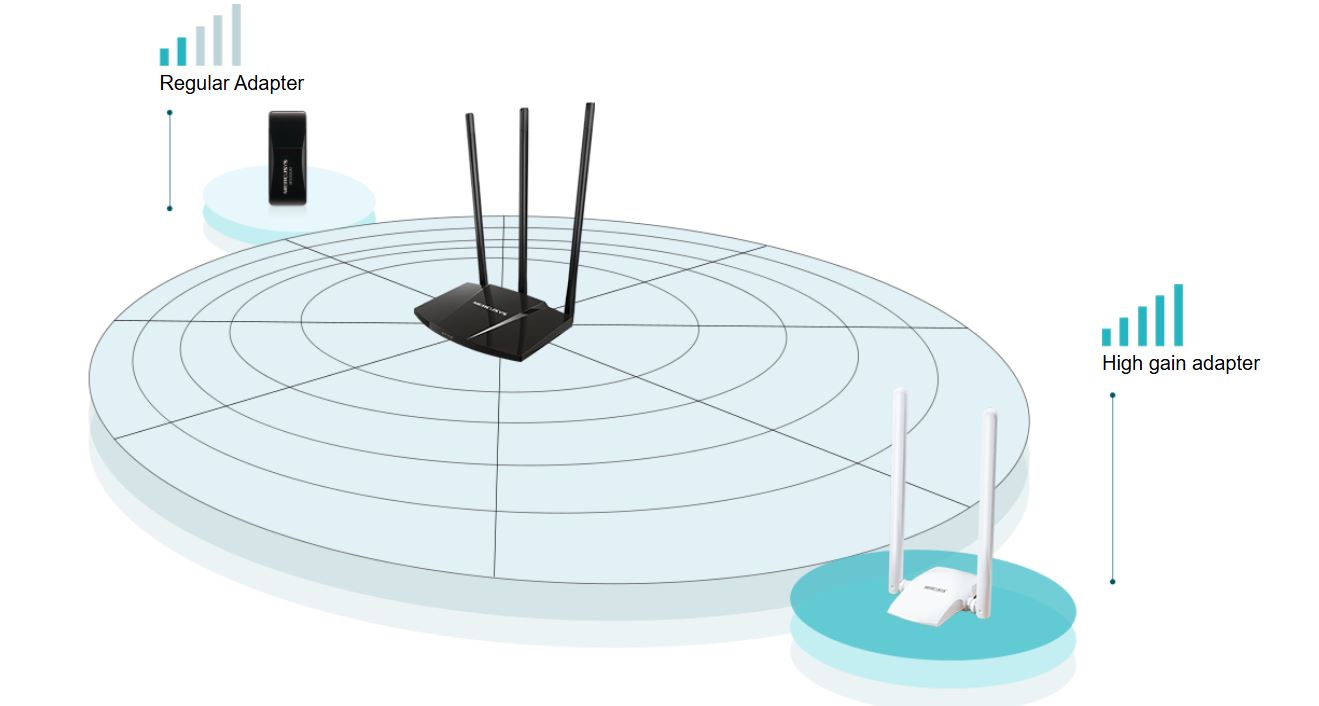

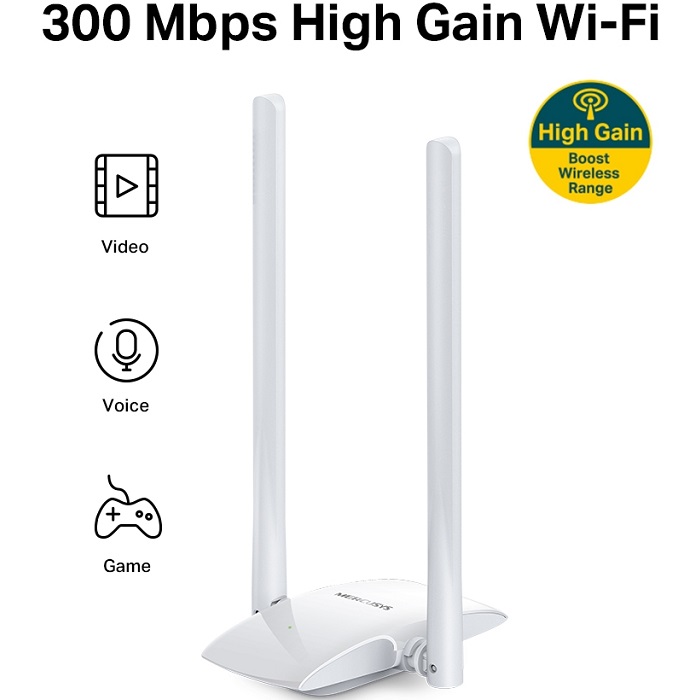

Two High Gain 5dBi Antennas Leads to Maximized Range
MW300UH has two high-gain external antennas to ensure stronger signal transmission and reception, which helps users to gain a stable Wi-Fi
connection across their home.
Specification
| Wireless |
|---|
| Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
|
| Frequency |
2.400 - 2.4835 GHz
|
| WiFi Speeds |
11n: Up to 300 Mbps (Dynamic)
11g: Up to 54 Mbps (Dynamic)
11b: Up to 11 Mbps (Dynamic)
|
| Reception Sensitivity |
300M: -68 dBm@10% PER
270M: -68 dBm@10% PER
144M: -71 dBm@10% PER
130M: -71 dBm@10% PER
54M: -74 dBm@10% PER
11M: -86 dBm@8% PER
6M: -90 dBm@10% PER
1M: -94 dBm@8% PER
|
| Transmission Power |
≤20 dBm (EIRP)
|
| Wireless Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
|
| Hardware |
|---|
| Dimensions |
4.46 × 2.51 × 0.85 in. (without antennas)
4.46 × 3.96 × 7.92 in. (with vertical antennas)
113.2 × 63.8 × 21.7 mm (without antennas)
113.2 × 100.5 × 201.1 mm(with vertical antennas)
|
| Interfaces |
Micro USB 2.0
|
| Antenna Type |
External
|
| Others |
|---|
| Certifications |
CE, ROHS
|

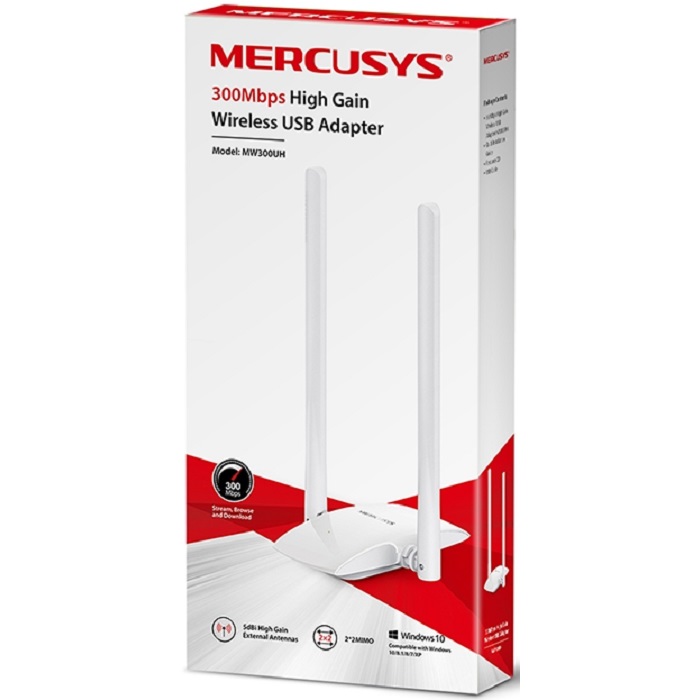

| Package Contents |
300 Mbps High Gain Wireless USB Adapter (MW300UH)
Quick Installation Guide
Resource CD
USB Cable (Micro USB to USB A)
|
| Environment |
Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90% Non-Condensing
Storage humidity: 5% ~ 90% Non-Condensing
|

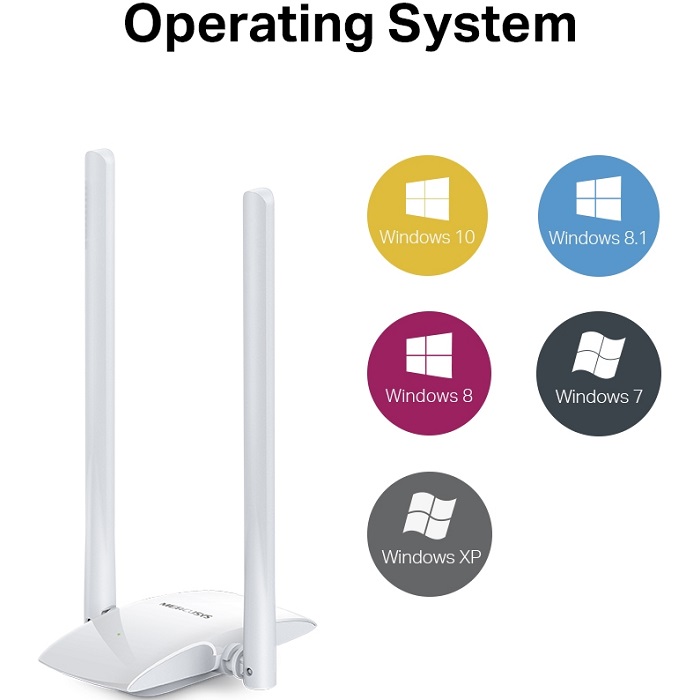

| System Requirements |
Windows 10/8.1/8/7/XP (32/64 bit)
|
|
