- Next-Gen WiFi 6 Speeds – Optimal WiFi 6 speeds reaching up to 1.8 Gbps (1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band)
- 4× More Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
- Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- Overall Security Protection – The latest WPA3 provides improved WiFi security
- Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- Eco-Friendly Power Saving – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
- Smart Connect – Intelligently chooses the best available band for each device
- Access Point Mode – Extends a wired network and makes it wireless

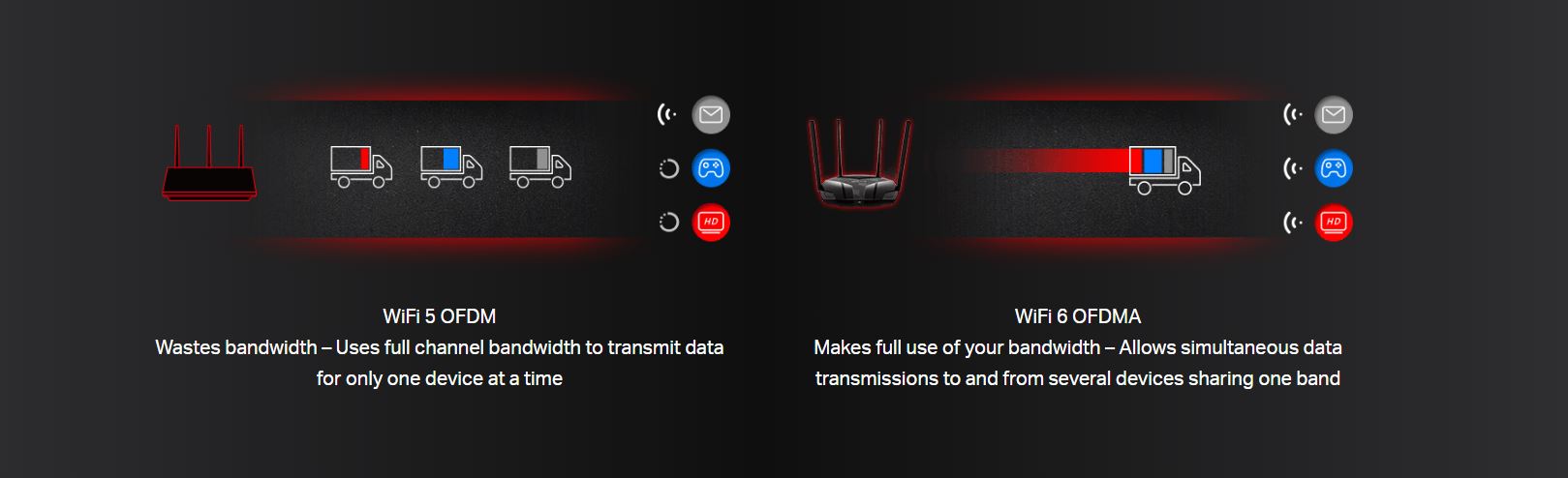

4× More Capacity
More Streams, More Devices, More Fun
WiFi 6 also improves network capacity to better address the increased demand on home networks. With MU-MIMO and OFDMA, MR70X transmits data
to and from multiple devices at the same time, reaching up to 4× more capacity, greatly increasing your devices’ transmission efficiency and the
throughput of your whole network under the same conditions.

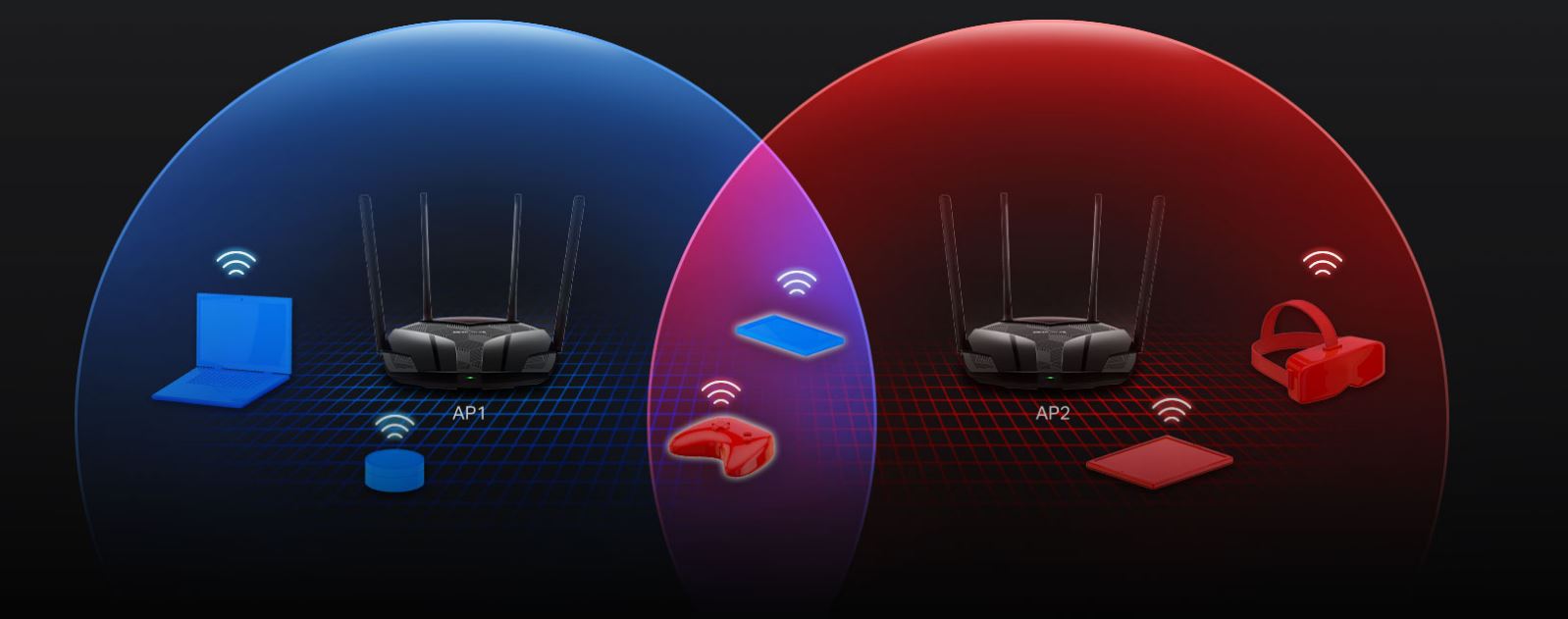

Less WiFi Interference
BSS Color marks the data frames from different APs which helps minimize the signal interference from
your neighbors to improve transmission efficiency.
Specification
| Wireless |
|---|
| Wireless Standards |
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
|
| WiFi Speeds |
1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
|
| Reception Sensitivity |
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps:-94dBm
11a 54Mbps:-76dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS8:-68dBm
11ac VHT80 MCS8:-65dBm
|
| Transmission Power |
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
|
| Wireless Security |
WPA-PSK / WPA2-PSK/ WPA3 wireless encryption
|
| Wireless Functions |
Enable/Disable Wireless Radio, WMM
|
| Software |
|---|
| WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
|
| Management |
Access Control
Local Management
Remote Management
|
| DHCP |
Server, DHCP Client List
|
| NAT Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ
|
| Firewall Security |
SPI Firewall, IP and MAC Address Binding
|
| Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network
|
| VPN Passthrough |
OpenVPN, PPTP supported
|
| Hardware |
|---|
| Dimensions |
8.2 × 6.8 × 1.6 in (208.8 × 171.6 × 41.7 mm)
|

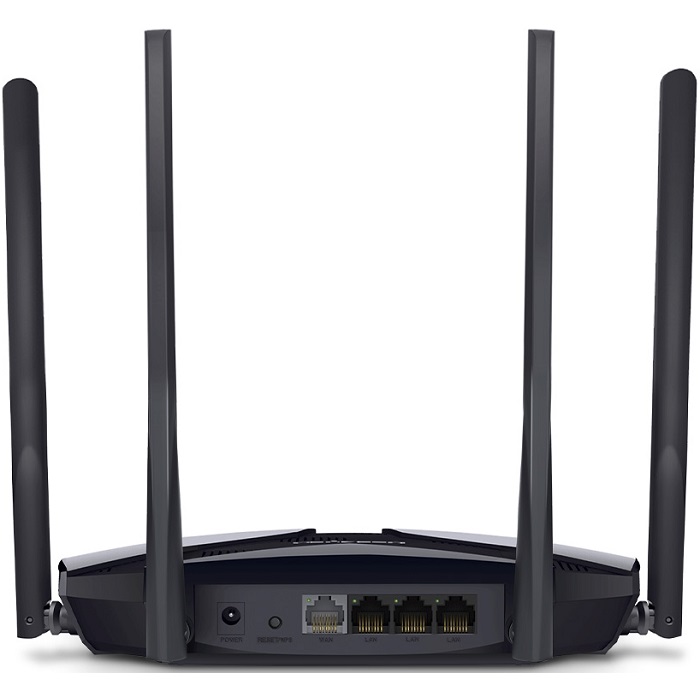

| Interfaces |
1× Gigabit WAN Port + 3× Gigabit LAN Ports
|
| Button |
Reset/WPS Button
|
| Antenna Type |
4× 5 dBi Fixed Omni-Directional Antennas
|
| Others |
|---|
| Package Contents |
• AX1800 Wi-Fi 6 Router MR70X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
|
| Environment |
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
|
|
