- Dual Band Speeds up to 3000 Mbps – 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.†
- Armed with WiFi 6 – Improves virtually every aspect of your network: speed, efficiency, and capacity.
- Gigabit Wired Connection – Provides speedy wired connections for PCS, IPTVS.and game consoles.
- Works with Any Routers – To Extend WiFi to Where You Need It Most.‡
- Easy One-Touch Setup – Press the WPS button to expand your Wi-Fi coverage in seconds.
- Built-In Access Point Mode – Works as RE mode and AP mode.
- Manage Your Network with App - Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.
Maximize your Wi-Fi Coverage
300Mbps High Power Wireless N Router

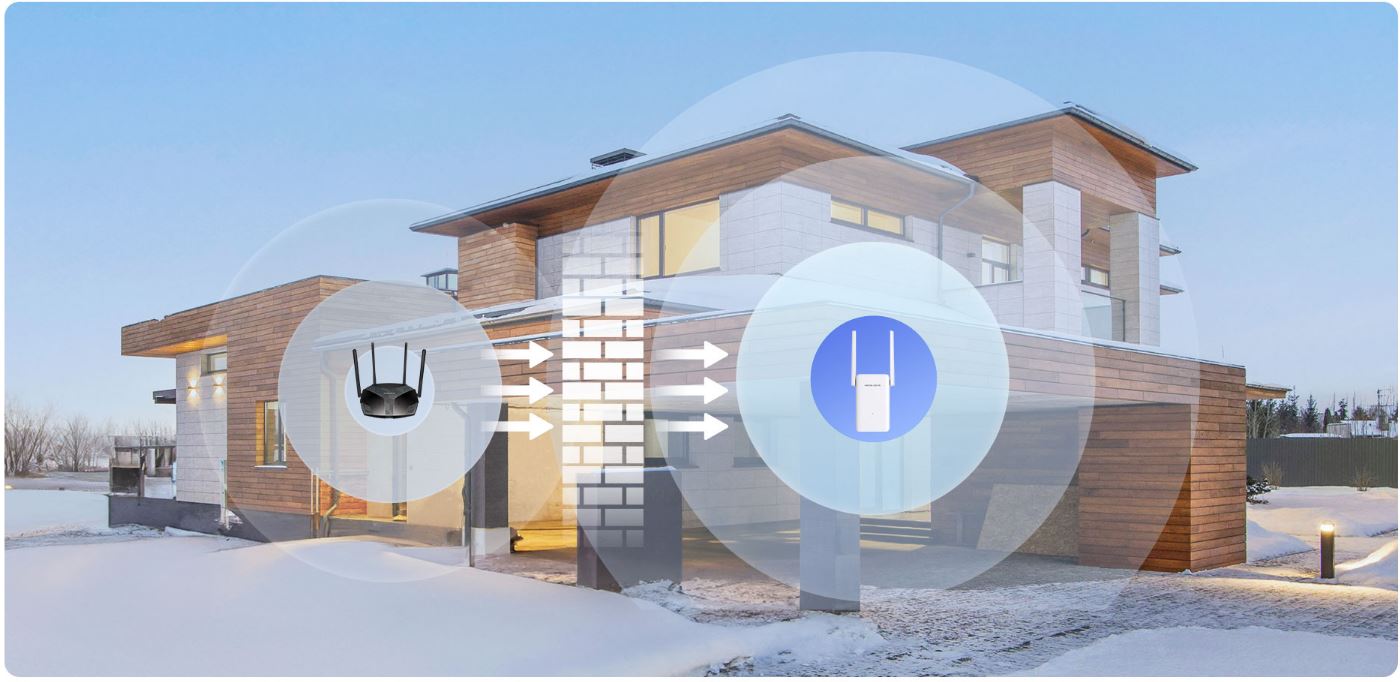

Extend WiFi to Where You Need It Most
Extend your router’s coverage. This AX3000 range extender, with two adjustable high-gain antennas, boosts WiFi to hard-to-reach areas and is
compatible with older WiFi standards (11b/g/n/a/ac) and all connected devices.

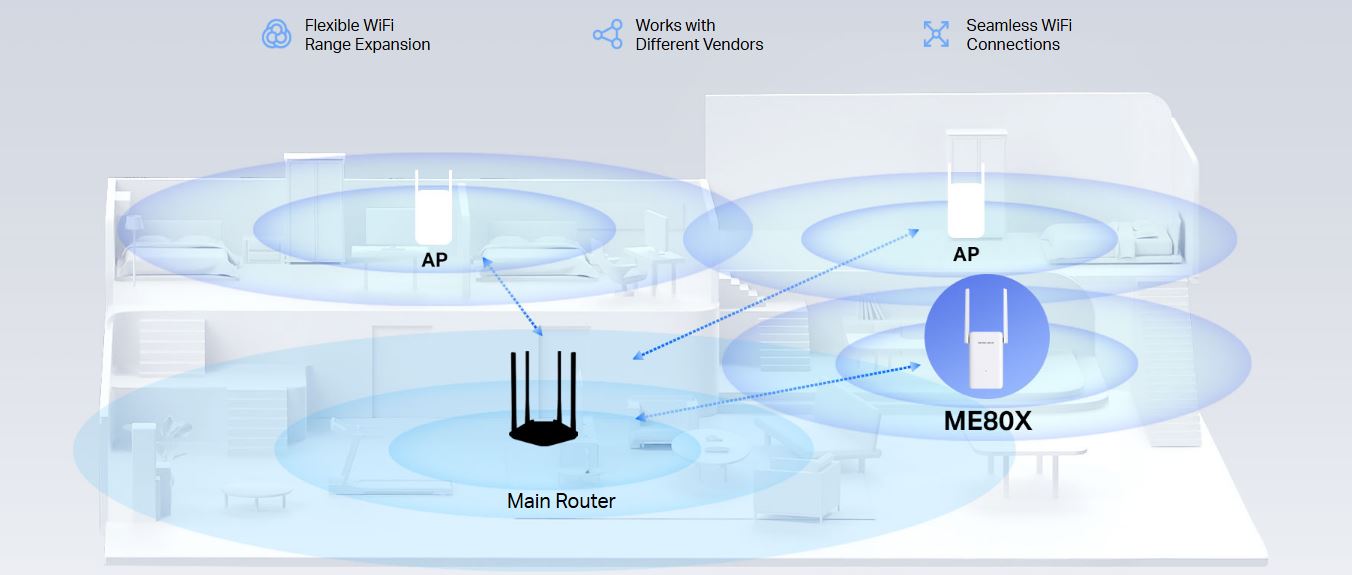

Cover Your Whole Home with EasyMesh
ME80X is compatible with EasyMesh, enabling you to set up a whole home mesh network with one WiFi name and password with any other APs that support
EasyMesh from multiple vendors. Enjoy flexible, scalable, and seamless mesh WiFi throughout your home!
Specification
| Wireless |
|---|
| Wireless Standards |
IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
|
| Frequency |
2.4GHz and 5GHz
|
| WiFi Speeds |
574 Mbps at 2.4GHz, 2402 Mbps at 5GHz
|
| Reception Sensitivity |
5GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ax HE20 MCS0: -96dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm
11ax HE80 MCS0: -90dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS11: -58dBm
2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11ax HE20 MCS0: -96dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm
|
| Wireless Security |
WEP, WPA, WPA2, WPA3-PSK
|
| Hardware |
|---|
| Dimensions |
138.6 × 100.3 × 68.4 mm
|
| Interfaces |
1 Gigabit Ethernet Port
|

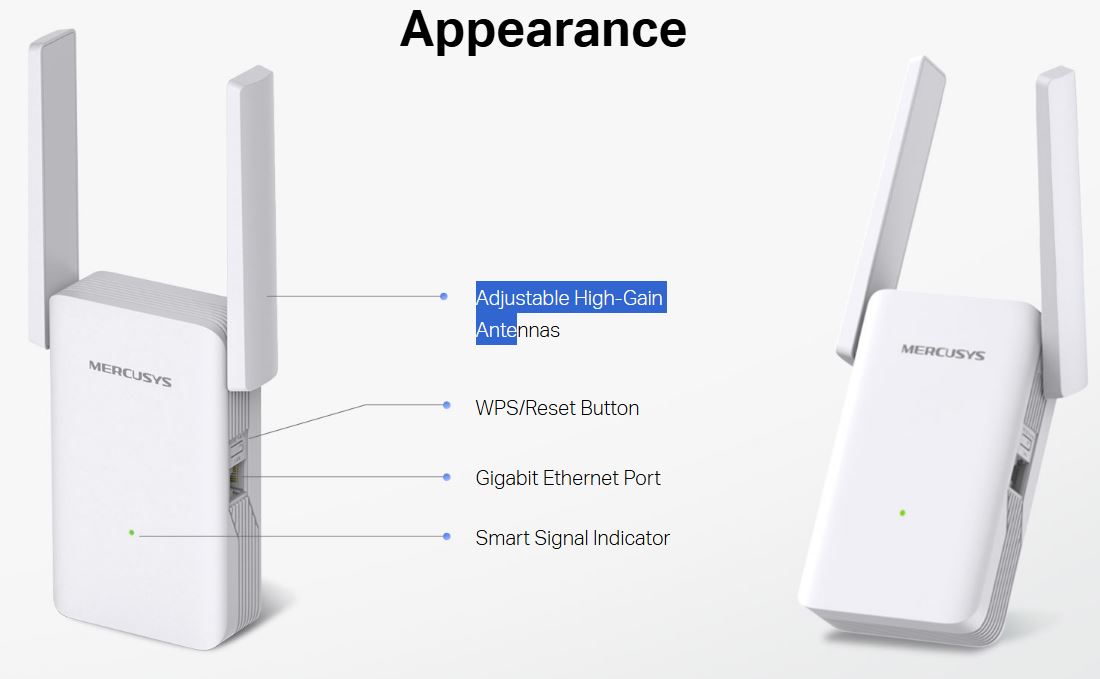

| Button |
WPS / Reset Button
|
| Antenna Type |
2× External Antennas
|
| Power Consumption |
13W
|
| Others |
|---|
| Certifications |
RoHS
|
| Package Contents |

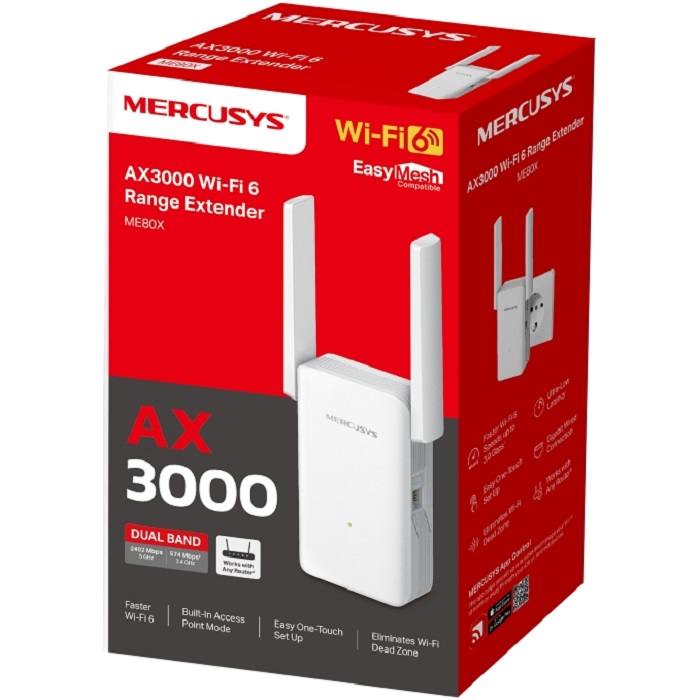

Wi-Fi Range Extender ME80X
Quick Installation Guide
|
| Environment |
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
|
|
