- Fast Wi-Fi for Daily Life — MW302R provides fast and stable connections to meet all your network needs with speeds of up to 300 Mbps
- Broader Coverage — Equipped with high gain external antennas to deliver strong Wi-Fi signals to every corner of your home
- Multi-Mode — Four modes in one device to satisfy all application scenarios
- Easy installation — Intuitive webpage guides you through the setup process in minutes
- Active Parental Controls — Establish appropriate access policies to protect children with responsible, safe internet access
- Compatible with IPv6 (Internet Protocol version 6)
Fast Daily Wi-Fi
The MW302R provides fast, stable Wi-Fi for all your connected devices. Wireless speeds of up to
300 Mbps make it ideal for HD streaming, online gaming, and rapid file downloads.

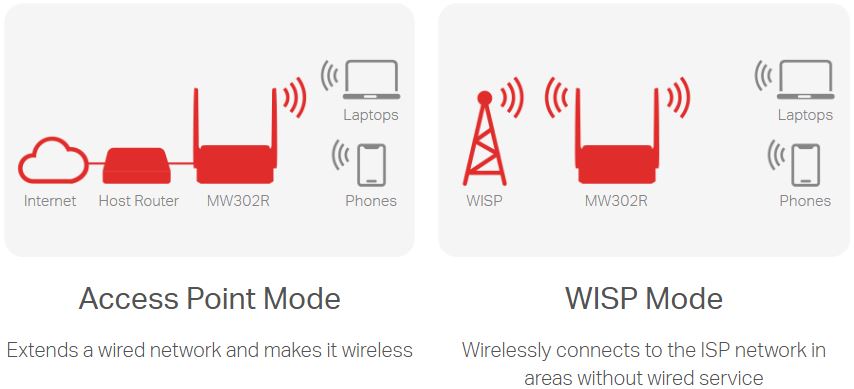

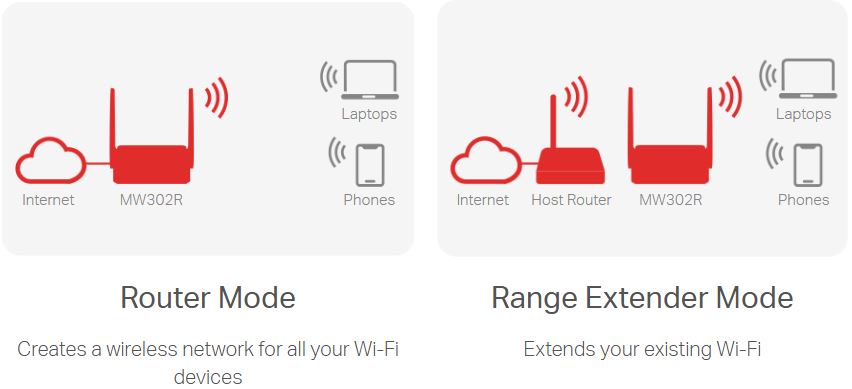

4 Modes in 1
Specification
| Wireless |
|---|
| Wireless Standards |
IEEE 802.11b/g/n
|
| Frequency |
2.4-2.4835GHz
|
| WiFi Speeds |
• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)
|
| Reception Sensitivity |
• 270M: -73dBm@10% PER
• 130M: -75dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -90dBm@10% PER
• 6 M: -94dBm@10% PER
• 1 M: -96dBm@10% PER
|
| Transmission Power |
<20dBm (EIRP)
|
| Wireless Security |
WPA-PSK / WPA2-PSK
|
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridging
|
| Software |
|---|
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP/L2TP
|
| Management |
Access Control, Local Management, Remote Management
|
| DHCP |
Server
|
| Port Forwarding |
Virtual Server, UPnP, DMZ
|
| Firewall Security |
IP and MAC Address Binding
|
| Protocols |
IPv4, IPv6
|
| Guest Network |
2.4GHz Guest Network
|
| Hardware |
|---|
| Dimensions |
114 mm × 94 mm × 26 mm
|
| Button |
Reset Button
|
| External Power Supply |
5V/0.6A
|
| Antenna Type |
2 * 5dBi
|

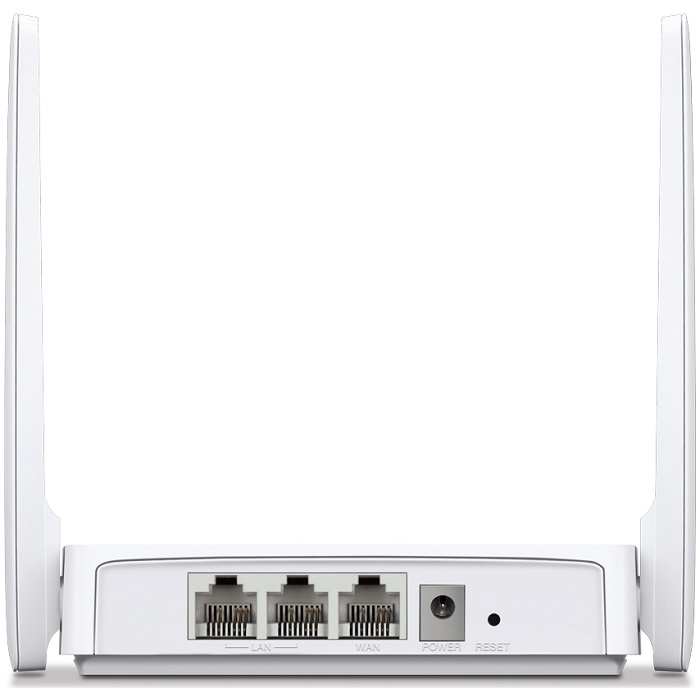

| Ethernet Ports |
2*10/100Mbps LAN Ports &
1*10/100Mbps WAN Port
|
| Others |
|---|
| Package Contents |

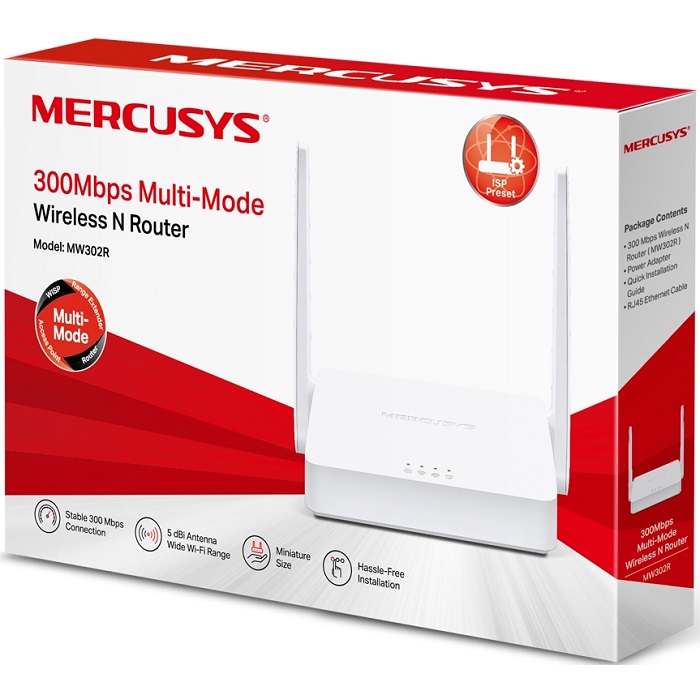

300Mbps Wireless N Router ( MW302R )
Power Adapter
Quick Installation Guide
Ethernet Cable
|
| Environment |
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
|
|
