- High Speed Wi-Fi - 300 Mbps wireless speed for multi-user HD video streaming
- Great Coverage - Two fixed high performance antennas provide maximum omni-directional wireless coverage
- Compatibility - Fully compatible with ADSL2+/ADSL2/ADSL standards
- Effortless Management –Set up in minutes and manage the network with the powerful intuitive web interface.
Meet All Your Networking Needs
With a Fast ADSL Modem Router
MW300D provides fast Wi-Fi to each of your smartphones, tablets, and laptops by combining an
ADSL2+ modem and NAT router in one device. Keep your options for internet providers open
thanks to compatibility with both ADSL and ADSL2 connections.
300 Mbps
Wireless N Speed
Enjoy smooth 4K streaming, online gaming, large file downloads, and other bandwidth-intensive activities. 300 Mbps wireless speeds on the 2.4 GHz band meet your most demanding home network needs.
Specification
| Wireless |
|---|
| Wireless Standards |
IEEE 802.11b/g/n
|
| Frequency |
2.4 - 2.4835GHz
|
| WiFi Speeds |
• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)
|
| Reception Sensitivity |
• 270M: -73dBm@10% PER • 11M: -90dBm@10% PER
• 130M: -75dBm@10% PER • 6 M: -94dBm@10% PER
• 54M: -77dBm@10% PER • 1 M: -96dBm@10% PER
|
| Transmission Power |
<20dBm (EIRP)
|
| Wireless Security |
WPA-PSK / WPA2-PSK
|
| Wireless Functions |
Enable/Disable Wireless Radio
|
| Hardware |
|---|
| Dimensions |
114 x 94 x 26 mm
|
| Button |
WPS/Reset Button
|
| External Power Supply |
9V/0.6A
|
| Antenna Type |
2× External Antennas
|

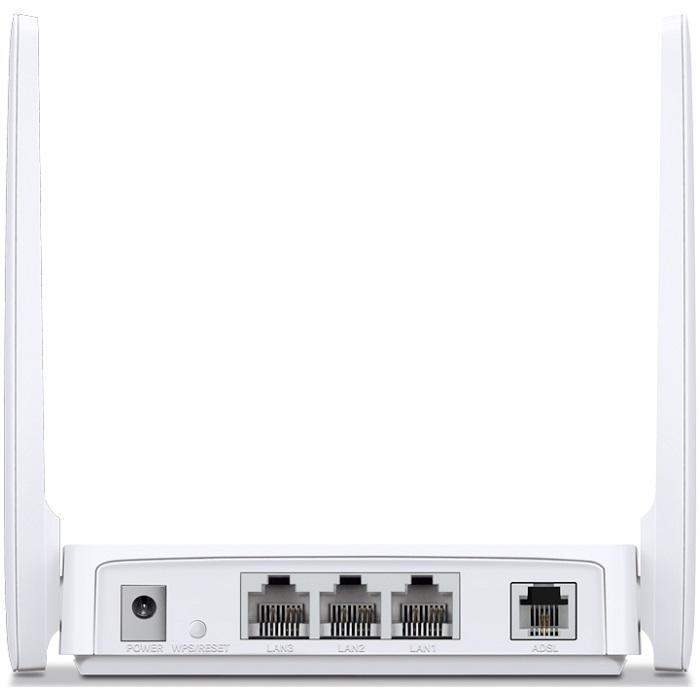

| Ethernet Ports |
3*10/100Mbps LAN Ports
1*RJ11 Port
|
| Others |
|---|
| Package Contents |
• 300Mbps Wireless N ADSL2+
Modem Router (MW300D)
• Power Adapter
• Quick Installation Guide
• 2× RJ11 Phone Cable
• RJ45 Ethernet Cable
• External DSL Splitter
|
| Environment |
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
|
|
