- Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports
- Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable

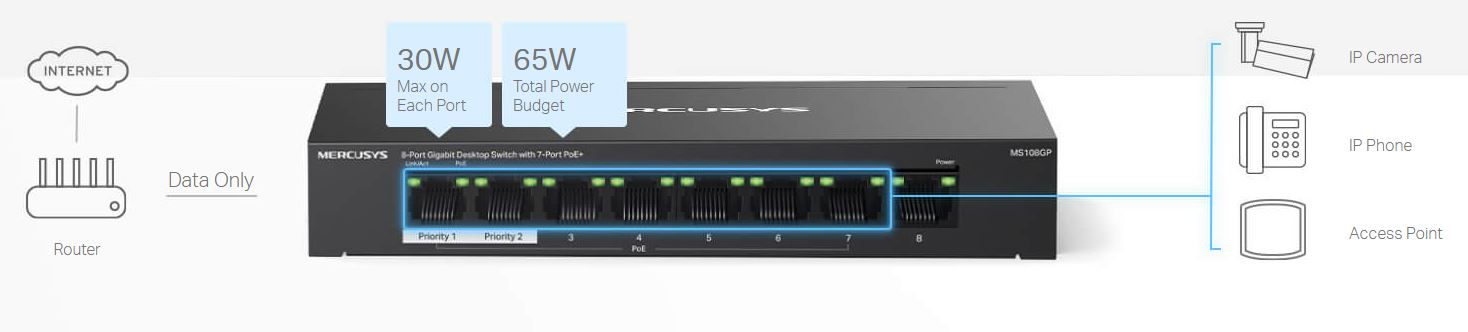

- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports

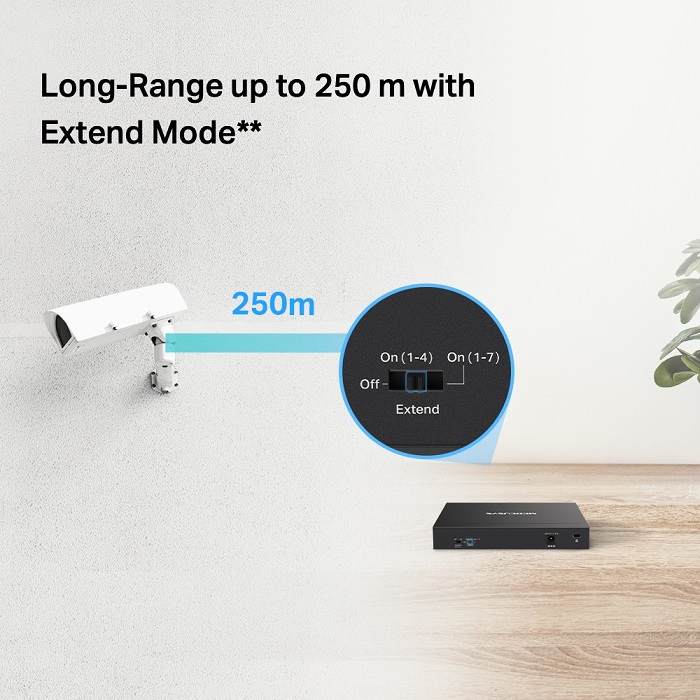

- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode

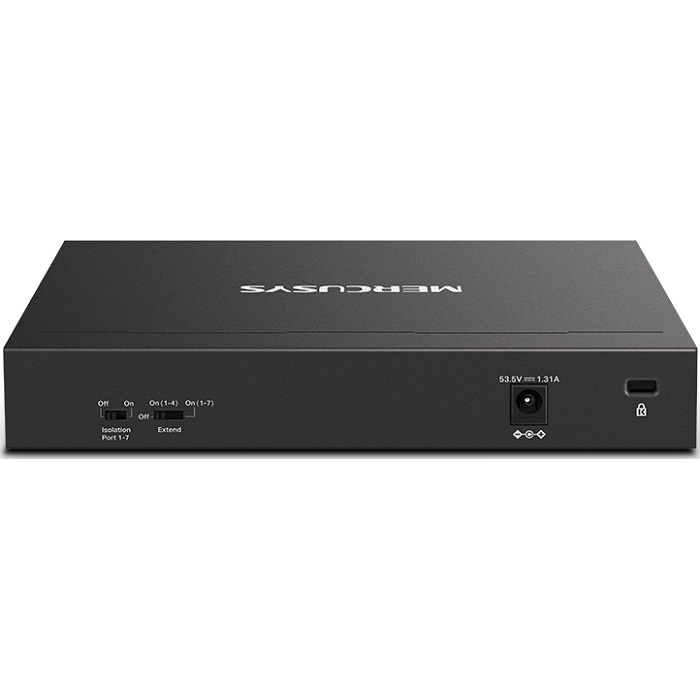

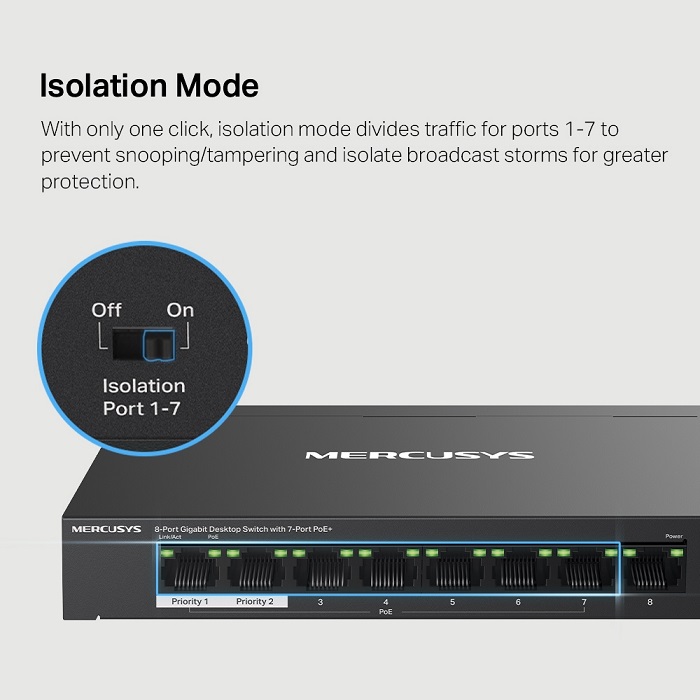

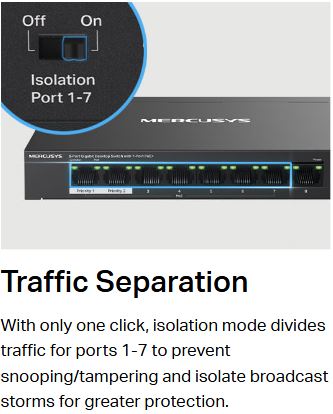

- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

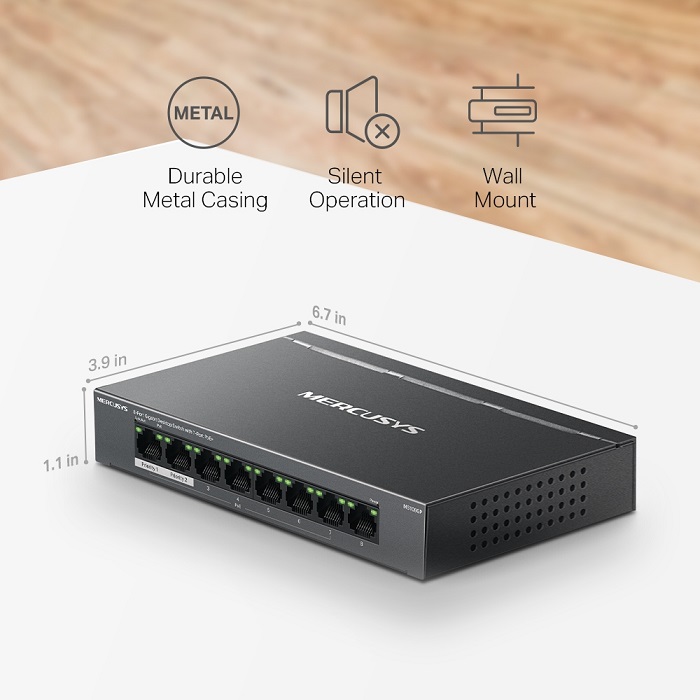

- Durable Metal Casing: Allows for efficient heat dissipation and long network life

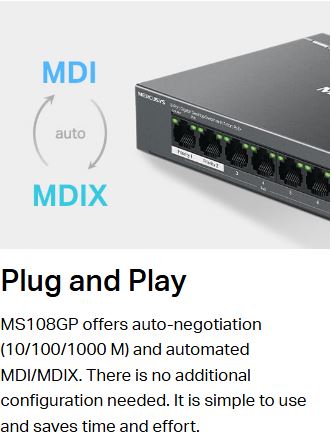

- Plug and Play: Simple to use and saves time and effort

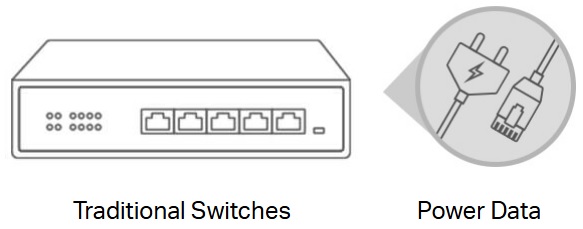

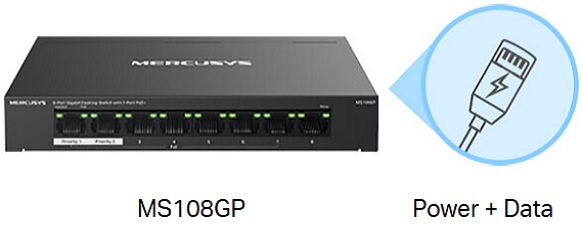

Power over Ethernet: Two Cables in One
Specification
| Hardware |
|---|
| PoE Ports |
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 7
PoE Power Budget: 65 W
|
| Dimensions |
171*98*27 mm
|
| External Power Supply |
External Power Adapter (Output: 53.5V/1.31A)
|
| Standards and Protocols |
IEEE 802.3x Flow Control
|
| Data Rates |
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
|
| Jumbo Frame |
9 KB
|
| Mac Address Table |
8K
|
| Max Power Consumption |
5.07W（220 V / 50 Hz, no PD connected）
77.33W（220 V / 50 Hz, with 65W PD connected）
|
| Max Heat Dissipation |
17.238 BTH/h （no PD connected)
262.922 BTH/h（with 65W PD connected）
|
| Others |
|---|
| Package Contents |

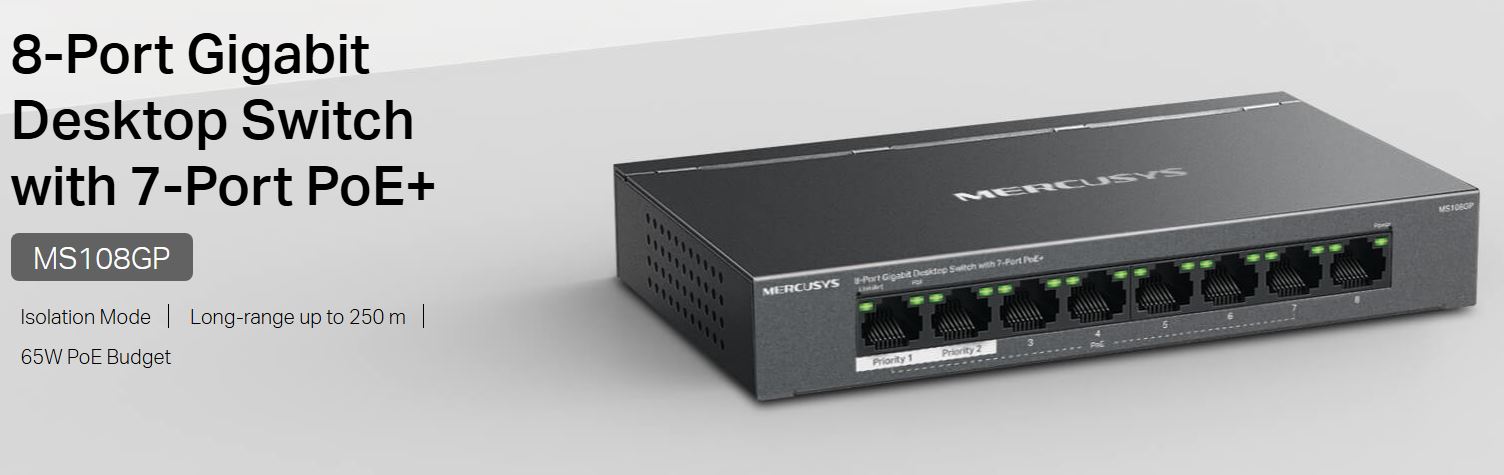

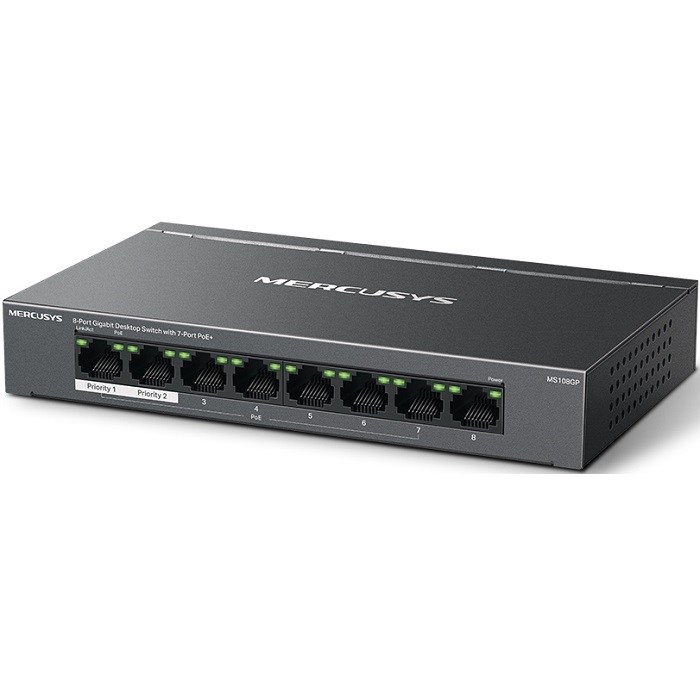

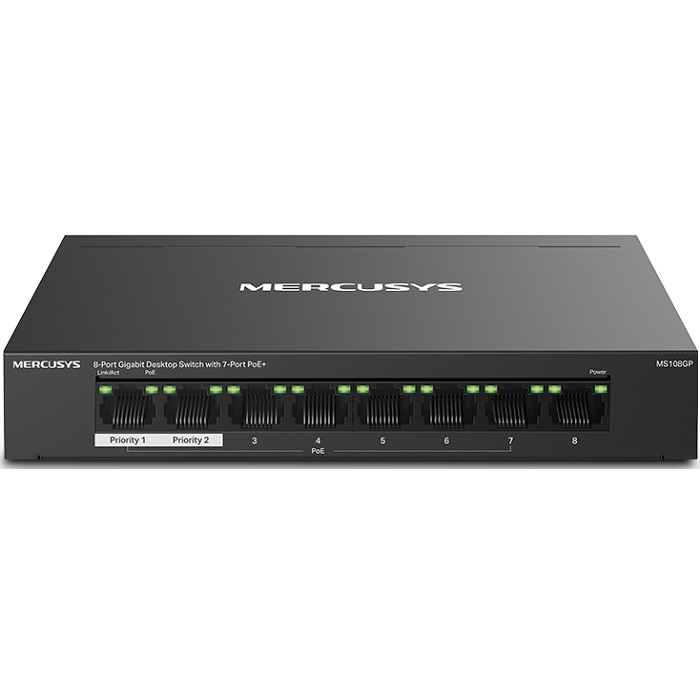

• 8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP)
• Power Adapter
• Quick Installation Guide
|
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
|
|
