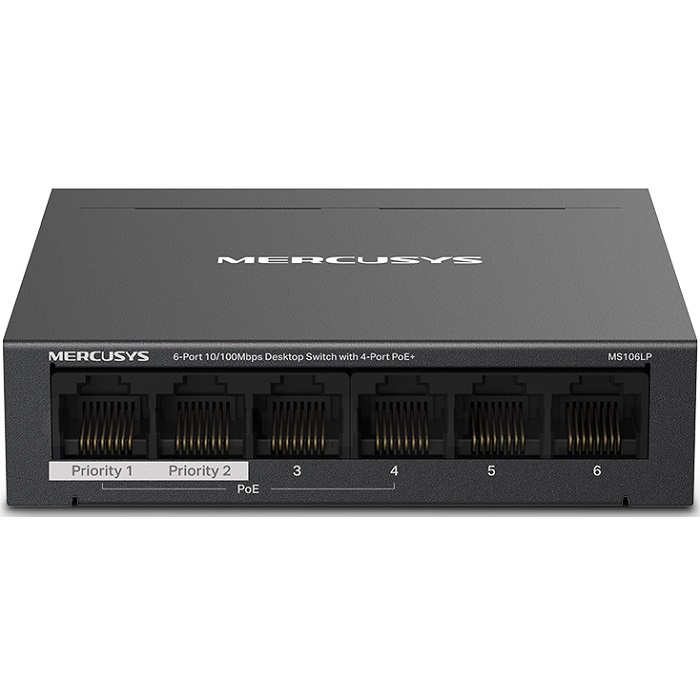

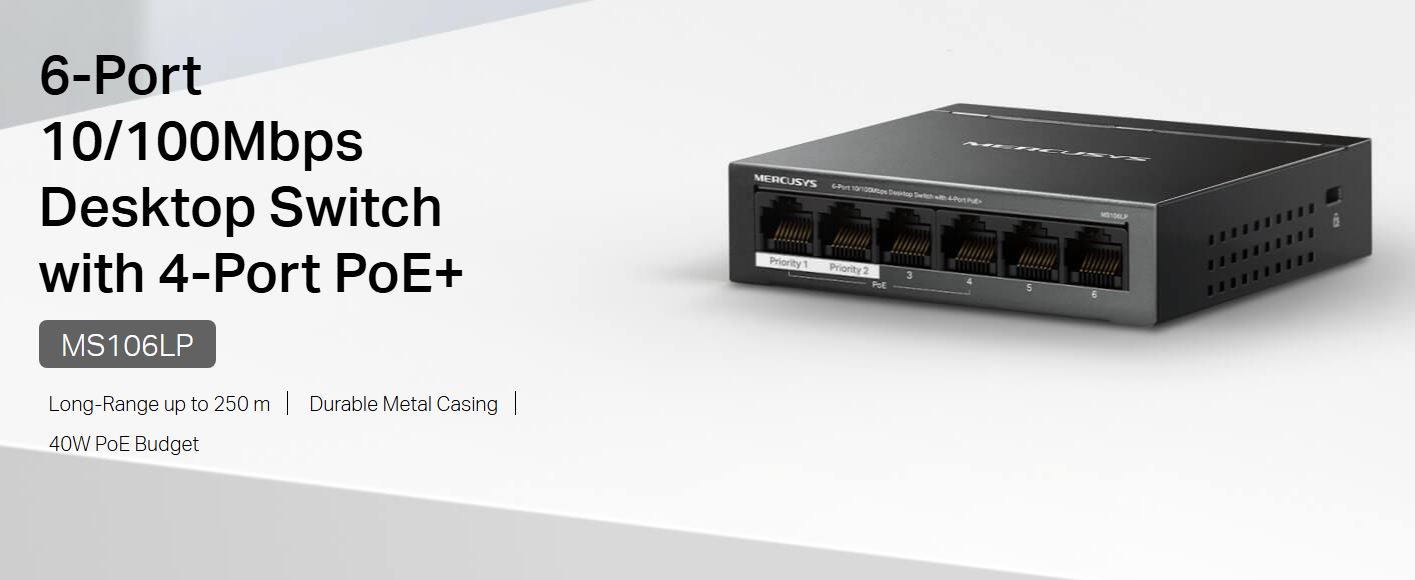

- 6 Ports: 6× 10/100 Mbps RJ45 ports with 4 PoE+ ports
- Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports

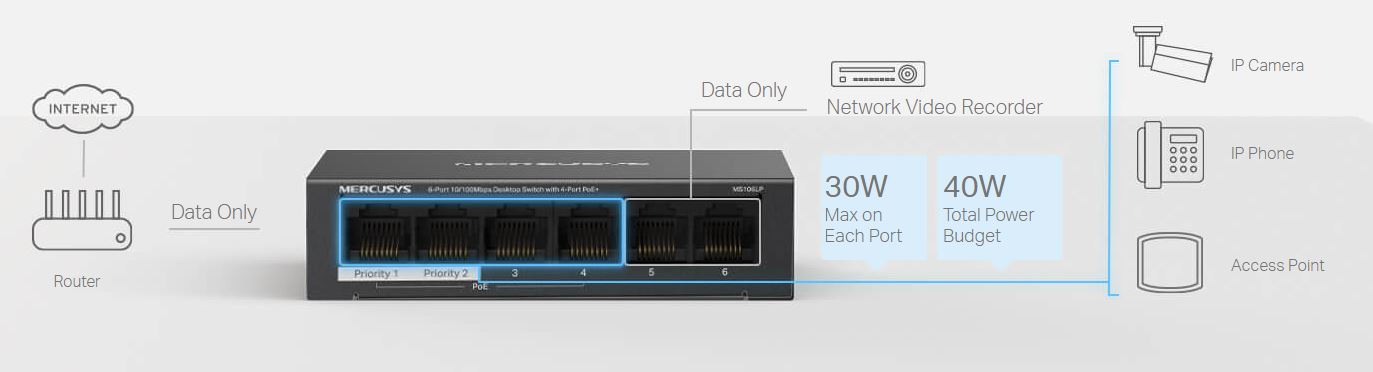

- 2× Uplink Ports: MS106LP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode

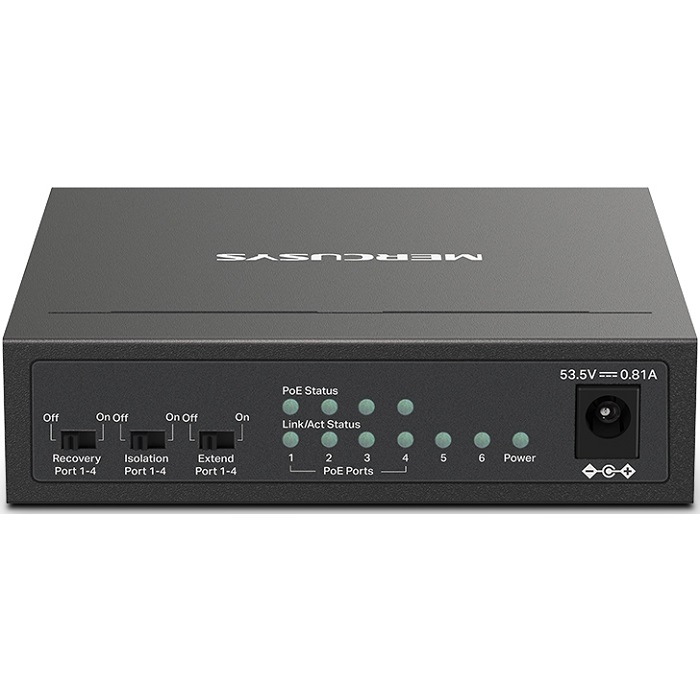

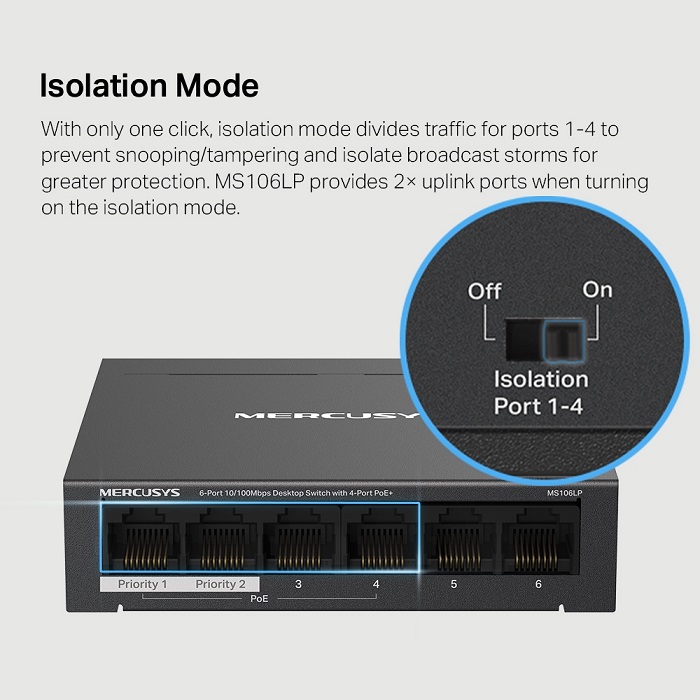

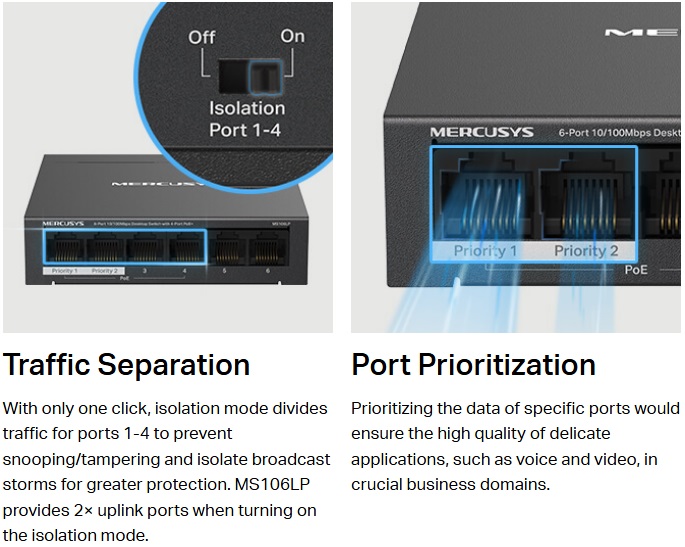

- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

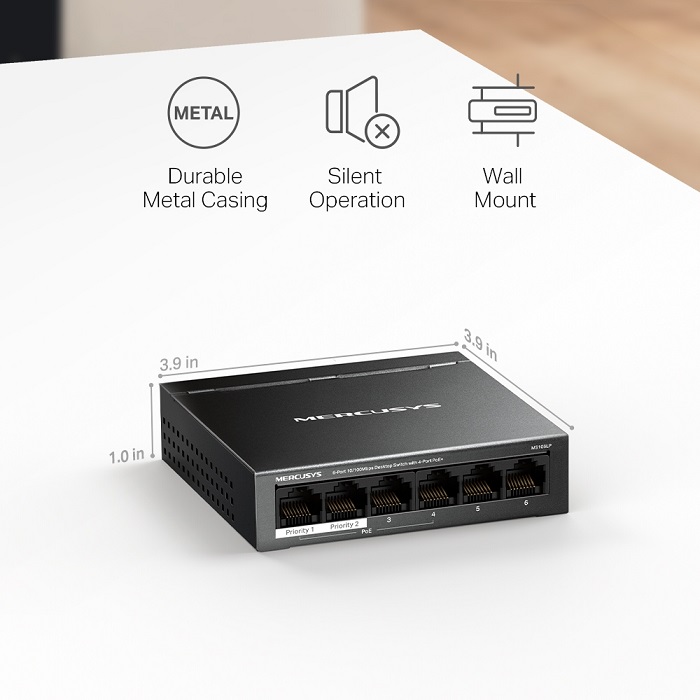

- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort

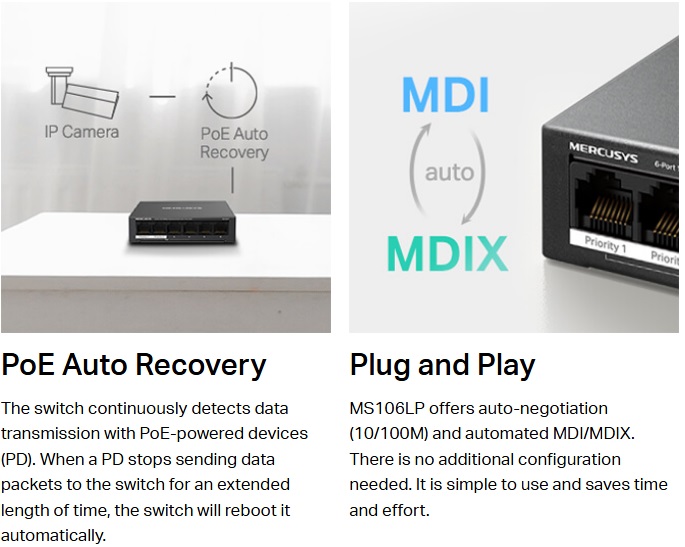

- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

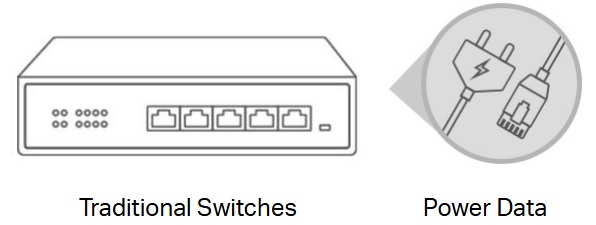

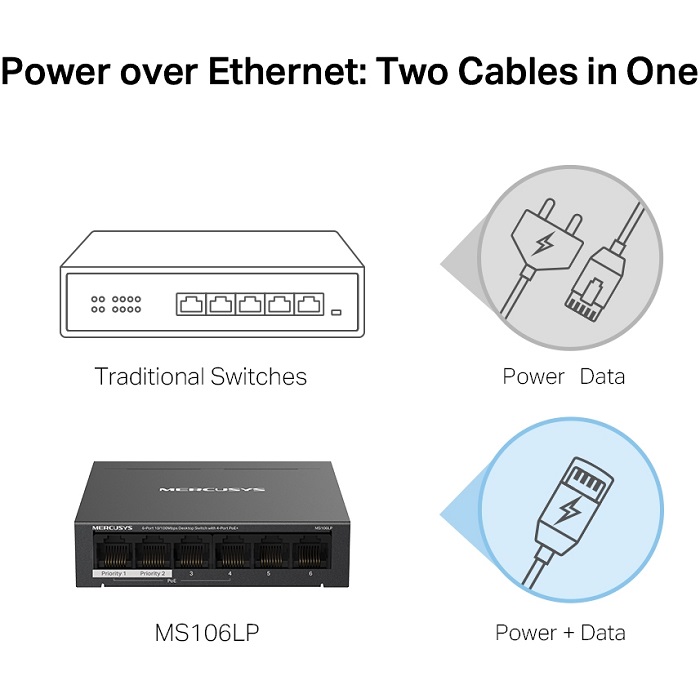

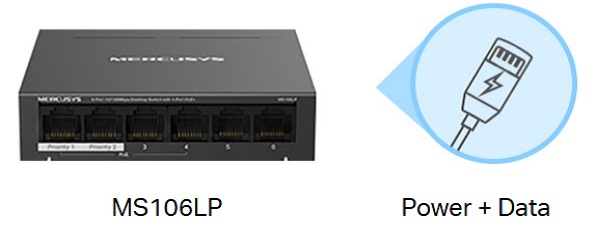

Power over Ethernet: Two Cables in One
Power over Ethernet: Two Cables in One
Specification
| Hardware |
|---|
| PoE Ports |
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 40 W
|
| Dimensions |
99.8*98*25mm
|
| Interfaces |
6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
|
| External Power Supply |
External Power Adapter (Output: 53.5V/0.81A)
|
| Standards and Protocols |
IEEE 802.3x Flow Control
|
| Data Rates |
10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex
|
| Jumbo Frame |
2 KB
|
| Mac Address Table |
2K
|
| Max Power Consumption |
1.87W（220 V / 50 Hz, no PD connected）
44.8W（220 V / 50 Hz, with 40W PD connected）
|
| Max Heat Dissipation |
6.34 BTH/h （no PD connected)
152.32 BTH/h（with 40W PD connected）
|
| Others |
|---|
| Package Contents |

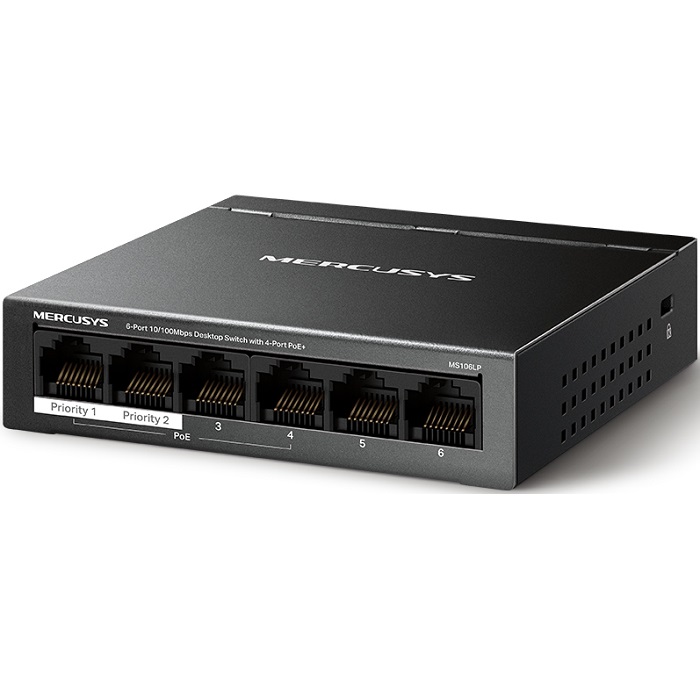

• 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP)
• Power Adapter
• Quick Installation Guide
|
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
|
|
