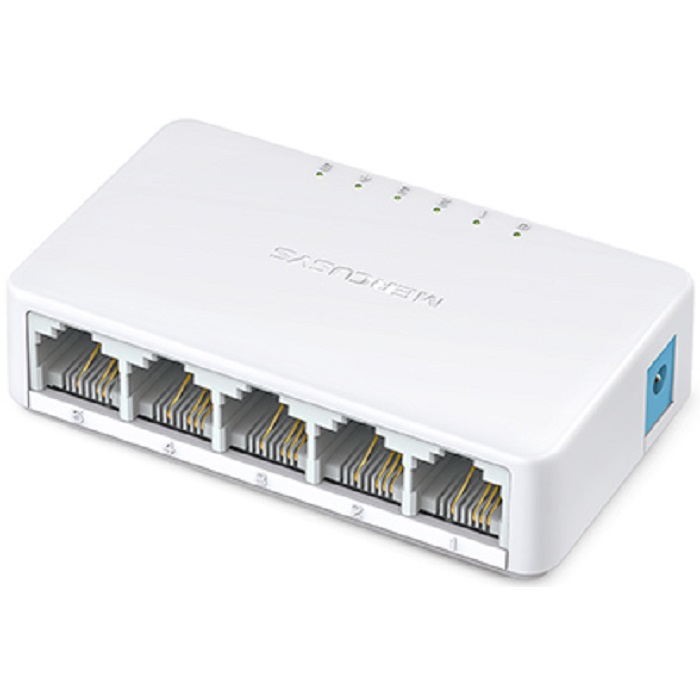

Easy Wired Network Expansion
5-Port 10/100Mbps Desktop Switch
MS105

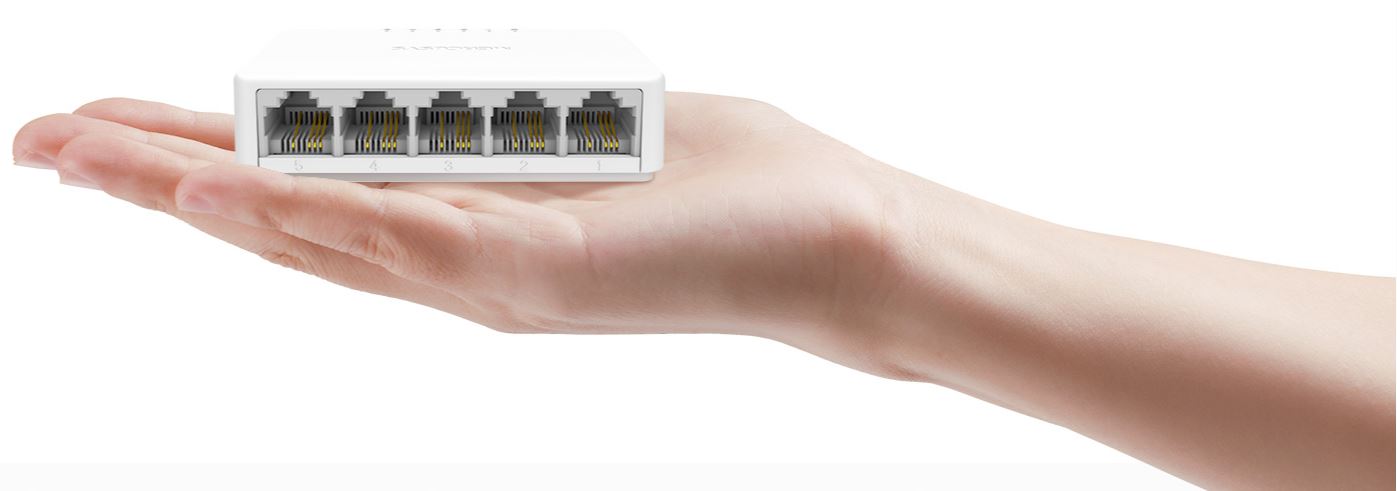

Sleek,Ultra-Compact Design

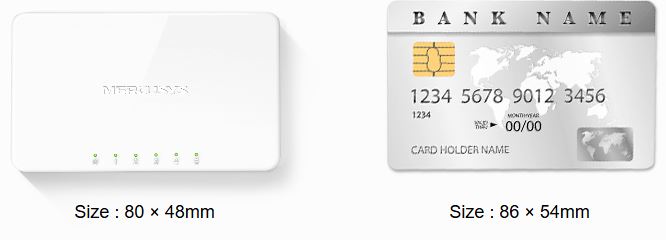

About the same size as a credit card, the MS105 can be placed anywhere in your home without taking up too
much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running.
Expand Ethernet Network
With five 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS105 is flexible and is fully
compatible
with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for
home, small office, and even dormitory environments.
Specification
| Software |
|---|
| Transfer Method |
Store and forward |
| Hardware |
|---|
| Dimensions |
82 x 49 x 21 mm
|
| Interfaces |
5 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX |
| External Power Supply |
External power adapter
(Output: 5.0VDC/0.6A)
|
| Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD |
| Fan Quantity |
Fanless |
| Data Rates |
10/100Mbps at half duplex
20/200Mbps at full duplex |
| Buffer Capacity |
768Kb |
| Jumbo Frame |
2KB |
| Switching Capacity |
1Gbps |
| LED |
Ethernet (1, 2, 3, 4, 5), Power |
| Others |
|---|
| Certifications |
CE, RoHS |
| Package Contents |
5-Port 10/100Mbps Desktop Switch
MS105
Power adapter
Quick installation guide |
| Environment |
Operating temperature: 0°C~40°C (32°F~104°F)
Storage temperature: -40°C~70°C (-40°F~158°F)
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5%~90% non-condensing |
|
