- OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.
- MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- WiFi THAT GOES FARTHER – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
- GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
- SMART CONNECT – Intelligently chooses the best available band for each device

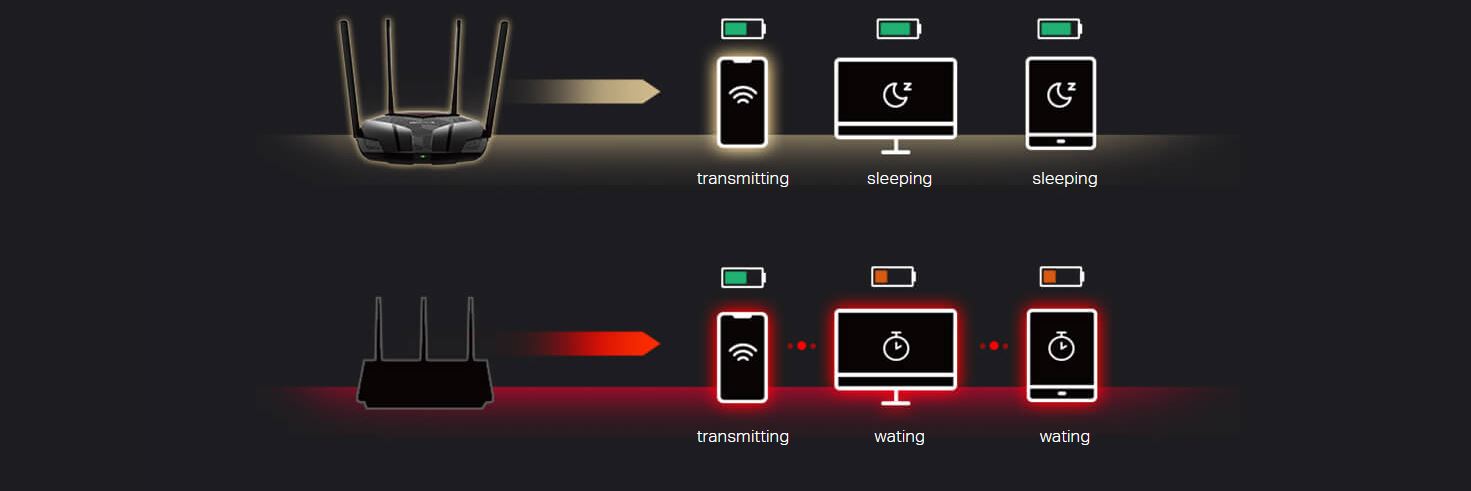

Eco-Friendly Power Saving
Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend your devices’ battery life.

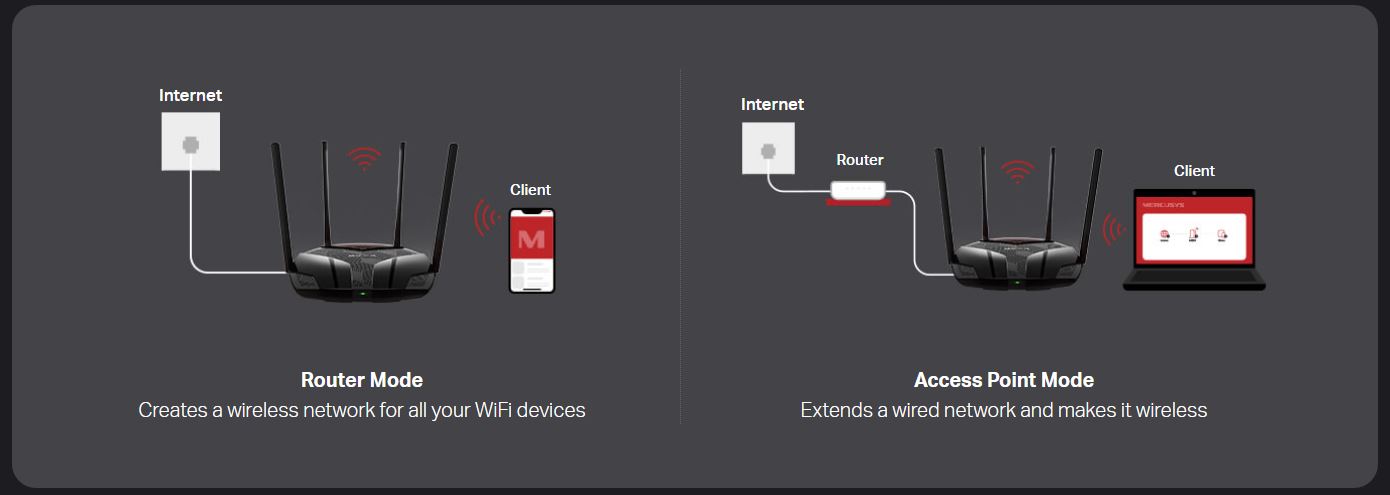

Multi-Mode for Flexible Application
Specification
| Wireless |
|---|
| Wireless Standards |
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
|
| WiFi Speeds |
2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
|
| Reception Sensitivity |
11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8:-75dBm
11ac VHT40 MCS9:-71dBm
11ac VHT80 MCS9:-67dBm
11ax VHT20 MCS11:-67dBm
11ax VHT40 MCS11:-64dBm
11ax VHT80 MCS11:-61dBm
|
| Transmission Power |
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (band1、 band2)
5 GHz < 30dBm (band3)
|
| Wireless Security |
WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal
|
| Wireless Functions |
Enable/Disable Wireless Radio, WMM
|
| Software |
|---|
| WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
|
| Management |
Access Control
Local Management
Remote Management
|
| DHCP |
Server, DHCP Client List
|
| NAT Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ
|
| Firewall Security |
SPI Firewall, IP and MAC Address Binding
|
| Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network
|
| VPN Sever |
OpenVPN, PPTP supported
|
| Hardware |
|---|
| Dimensions |
8.2 × 6.8 × 1.6 in
(208.8 × 171.6 × 41.7 mm)
|

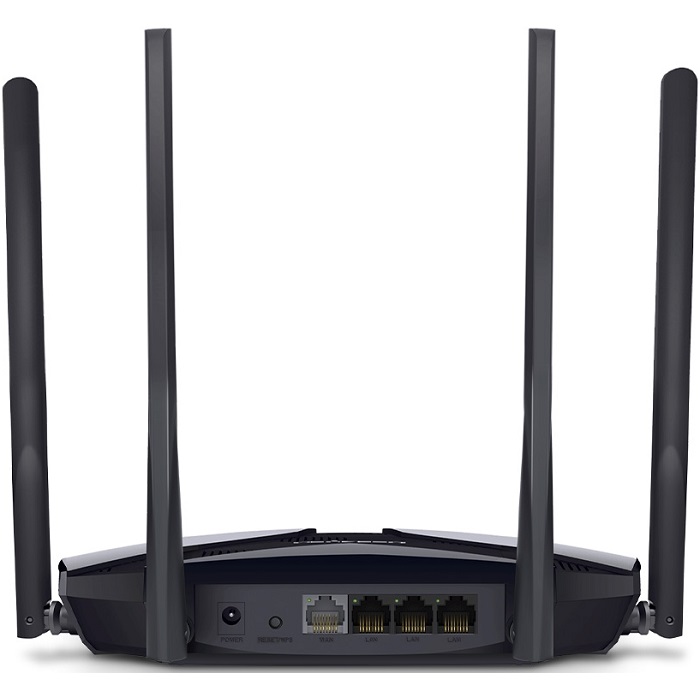

| Interfaces |
1× Gigabit WAN Port + 3× Gigabit LAN Ports
|
| Button |
Reset/WPS Button
|
| Antenna Type |
4× 5 dBi Fixed Omni-Directional Antennas
|
| Others |
|---|
| Package Contents |
• AX3000 Wi-Fi 6 Router MR80X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
|
| Environment |
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
|
|
