- Upgrade Your Network with Wi-Fi 6 – MR60X comes equipped with the latest Wi-Fi 6 standard, delivering more simultaneous connections, extend WiFi range, and maintain reliably fast data transmissions.
- Faster 1.5 Gbps Speeds - Optimal WiFi 6 speeds reaching up to 1.5 Gbps (1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
- Improved Network Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
- Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- Overall Security Protection – The latest WPA3 provides improved WiFi security
- Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
- Smart Connect– Intelligently chooses the best available band for each device

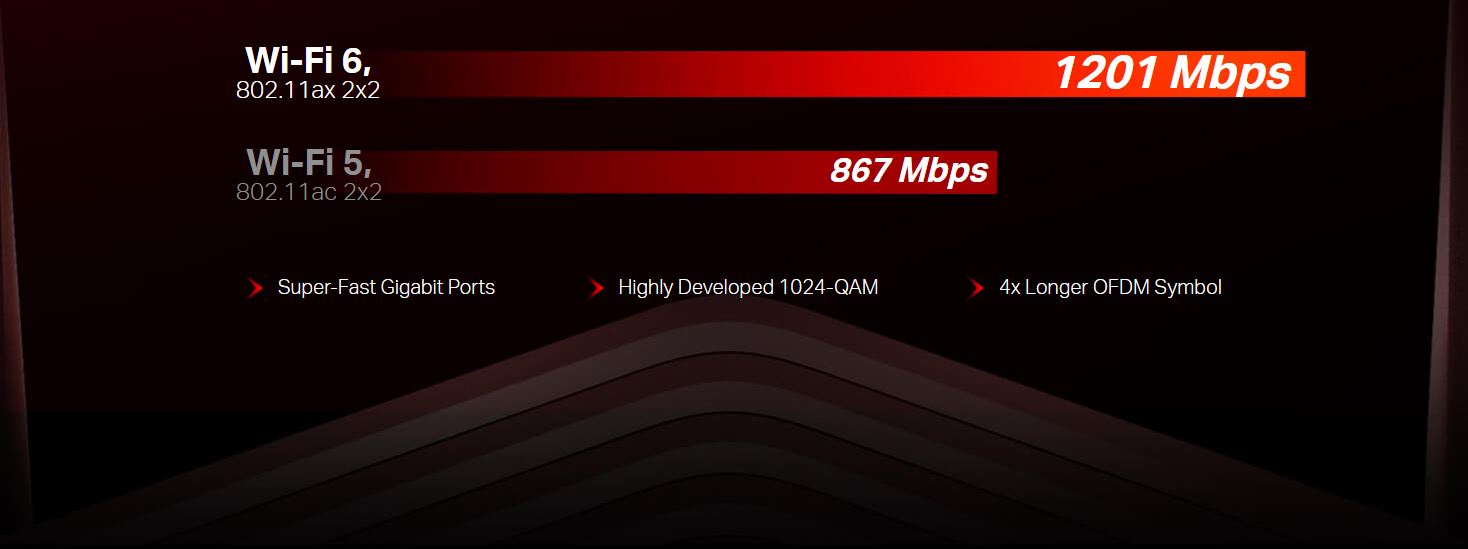

Level Up Your Speeds up to 40% Faster
By combining 1024-QAM and a long OFDMA symbol, MR60X delivers gigabit fast speeds up to 1500 Mbps for all your WiFi
devices – 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. Game online, watch 4K videos, and crank up everything to the
highest settings without lag.
Connect 4× More Devices at Once
More Streams, More Devices, More Fun
WiFi 6 also improves network capacity to better address the increased demand on home networks. With MU-MIMO and OFDMA,
MR60X transmits data to and from multiple devices at the same time, reaching up to 4× more capacity, greatly increasing your
devices’ transmission efficiency and the throughput of your whole network under the same conditions.

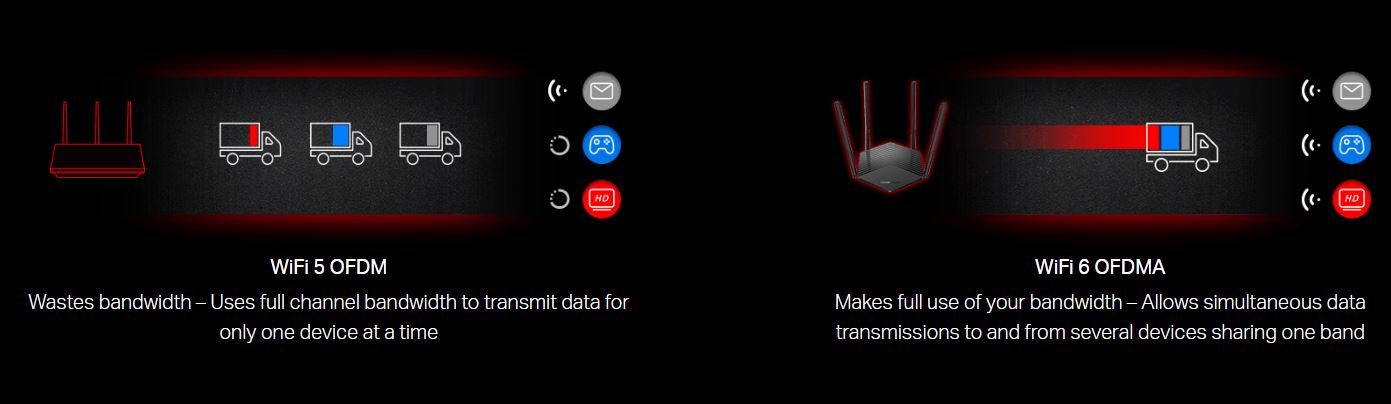

Decongests Densely Populated Networks with OFDMA

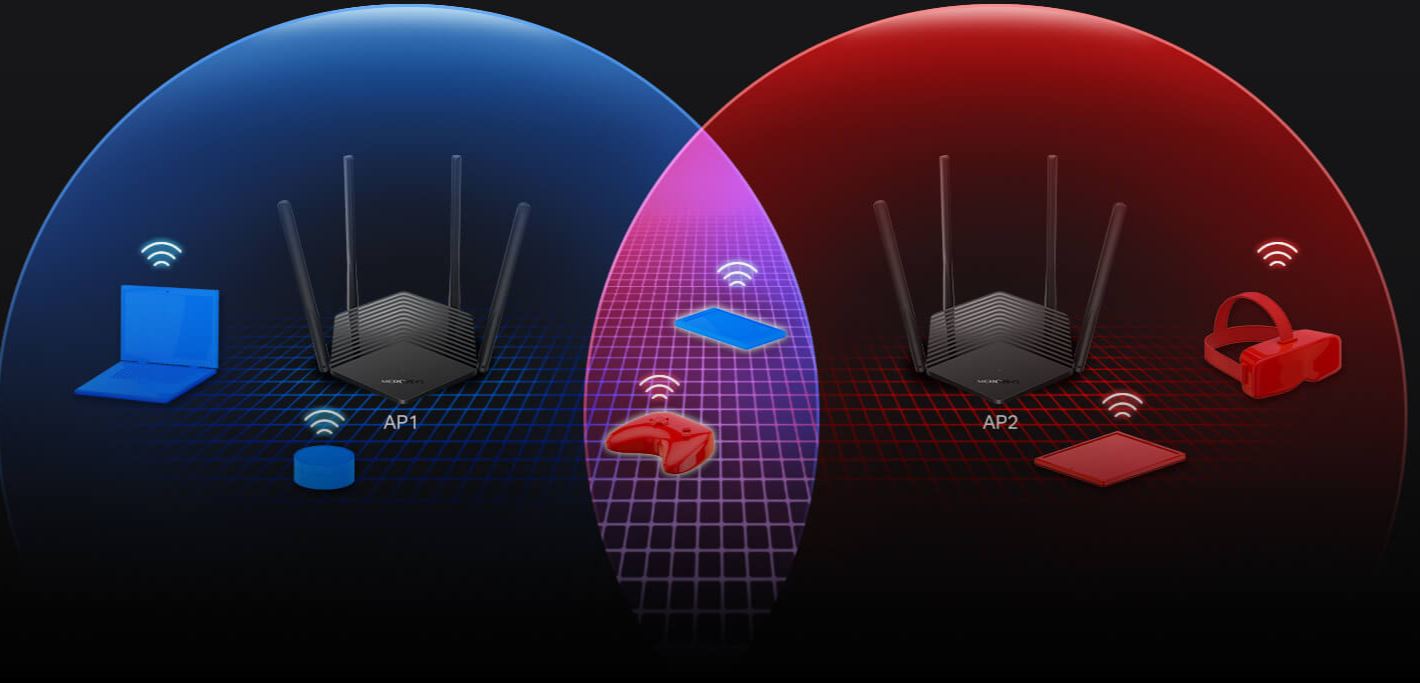

Less WiFi Interference
BSS Color marks the data frames from different APs which helps minimize the signal interference from your neighbors to improve transmission efficiency.
Specification
| Wireless |
|---|
| Wireless Standards |
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
|
| WiFi Speeds |
1201 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
|
| Reception Sensitivity |
11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-78dBm
11a 6Mbps:-94dBm
11a 54Mbps:-78dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS8:-70dBm
11ac VHT80 MCS8:-65dBm
|
| Wireless Security |
WPA / WPA2-Personal
WPA2 / WPA3-Personal
|
| Wireless Functions |
Enable/Disable Wireless Radio, WMM
|
| Hardware |
|---|
| Dimensions |
6.9 × 6.2 × 1.8 in (175.6 × 157.2 × 45 mm)
|

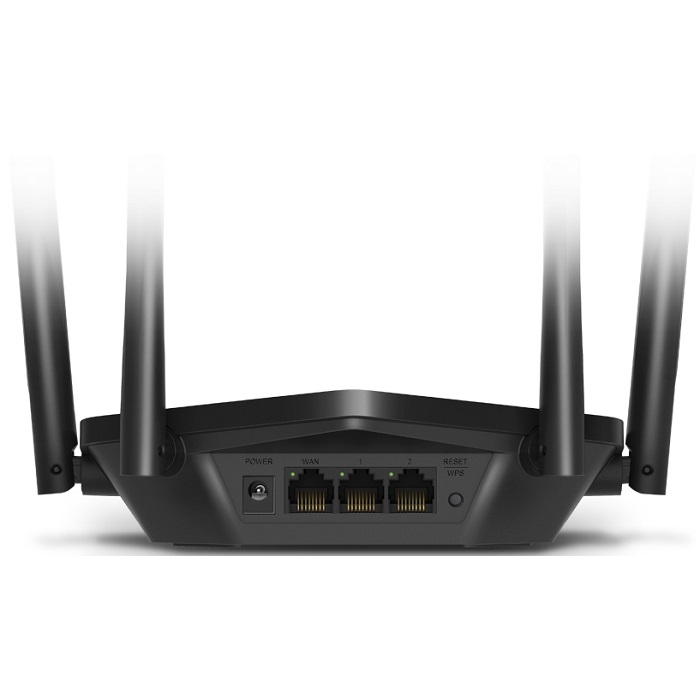

| Interfaces |
1× Gigabit WAN Port + 2× Gigabit LAN Ports
|
| Button |
Reset/WPS Button
|
| Antenna Type |
4× 5 dBi Fixed Omni-Directional Antennas
|
| Software |
|---|
| WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
|
| Management |
Access Control
Local Management
Remote Management
|
| DHCP |
Server, DHCP Client List
|
| NAT Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ
|
| Firewall Security |
SPI Firewall, IP and MAC Address Binding
|
| Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network
|
| Others |
|---|

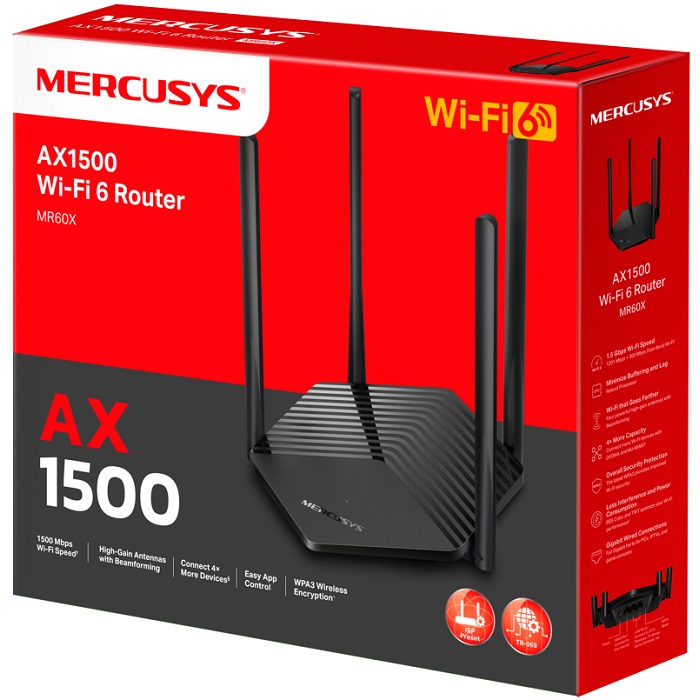

| Package Contents |
• AX1500 Wi-Fi 6 Router MR60X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
|
| Environment |
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
|
|
