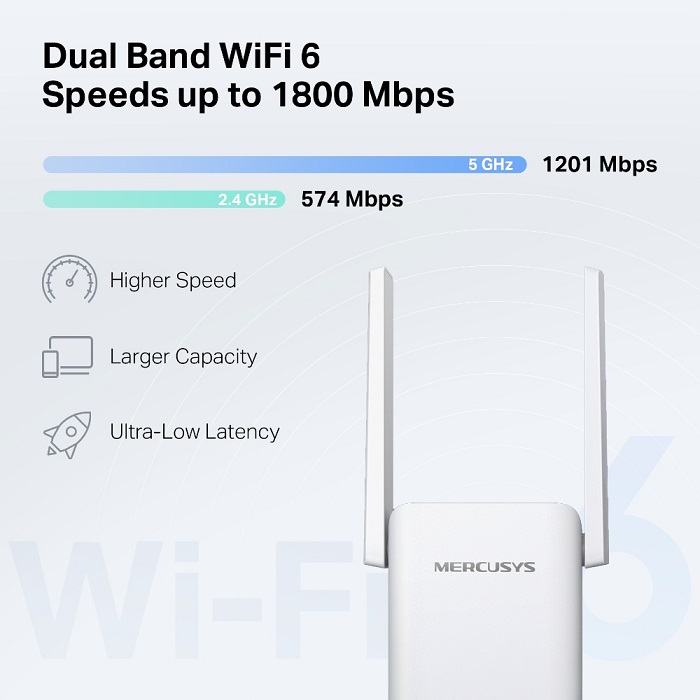

- Dual Band Speeds up to 1800 Mbps – 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.†
- Armed with WiFi 6 – Improves virtually every aspect of your network: speed, efficiency, and capacity.
- Gigabit Wired Connection – Provides speedy wired connections for PCS, IPTVS.and game consoles.
- Works with Any Routers – To Extend WiFi to Where You Need It Most. ‡
- Easy One-Touch Setup – Press the WPS button to expand your Wi-Fi coverage in seconds.

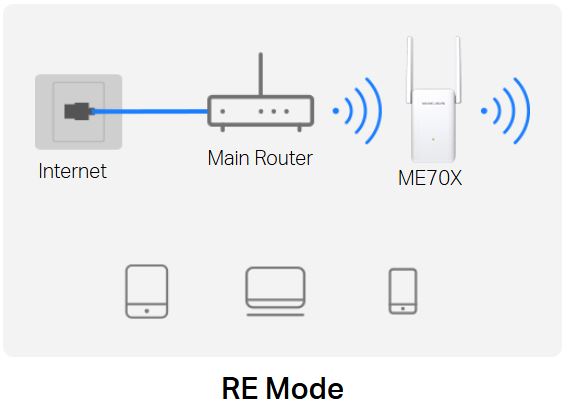

- Built-In Access Point Mode – Works as RE mode and AP mode.
- Manage Your Network with App - Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.

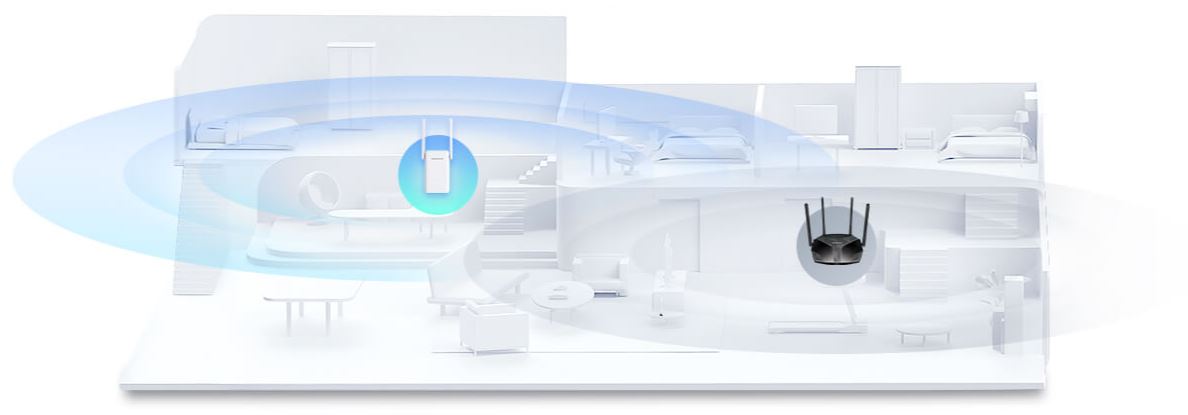

Extend WiFi to Where You Need It Most

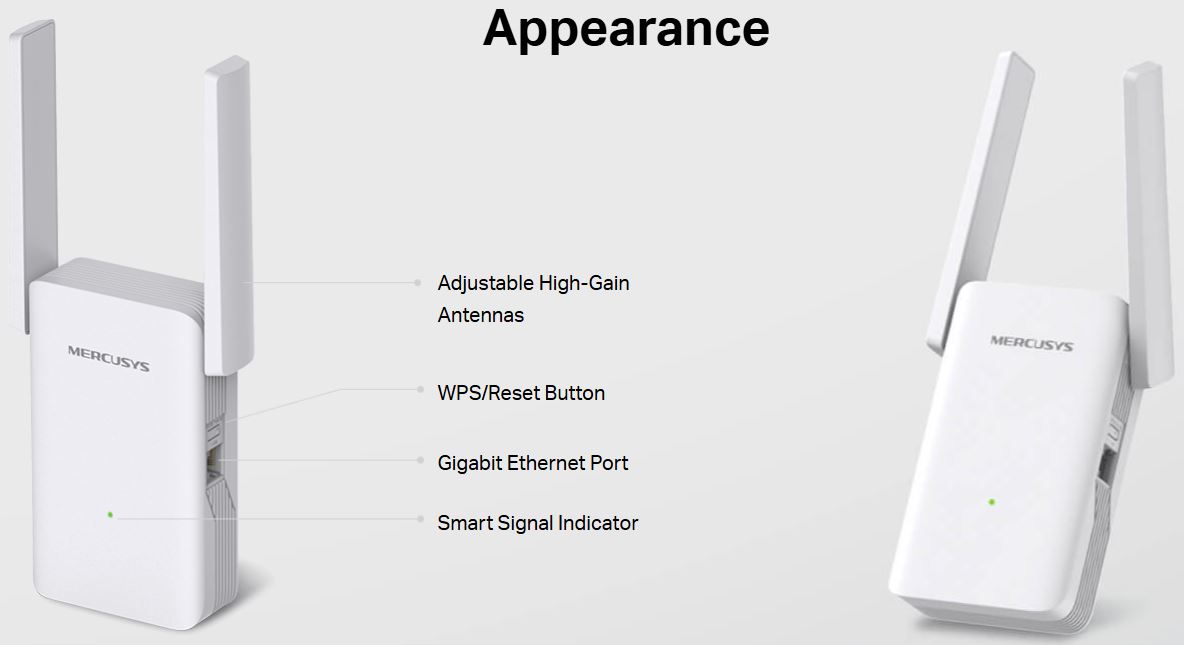

Expand coverage of your Existing Router. The two adjustable high-gain antennas extends WiFi signals to where your router WiFi cannot reach. This
AX1800 Range Extender is backward compatible with previous WiFi generations (11b/g/n/a/ac) and will work with all your existing internet-connected
devices.
Advanced Features Made for Speed

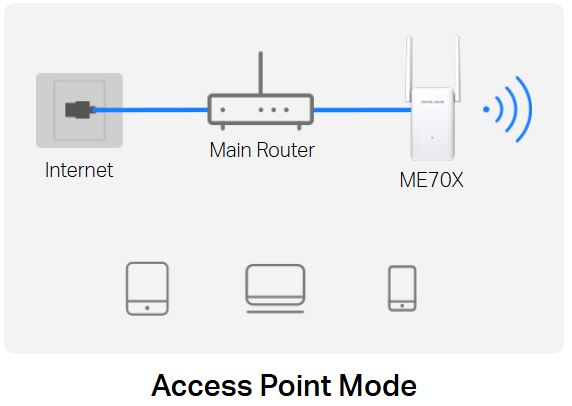

Built-In Access Point Mode
ME70X is more than just a WiFi range extender. Connect your wired internet connection to the ME70X via Ethernet cable to turn it into a dual band WiFi access point.
Specification
| Wireless |
|---|
| Wireless Standards |
IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
|
| Frequency |
2.4GHz and 5GHz
|
| WiFi Speeds |
574 Mbps at 2.4GHz, 1201 Mbps at 5GHz
|
| Reception Sensitivity |
5GHz:
11ax HE80 MCS0:-88 dBm ;
11ax HE80 MCS11:-58 dBm
11a 6Mbps:-94 dBm;
11a 54Mbps:-76 dBm
11ac VHT80 MCS0:-91dBm;
11ac VHT80 MCS9:-63dBm;
2.4GHz:
11ax HE40 MCS0:-93 dBm ;
11ax HE40 MCS11:-63 dBm
11g 6Mbps:-95 dBm;
11g 54Mbps:-77 dBm
11n HT40 MCS9:-72dBm;
|
| Wireless Security |
WEP, WPA, WPA2, WPA3-PSK
|
| Hardware |
|---|
| Dimensions |
138.6 × 100.3 × 68.4 mm
|
| Interfaces |
1 Gigabit Ethernet Port
|
| Button |
WPS / Reset Button
|
| Antenna Type |
2× External Antennas
|
| Power Consumption |
13W
|
| Others |
|---|
| Certifications |
RoHS
|
| Package Contents |
Wi-Fi Range Extender ME70X
Quick Installation Guide
|
| Environment |
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
|
|
