- Eliminate WiFi Dead Zones — Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly

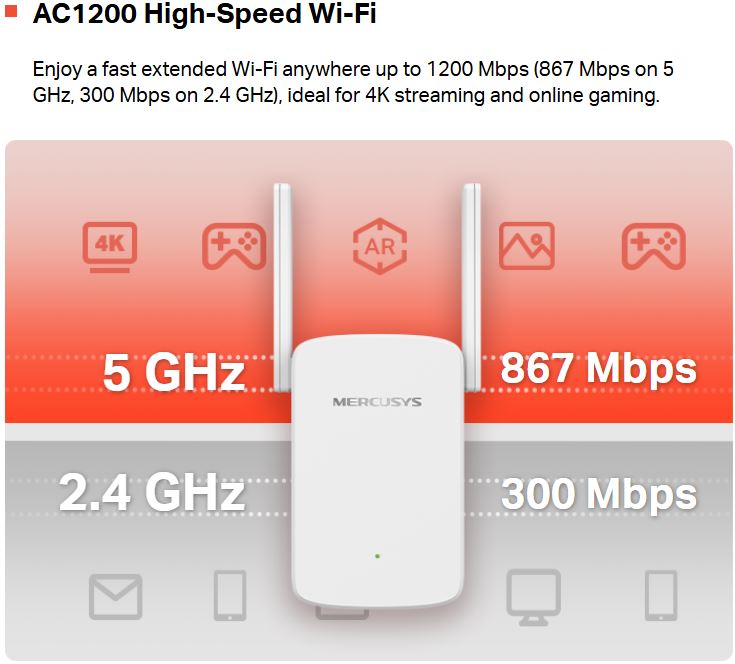

- AC1200 Dual Band WiFi — Keep your whole home connected with strong WiFi expansion at a combined speed of up to 1.2 Gbps
- Easy One-Touch Setup — Simply press the WPS button to expand your WiFi coverage in seconds
- Signal Indicator — Multicolor LED helps you find the right location for your range extender for the best WiFi extension
- Fast 10/100 Mbps Port — Provides speedy wired connections for PCs, IPTVs, and game consoles
- Works with Any Router or Wireless Access Point
Streaming at Full Speed All The Time

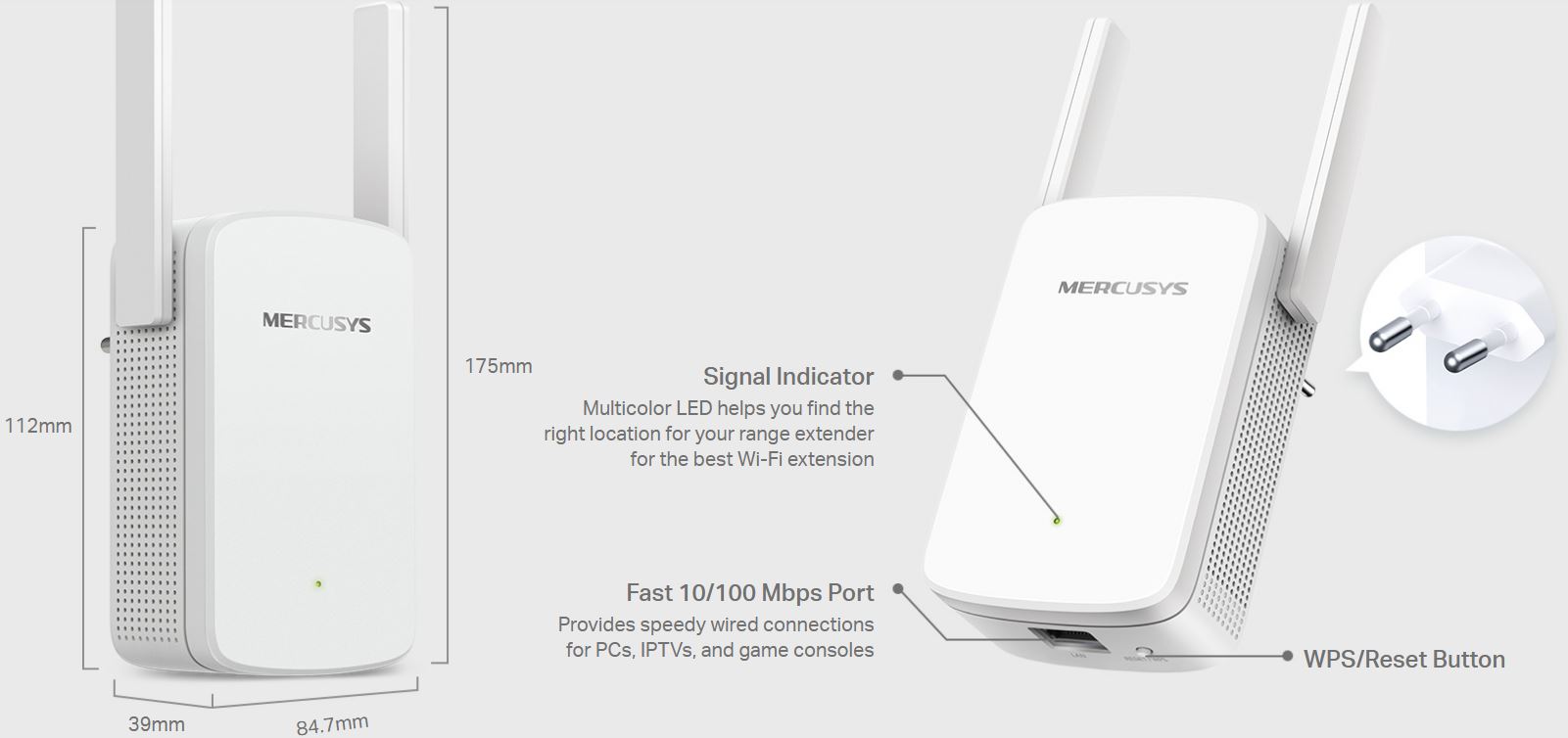

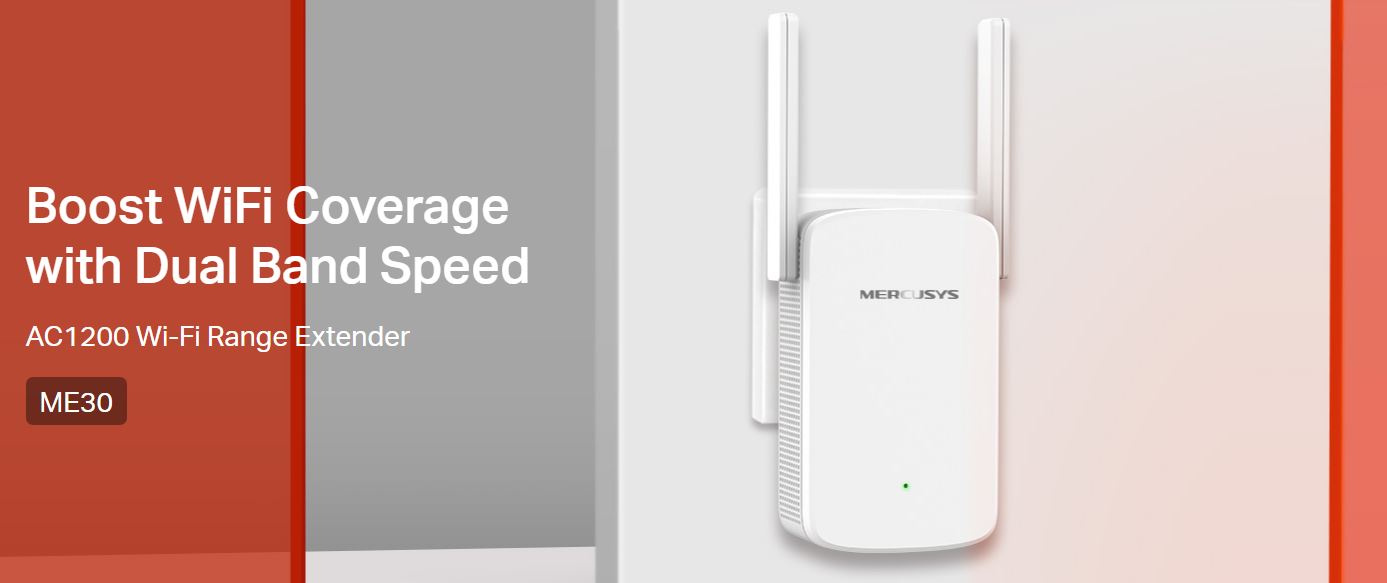

Appearance
Specification
Wireless |
---|
Wireless Standards |
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
|
Frequency |
2.4 - 2.5 GHz, 5 GHz
|
WiFi Speeds |
Up to 1200 Mbps (867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)
|
Reception Sensitivity |
5 GHz:
11ac HT80 MCS9 < -63 dBm
2.4 GHz:
11n HT40 MCS7 < -70 dBm
|
Transmission Power |
< 20 dBm
|
Wireless Security |
WPA-PSK/WPA2-PSK
|
Hardware |
---|
Dimensions |
112 × 84.7 × 39 mm
|
Interfaces |
1× 10/100Mbps RJ45 Port
|
Button |
RESET/WPS Button
|
Antenna Type |
2× External Antennas
|
Power Consumption |
9.2 W
|
Others |
---|
Certifications |
CE, RoHS
|
Package Contents |
• Wi-Fi Range Extender (ME30)
• Quick Installation Guide
|
Environment |
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
|
|
