- Eliminate WiFi Dead Zones — Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly

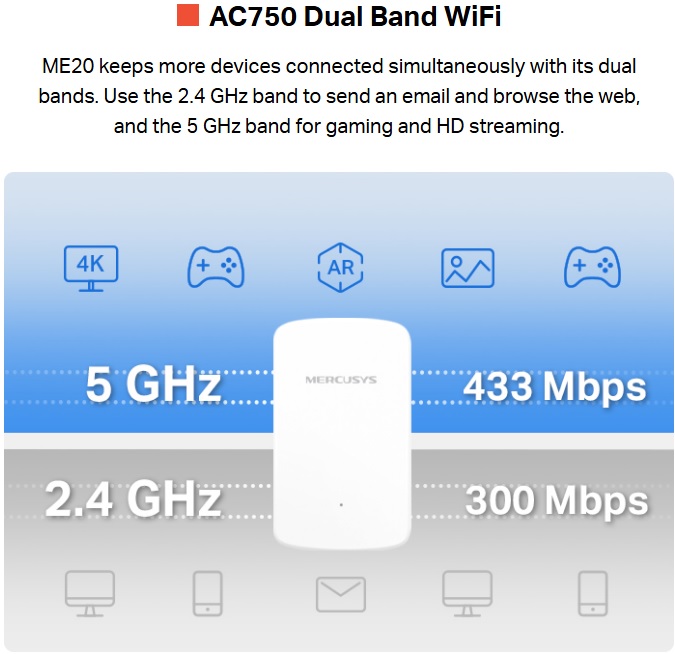

- AC750 Dual Band WiFi — Keep your whole home connected with strong WiFi expansion at a combined speed of up to 750 Mbps
- Easy One-Touch Setup — Simply press the WPS button to expand your WiFi coverage in seconds
- Signal Indicator — Multicolor LED helps you find the right location for your range extender for the best WiFi extension
- Fast 10/100 Mbps Port — Provides speedy wired connections for PCs, IPTVs, and game consoles
- Works with Any Router or Wireless Access Point
Extend WiFi to Where You Need It Most
A single router always has limited coverage and leaves WiFi dead spots in your home. ME20 boosts the existing WiFi range of your
host router to the previously unreachable or hard-to-wire areas flawlessly, providing stable and fast dual-band WiFi wherever you
need it.

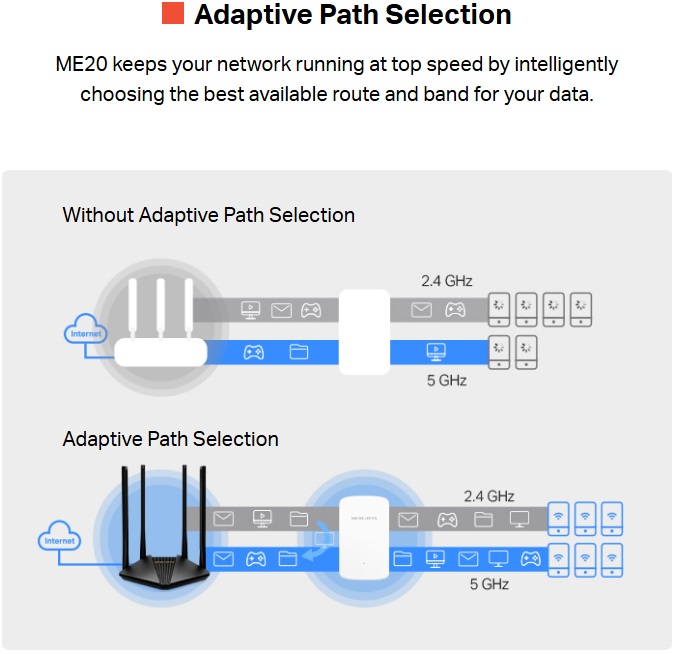

Keep It Fast, Always

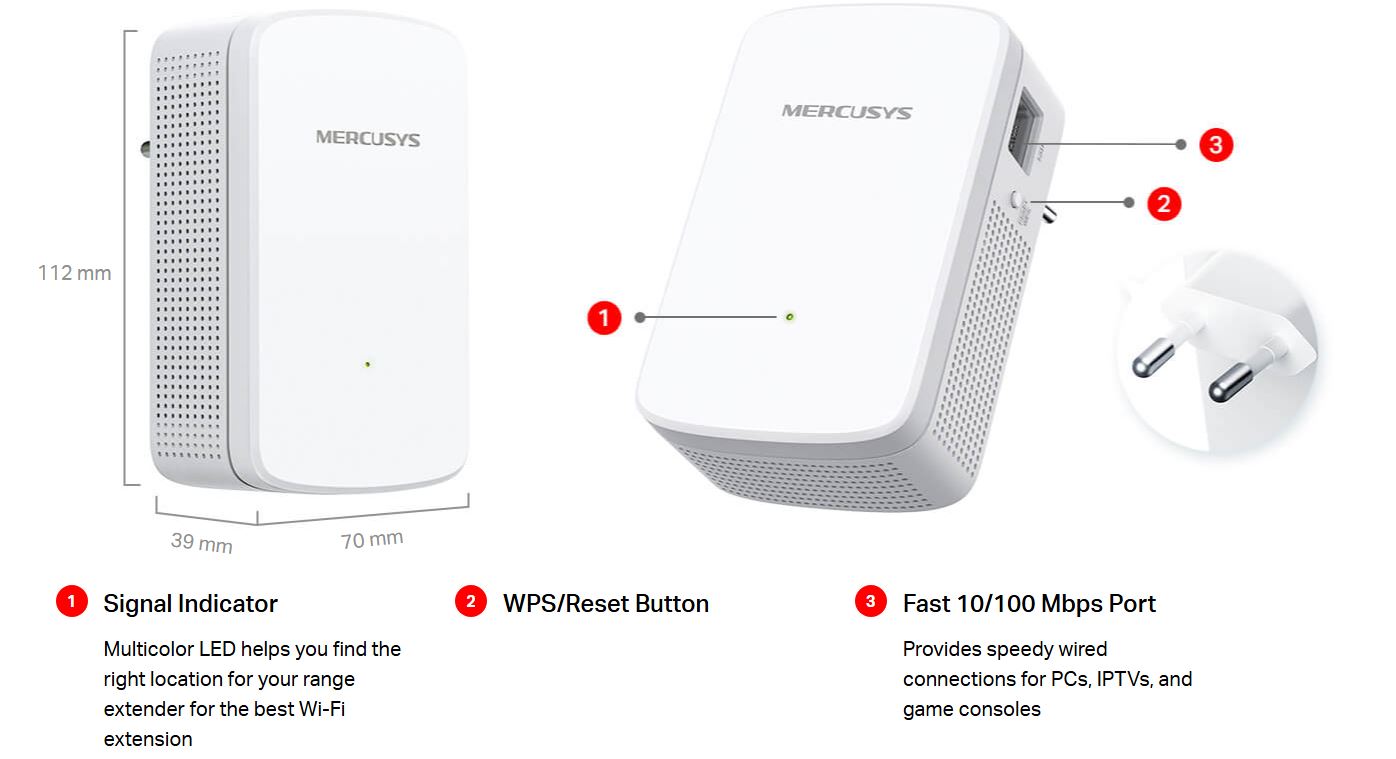

Appearance
Specification
| Wireless |
|---|
| Wireless Standards |
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
|
| Frequency |
2.4 GHz - 2.5 GHz, 5 GHz
|
| WiFi Speeds |
Up to 750 Mbps (433 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)
|
| Reception Sensitivity |
5 GHz:
11AC VHT80 MCS9＜ -63dBm
2.4 GHz:
11N HT40 MCS7＜ -71dBm
|
| Transmission Power |
2.4 GHz: ≤30dBm; 5 GHz: band1&band4 ≤30dBm; band2&band3 ≤24dBm
|
| Wireless Security |
WPA-PSK/WPA2-PSK/WPA3
|
| Hardware |
|---|
| Dimensions |
112*84.7*39 mm
|
| Interfaces |
10/100 Mbps RJ45 Port
|
| Button |
RESET/WPS Button
|
| Power Consumption |
7.2 W
|
| Others |
|---|
| Certifications |
NCC, RoHS
|
| Package Contents |
• Wi-Fi Range Extender (ME20)
• Quick Installation Guide
|
| Environment |
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
|
|
