- 4G+ network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.

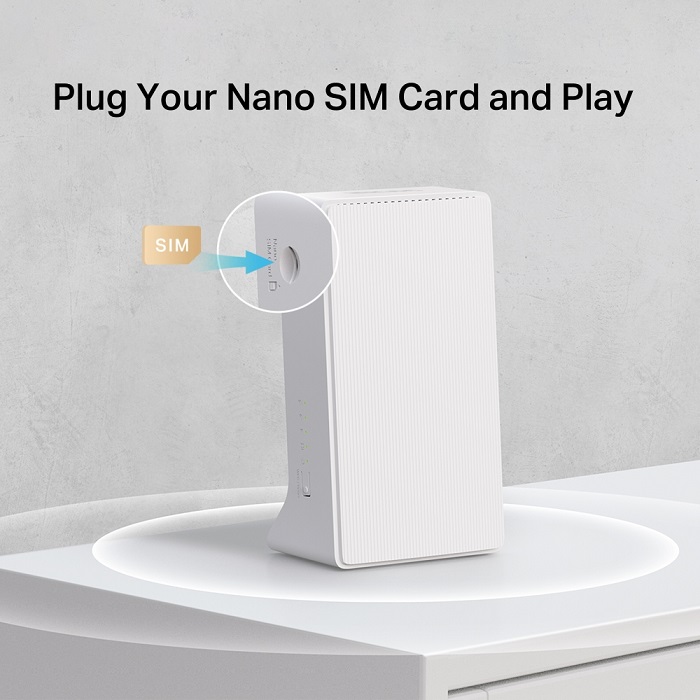

- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
- Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
- Simultaneous Connection– Enjoy and share internet access with up to 64 Wi-Fi devices.
- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.

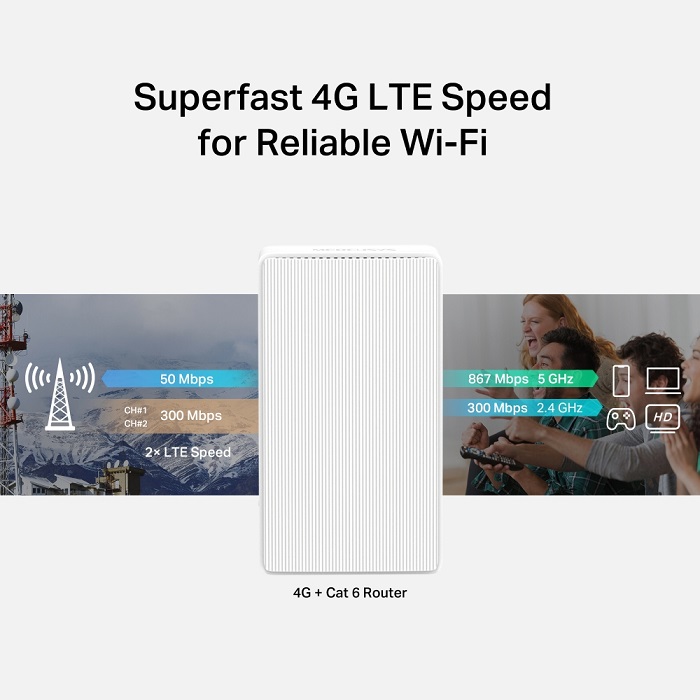

Extra Fast 4G+ Cat 6 Speed for Reliable Wi-Fi
MB230-4G supports the 4G+ Cat 6, which uses Carrier Aggregation technology, to achieve superfast LTE speeds up to 300 Mbps
download and 50 Mbps upload. It can also share a dual band Wi-Fi network for gaming, streaming, and more.
Full with Strong and Stable Signal

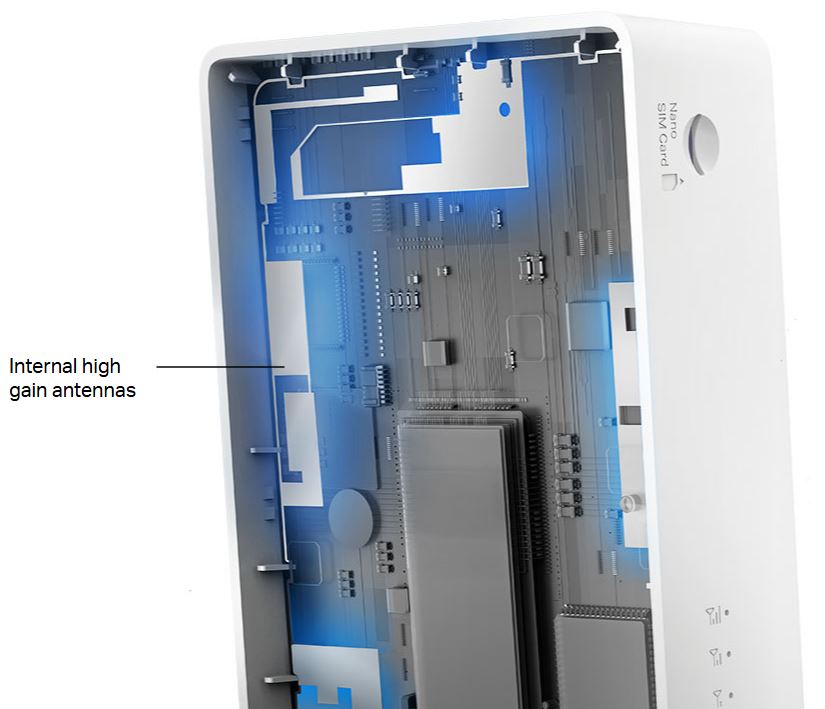

Internal high gain antennas strengthen the WiFi signal, extend the range of connection establishment, and boost the sensitivity of the router.

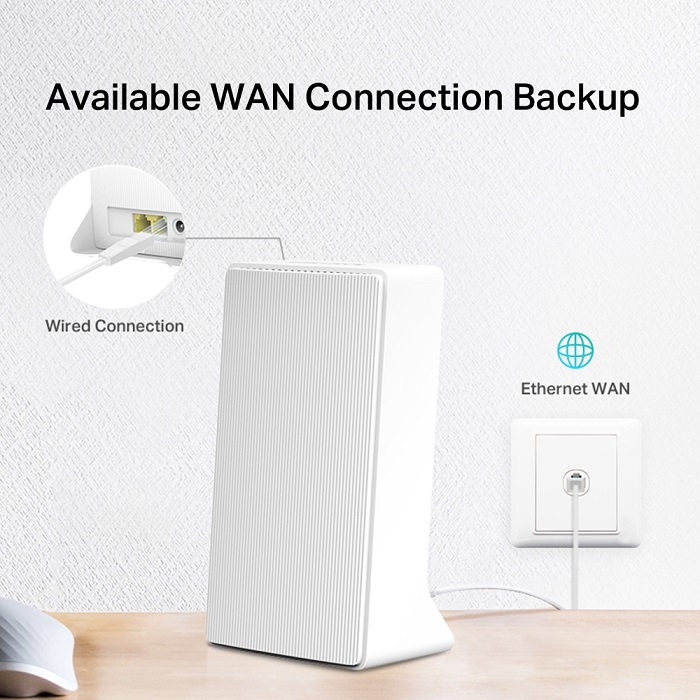

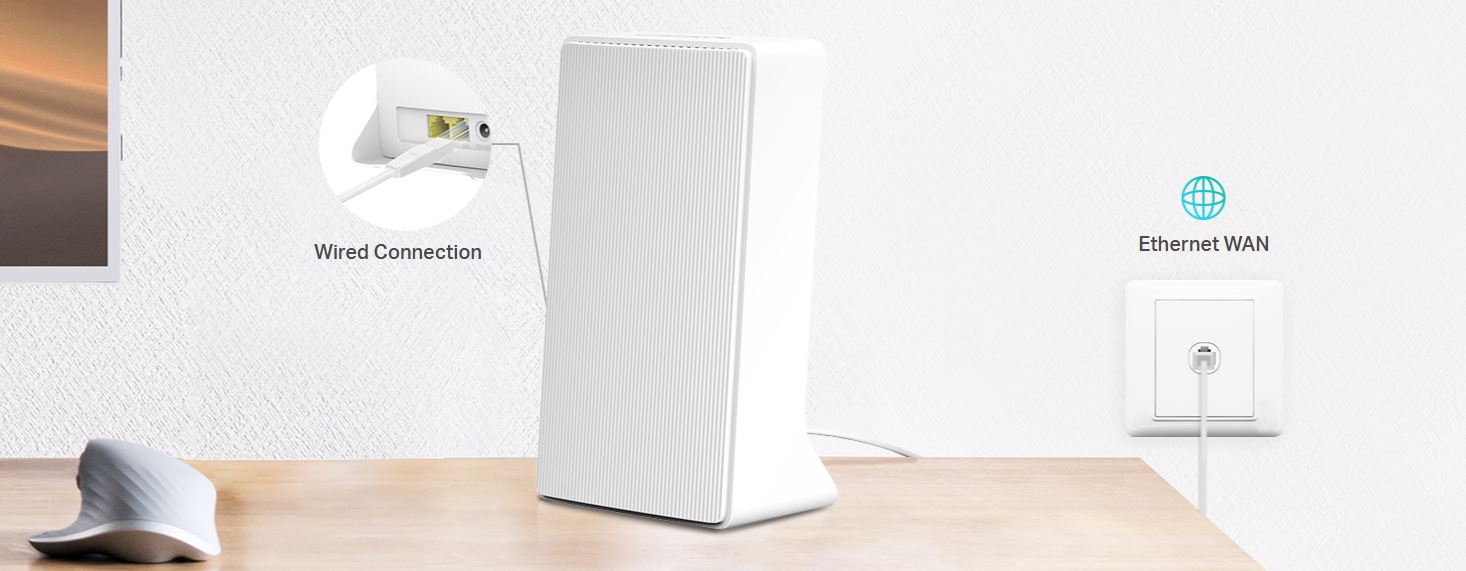

Available WAN Connection Backup
With a fully functional WAN/LAN port, MB230-4G can work as a router which is compatible with cable, fiber, and DSL modems, or
provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.
Specification
| Wireless |
|---|
| Wireless Standards |
IEEE 802.11ac/a/b/g/n
|
| Frequency |
5 GHz, 2.4 GHz
|
| WiFi Speeds |
867 Mbps at 5 GHz
300 Mbps at 2.4 GHz
|
| Reception Sensitivity |
11g 6Mbps: -95dBm
11g 54Mbps: -77dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm
11a 6Mbps: -92dBm
11a 54Mbps: -75dBm
11ac VHT20 MCS8: -70dBm
11ac VHT40 MCS9: -65dBm
11ac VHT80 MCS9: -61dBm
|
| Transmission Power |
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
|
| Wireless Security |
WPA-PSK / WPA2-PSK / WPA3-SAE
|
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
|
| Hardware |
|---|
| Dimensions |
95×61.05×165.97 mm
|
| Interfaces |

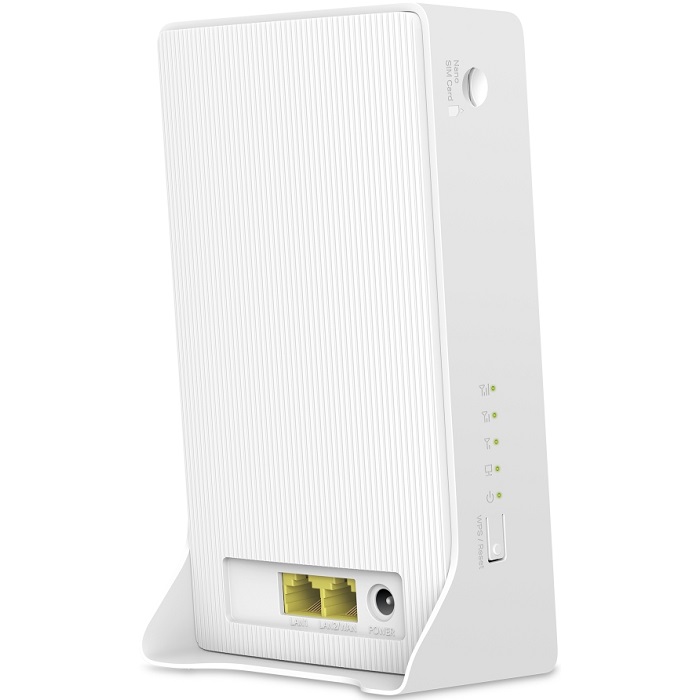

1× Gigabit LAN/WAN Port
1× Gigabit LAN Port
1× Nano SIM Card Slot
|
| Button |
WPS/Reset Button
|
| Network Type |
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
|
| Others |
|---|
| Package Contents |
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB230-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
|
| Environment |
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
|
|
