- 4G network – Enjoy the 4G LTE download speeds up to 150 Mbps.
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
- Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
- Simultaneous Connection– Share internet access with up to 32 Wi-Fi devices.
- External Antennas Ports – Plug in your 4G/3G Antennas to enhance the Network Signal.
- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.
Superfast 4G LTE Speed for Reliable Wi-Fi
Working as a 4G router, the MB130-4G uses 4G LTE technology to achieve super-fast speeds up to 150 Mbps download and 50
Mbps upload. It can also share a dual-band Wi-Fi network with speeds of 867 Mbps on 5 GHz for bandwidth-intensive tasks like HD streaming and gaming and 300 Mbps on 2.4
GHz for internet surfing, email, and social media.

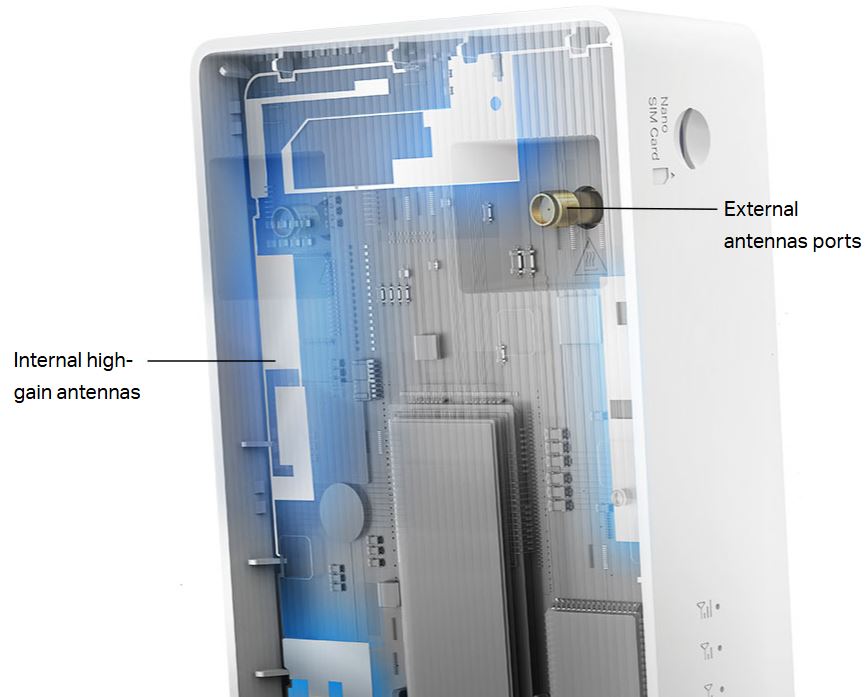

Full of Strong and Stable Signal
Internal high-gain antennas strengthen the WiFi signal, extend the range of connection establishment, and boost the sensitivity of the router. Additionally, by connecting your extra 4G antennas to the external antenna ports, you may further strengthen the signal.

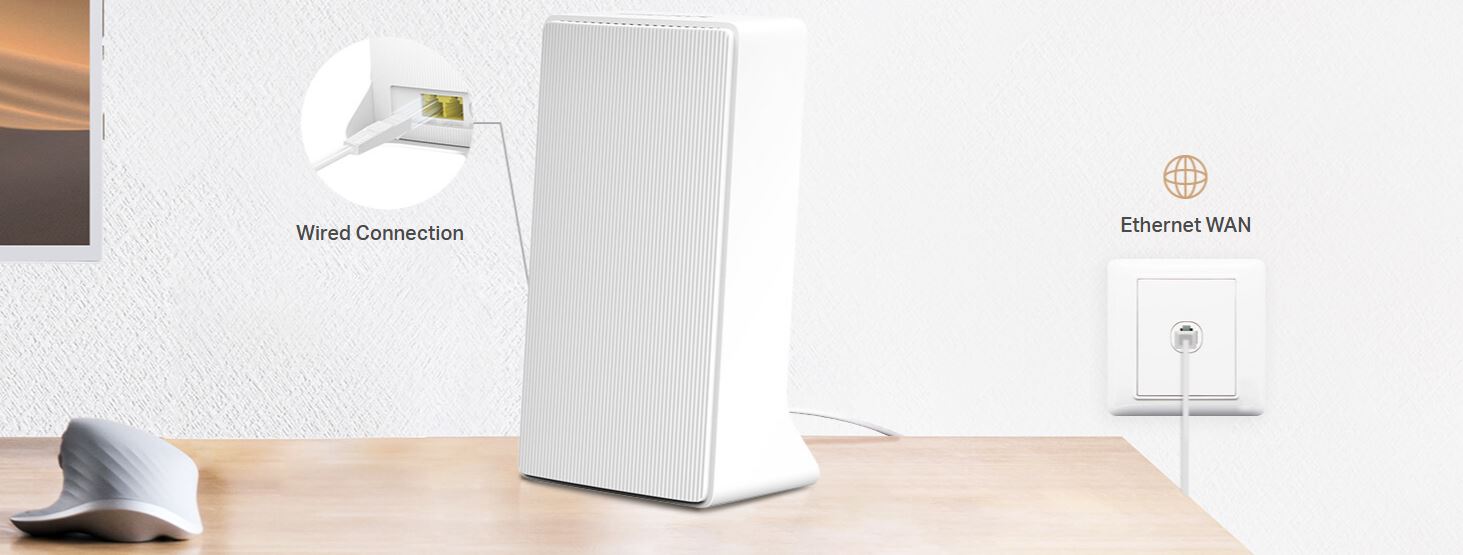

Available WAN Connection Backup
With a fully functional WAN/LAN port, MB130-4G can work as a router that is compatible with cable, fiber,
and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.
| Wireless |
|---|
| Wireless Standards |
IEEE 802.11ac/a/b/g/n
|
| Frequency |
5 GHz, 2.4 GHz
|
| WiFi Speeds |
867 Mbps at 5 GHz
300 Mbps at 2.4 GHz
|
| Reception Sensitivity |
11g 6Mbps: -95dBm
11g 54Mbps: -77dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm
11a 6Mbps: -92dBm
11a 54Mbps: -75dBm
11ac VHT20 MCS8: -70dBm
11ac VHT40 MCS9: -65dBm
11ac VHT80 MCS9: -61dBm
|
| Transmission Power |
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
|
| Wireless Security |
WPA-PSK / WPA2-PSK
|
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
|
| Hardware |
|---|
| Dimensions |
95×61.05×165.97 mm
|

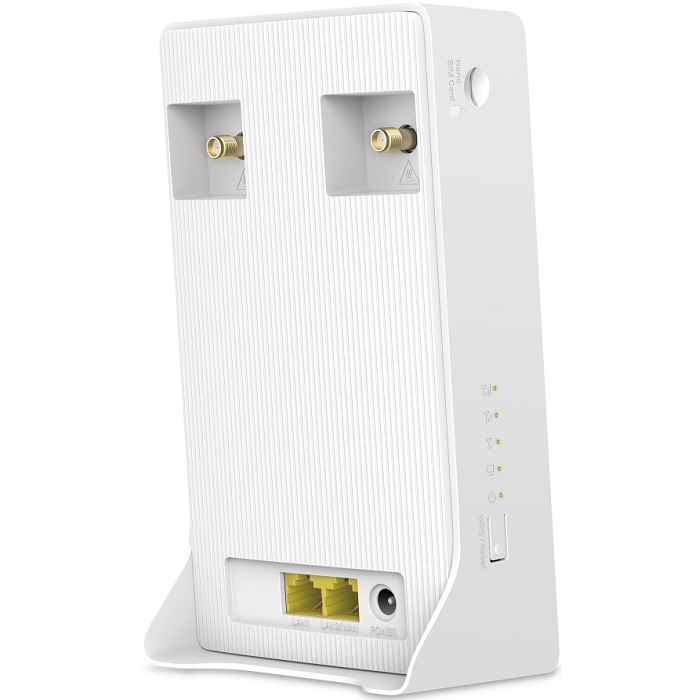

| Interfaces |
1× 10/100Mbps LAN/WAN Port
1× 10/100Mbps LAN Port
2× 4G/3G External Antenna Ports
1× Nano SIM Card Slot
|
| Button |
WPS/Reset Button
|
| Ethernet Ports |
1× 10/100 Mbps LAN/WAN Port +
1× 10/100 Mbps LAN
|
| Network Type |
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
|
| Others |
|---|
| Package Contents |

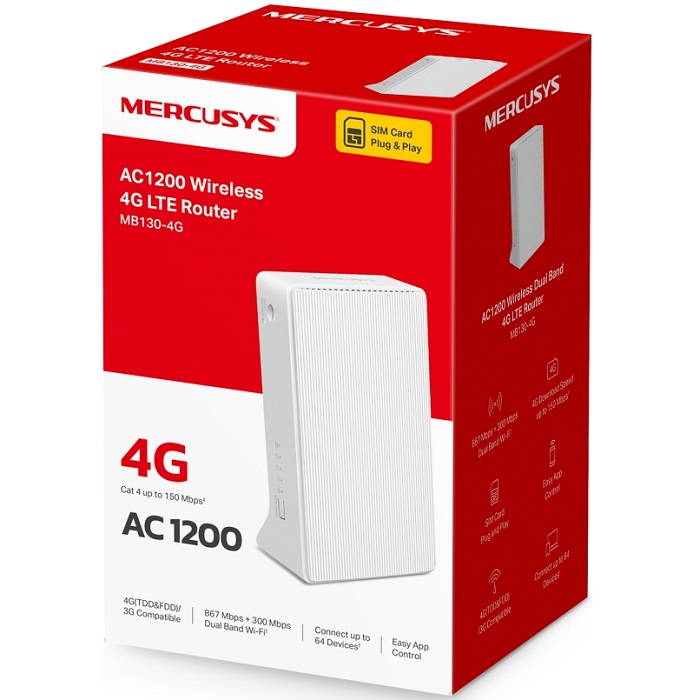

AC1200 Wireless Dual Band 4G LTE Router (MB130-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
|
| Environment |
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
|
|
