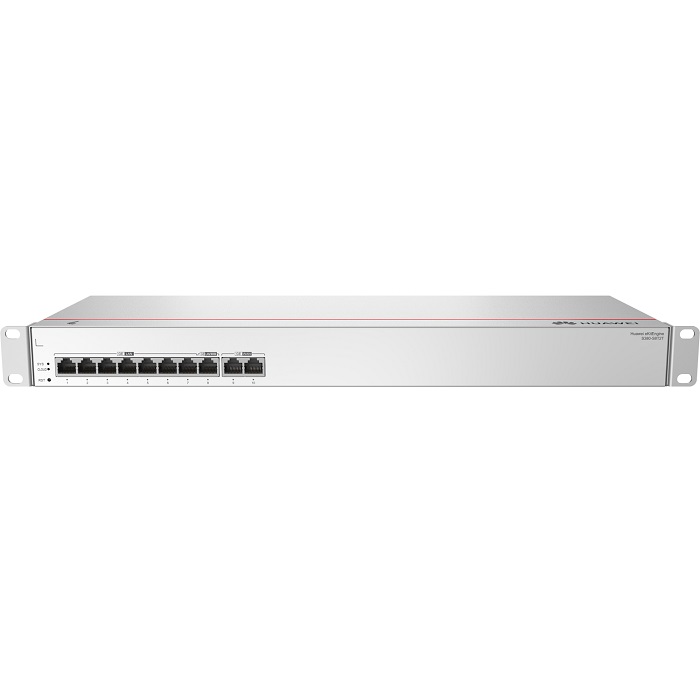

Huawei S380-S8T2T is a multi-service gateway that can serve up to 300 users with its performance. It has (2) Gbit WAN port and (8) Gbit LAN
ports for connecting devices in a local network. Rackmount version, which is powered directly from mains with 230V AC voltage. Thanks to the maximum consumption of 10,55W, there is no need for active cooling, therefore the router is fanless.
Huawei eKitEngine S380 series Multi-Service Gateway include various models, such as those with 4 downlink GE electrical ports, 8 downlink GE
electrical ports (PoE/non-PoE ports), or GE uplink ports. With features like easy installation and deployment, as well as flexible Ethernet
networking, the products can be widely used for indoor coverage in SME markets such as SOHO enterprise office, economic hotels, factories,
primary and secondary education, and building security.

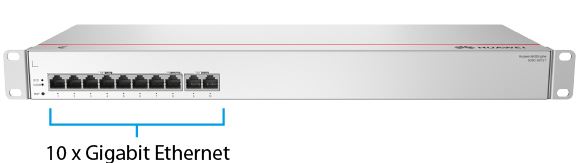

10x gigabit Ethernet
The device is equipped with 10 gigabit Ethernet ports (10/100/1000 Mb/s), including 2 WAN ports and 8 LAN ports. The switching throughput is 16 Gb/s, and the packet forwarding speed is 500 Kp/s during transmission and 420 Kp/s during reception. The S380-S8T2T serves, among other functions, as an efficient switch.
Built-in controller
The S380-S8T2T can serve as a controller (WAC) for eKitEngine access points. You can connect a maximum of 64 access points and up to 300 users simultaneously to the device. These capabilities are fully sufficient for small and medium-sized networks.
Router functionality
The offered product also functions as a router, supporting NAT and DHCP server functionalities. An additional advantage is the load balancing feature, allowing you to utilize multiple WAN ports simultaneously. This ensures that your network is protected against potential outages from any single operator.
Management is conducted via a graphical Web interface, an application, or through SSH. The software enables you to monitor the network's status and diagnose any issues that may arise during its operation.
Specification
| Huawei S380-S8T2T |
| Maximum user |
300 |
| Switching capacity |
16 Gb/s |
| Packet forwarding rate |
Upload: 500 Kp/s
Download: 420 Kp/s
|
| Egress bandwidth |
2 Gb/s |
| Fixed WAN port |
2x gigabit Ethernet 10/100/1000 Mb/s
|
| Fixed LAN port |
8x gigabit Ethernet 10/100/1000 Mb/s |
| MAC address entry |
2K |
Chassis dimensions
(H x W x D) |
43,6 x 442 x 160 mm |
| Chassis height |
1U |
| Weight |
1,6 kg |
| Power module type |
Built-in AC |
| Rated input voltage |
100 - 240 V AC, 50/60 Hz |
| Input voltage range |
90 - 264 V AC, 45 - 65 Hz |
| Maximum power consumption |
10,55 W |
| Long-term operating temperature |
0°C to 40°C (0 m to 1800 m) |
| Storage temperature |
–40°C to +70°C |
| Relative humidity |
5% to 95% (non-condensing) |
| Heat dissipation mode |
Natural heat dissipation |
| Service Features |
| Interface basics |
VLAN
Jumbo frame
Port Up/Down detection
Port auto-negotiation
VLANIF interface |
| Ethernet basics |
16 VLANs
Port types: access, trunk, and hybrid
Port-based VLAN assignment
Automatic MAC address learning
Automatic MAC address aging and static MAC address entries
MAC Filtering |
| IPv4 unicast routing |
Static routing |
| WAN optimization |
Load balancing: terminal IP address–based and connection-based |
| User access |
DHCP server/client, DNS client, PPPoE client,ACL, and NAT |
| Device management |
Web system
APP
SSH |
| Device maintenance |
Ping
Tracert
One-click diagnosis
|
