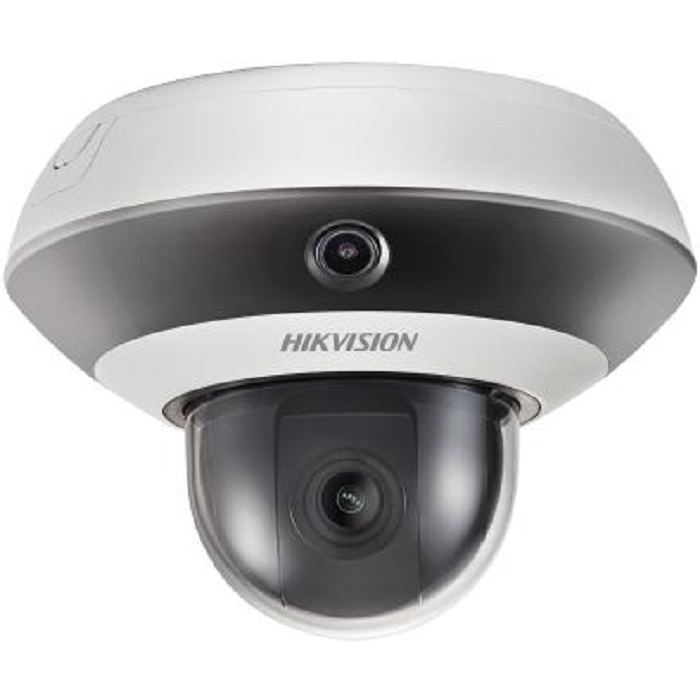

Hikvision PT3 Mini PanoVu DS-2PT3122IZ-DE3(2.8-12mm)(2mm)
Hikvision PT3 Mini PanoVu DS-2PT3122IZ-DE3(2.8-12mm)(2mm)
AED 840
Hikvision PT3 Mini PanoVu DS-2PT3122IZ-DE3(2.8-12mm)(2mm)
Hikvision
AED 840 inclusive of VAT

Hikvision PT3 Mini PanoVu DS-2PT3122IZ-DE3(2.8-12mm)(2mm)

  • Model:  DS-2PT3122IZ-DE3
  • SKU:                   203910
  • Condition:        New
  • Availability:      In Stock
About this Item
  • Brand: Hikvision
  • PoE: easy installation with Power over Ethernet technology
    • AED 840 inclusive of VAT
    Pay 4 interest-free payments of AED 210.00 , no interest/fees. Learn more
    • 1 year hassle free warranty claims
    • Delivery time is next working day, You can connect to support team to get exact delivery time.
    Description - Hikvision PT3 Mini PanoVu DS-2PT3122IZ-DE3(2.8-12mm)(2mm)

    Specification

    • Camera
    • Image Sensor1/2.8" progressive scan CMOS
    • Min. Illumination

      Color: 0.05 Lux @(F2.0, AGC ON)

      B/W: 0.01 Lux @(F2.0, AGC ON)

      0 Lux with IR

    • Day &NightIR Cut Filter
    • Lens
    • FOV

      [panoramic channel]

      Horizontal field of view: 128.5°

      Vertical field of view: 75.7°

      Diagonal field of view: 144°

      [PTZ channel]

      4mm：

      Horizontal field of view: 89.7°

      Vertical field of view: 47.5°

      Diagonal field of view: 108°

      6mm：

      Horizontal field of view: 54.6°

      Vertical field of view: 31.3°

      Diagonal field of view: 62.4°

      8mm：

      Horizontal field of view: 43°

      Vertical field of view: 23.5°

      Diagonal field of view: 50.3°

      2.8-12mm：

      Horizontal field of view: 120° to 56.6° (wide - tele)

      Vertical field of view: 61.8° to 31.7° (wide - tele)

      Diagonal field of view: 149° to 65° (wide - tele)

    • Focal Length

      [panoramic channel]: 2mm

      [PTZ channel]: 4mm, 6mm, 8mm, 2.8-12mm

    • Aperture RangeF2.0
    • Smart Features
    • Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
    • Smart DetectionAudio Exception Detection, Intrusion Detection, Line Crossing Detection
    • Smart RecordANR (Automatic Network Replenishment)
    • Smart Image EnhancementHLC/BLC/3D DNR/Regional Exposure
    • Network
    • Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
    • Interface
    • Audio interface1-ch audio input and 1-ch audio output
    • Camera Module
    • Privacy Mask

      [panoramic channel]：4 programmable privacy masks

      [PTZ channel]：8 programmable privacy masks

    • General
    • Power Supply

      12 VDC, 1.6 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4

      Max.19 W (Max. 2 W for IR)

    • MaterialPC + ABS & Aluminum alloy
    • DimensionsΦ 183 mm × 133.2 mm (Φ 7.20" × 5.24")
    • WeightApprox. 0.9 kg (1.98 lb)
    • Protection Level2000V Lightning Protection, Surge Protection and Voltage Transient Protection
    • Working Temperature-10°C to 50°C (14°F to 122°F)
    • Working Humidity≤ 90%
    Read more
    Specification - Hikvision PT3 Mini PanoVu DS-2PT3122IZ-DE3(2.8-12mm)(2mm)
    Shipping Information
    Varsai SKU 203910
    Brand Hikvision
    Model DS-2PT3122IZ-DE3
    Warranty 1 Year   Hassle free warranty claims
    Shipping Weight 1.20000000 kg
    Shipping Dimensions 18.30000000 cm x 18.30000000 cm x 13.32000000 cm
