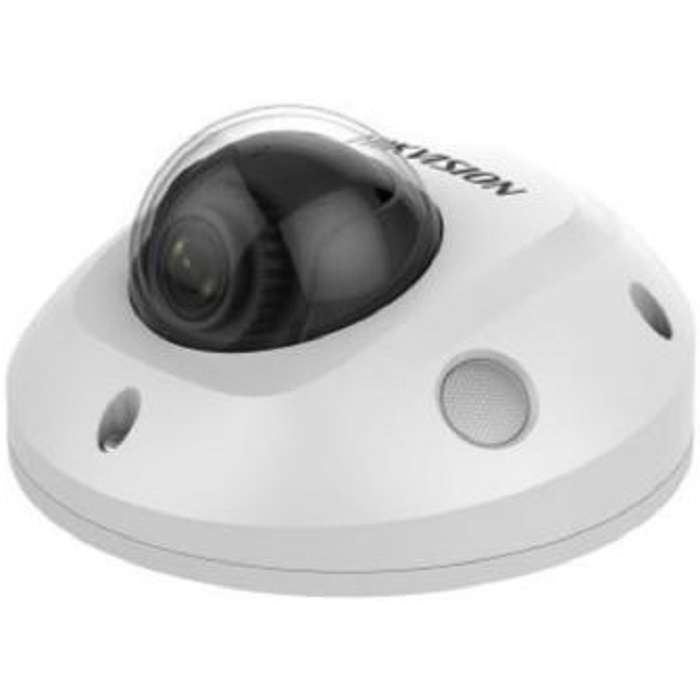

Hikvision 6 MP Outdoor WDR Fixed Mini Dome Network Camera DS-2CD2563G0-IS
Hikvision 6 MP Outdoor WDR Fixed Mini Dome Network Camera DS-2CD2563G0-IS
AED 331
Hikvision 6 MP Outdoor WDR Fixed Mini Dome Network Camera DS-2CD2563G0-IS
Hikvision
AED 331 inclusive of VAT

Hikvision 6 MP Outdoor WDR Fixed Mini Dome Network Camera DS-2CD2563G0-IS

  • Model:  DS-2CD2563G0-IS
  • SKU:                   203717
  • Condition:        New
  • Availability:      In Stock
About this Item
  • Brand: Hikvision
    • AED 331 inclusive of VAT
    Pay 4 interest-free payments of AED 82.75 , no interest/fees. Learn more
    • 1 year hassle free warranty claims
    • Delivery time is next working day, You can connect to support team to get exact delivery time.
    Description - Hikvision 6 MP Outdoor WDR Fixed Mini Dome Network Camera DS-2CD2563G0-IS

    Specification

    • Camera
    • Image Sensor1/2.9" Progressive Scan CMOS
    • Min. IlluminationColor: 0.028 lux @(F2.0, AGC ON), 0 lux with IR on
    • Shutter Speed1/3 s to 1/100,000 s
    • Slow ShutterYes
    • Wide Dynamic Range120 dB
    • Day & NightIR Cut Filter
    • Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
    • Lens
    • Lens Type2.8, 4, 6 mm
    • FOV

      2.8 mm, horizontal FOV: 97°, vertical FOV: 67°, diagonal fov: 121°

      4 mm, horizontal FOV: 78°, vertical FOV: 53°, diagonal FOV: 98°

      6 mm, horizontal FOV: 60°, vertical FOV: 41°, diagonal FOV: 76°

    • ApertureF2.0
    • Lens MountM12
    • Illuminator
    • IR RangeUp to 10 m
    • Wavelength850 nm
    • Video
    • Max. Resolution3072 × 2048
    • Main Stream

      50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656)

      25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

      60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656)

      30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    • Sub-Stream

      50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

      60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

    • Third Stream

      50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)

      60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)

    • Video Compression

      Main stream: H.265/H.264

      Sub-stream: H.265/H.264/MJPEG

      Third stream: H.265/H.264

    • Video Bit Rate32 Kbps to 16 Mbps
    • H.264 TypeMain Profile/High Profile
    • H.265 TypeMain Profile
    • H.264+Main stream supports
    • H.265+Main stream supports
    • Scalable Video Coding (SVC)Support H.264 and H.265 encoding
    • Audio
    • Environment Noise FilteringYes
    • Audio Sampling Rate16 kHz, 32kHz, 44.1kHz, 48kHz
    • Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
    • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
    • Network
    • Simultaneous Live ViewUp to 6 channels
    • APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
    • ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    • User/HostUp to 32 users. 3 levels: administrator, operator and user
    • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
    • Network StorageSupport Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
    • Client

      Wired network: Hik-Connect, iVMS-4200, Hik-Central

      Wi-Fi: iVMS-4200, Hik-Central

      *Wi-Fi connection with Hik-Connect directly is not possible.

    • Web Browser

      Plug-in required live view: IE8+

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

      Local Service: Chrome 41.0+, Firefox 30.0+

    • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
    • Wi-Fi
    • Encryption Mode-W: WPA, WPA2
    • Wi-Fi Protocol-W: IEEE 802.11b/g/n
    • Frequency Range-W: 2.412 GHz to 2.4835 GHz
    • Channel Bandwidth -W: 20 MHz
    • Transfer Rate

      -W:

      11b: 11 Mbps

      11g: 54 Mbps

      11n: up to 150 Mbps

    • Wireless Range-W: Up to 50 m (The performance varies based on actual environment)
    • Image
    • Day/Night SwitchAuto/Schedule/Day/Night/Triggered by Alarm In (-S)
    • Image EnhancementBLC/3D DNR/HLC
    • Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
    • Interface
    • Audio

      -S:

      2 inputs: line in or mic in (built-in microphone)

      1 output: line out, mono sound, terminal block

    • General
    • Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
    • Firmware VersionV5.6.5
    • Web Client Language

      32 languages

      English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

    • General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
    • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
    • Power Supply

      12 VDC ± 25%

      PoE (802.3af, class 3)

    • Approval
    • Protection Ingress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)
    Read more
