The GWN7661E is an in-wall AX3000 Wi-Fi 6 access point designed for offices, hotels, homes, apartments, and more. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi capable IP phones.
Specification |
Client Devices Up to 256 |
2.4G Throughput 573.5Mbps (2x2:2 MU-MIMO) |
5G Throughput 2.4Gbps (3x3:2 MU-MIMO) |
6G THROUGHPUT N/A |
Range Up to 100 Meters |

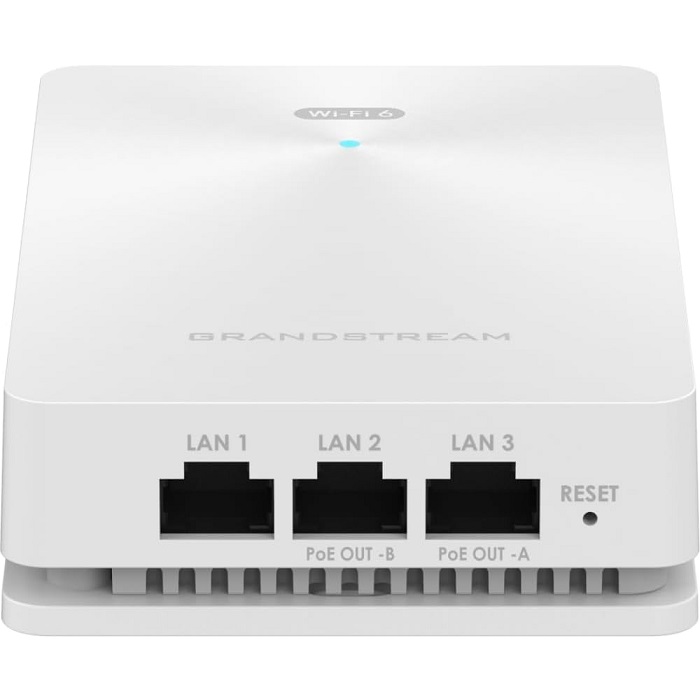

Network Interfaces 1x 10/100/1000M uplink Ethernet port with PoE/PoE+ 2x 10/100/1000M Ethernet port with PSE 1x 10/100/1000M Ethernet port |
PoE/PoE+ Support 802.3az PoE 802.3af/ 802.3at; The maximum output of all PSE ports is 12W; Maximum Power Consumption: 25W |
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax |
SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
Antennas 2x dual-band internal antennas,1x 5G internal antenna |
Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
Dimensions 135mm(L) x 86mm(W) x 38.5mm(H) |

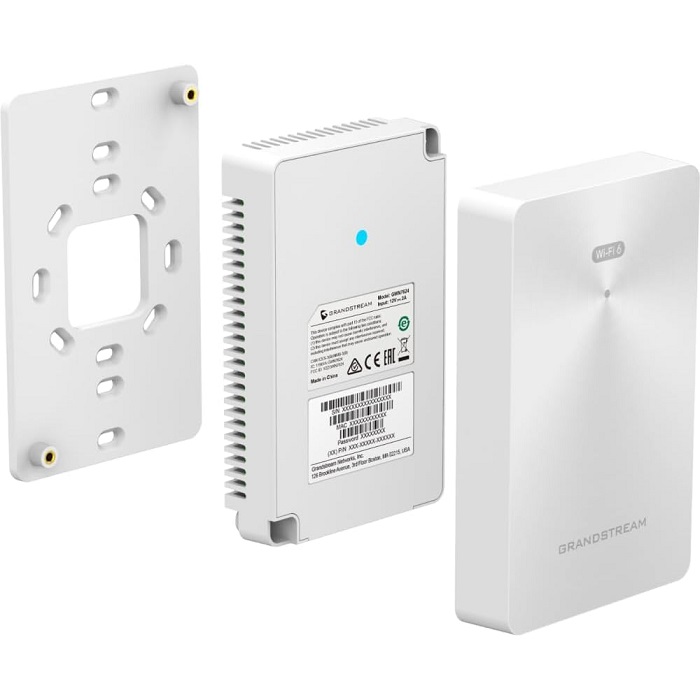

Mounting In-Wall Mountable |
