Flexible door release/locking: Heavy dangling keys are now a thing of the past. This Wi-Fi doorbell with camera offers you much easier access controls. You can open your door using the intelligent RFID, via the indoor monitor or EZVIZ app.
-

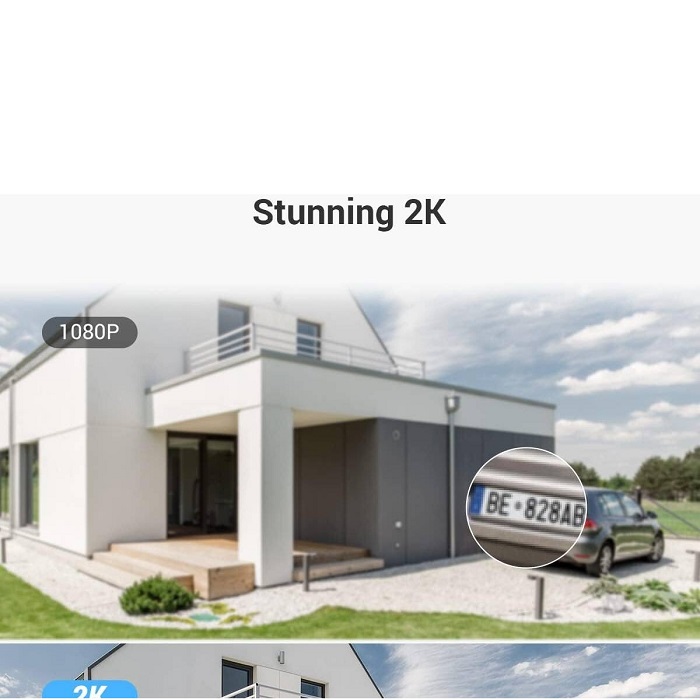

2K resolution and 162° vision: This door intercom with camera has a viewing angle of 162° and 2K resolution, so you can see the postman from head to toe. This doorbell also offers 5 m IR night vision for your safety all day.
-
Personal recognition and customizable detection range: This door spy camera WALN intelligently recognizes human movements. If an uninvited visitor arrives, he will send you a notification immediately. You can always adjust the detection sensitivity or block certain areas to reduce unwanted warnings.
-

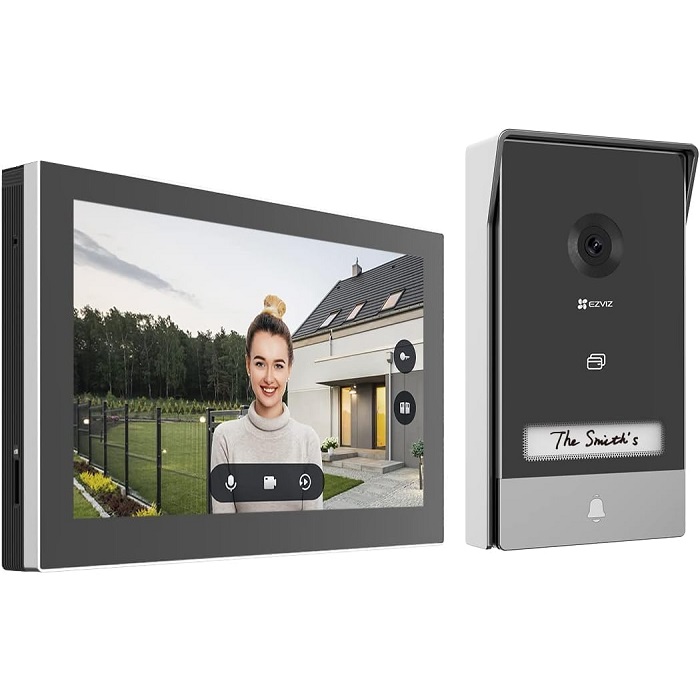

All-in-one touch monitor for communication and control: The 7'' colour touch screen lets you manage your external intercom, respond to visitors and store important video recordings. Every time a visitor knocks on your door, the indoor display automatically lights up to let you know who's outside.
-

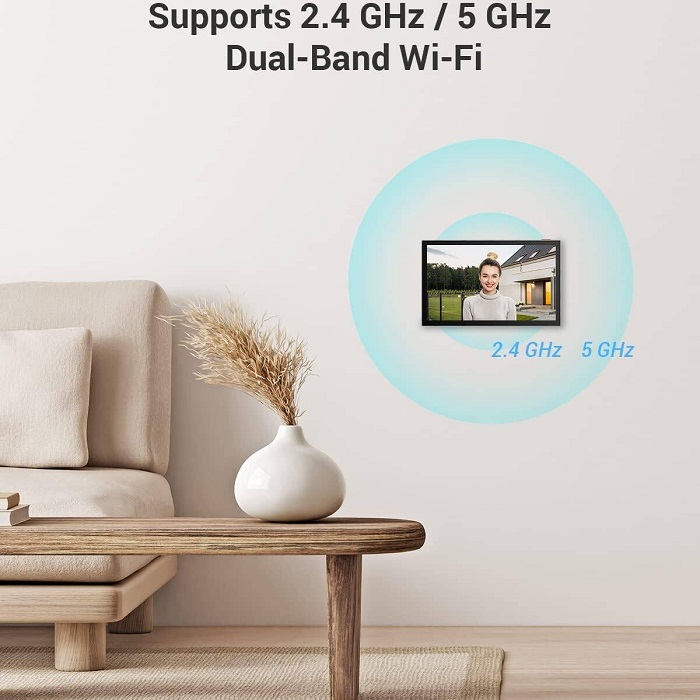

Two-way audio and 2.4/5GHz dual-band WLAN: With this video doorbell you can open the door for guests remotely even when you are not at home. You can connect the indoor monitor to the 2.4 or 5 GHz band to enjoy strong Wi-Fi with lower latency, higher bandwidth and stable signal.

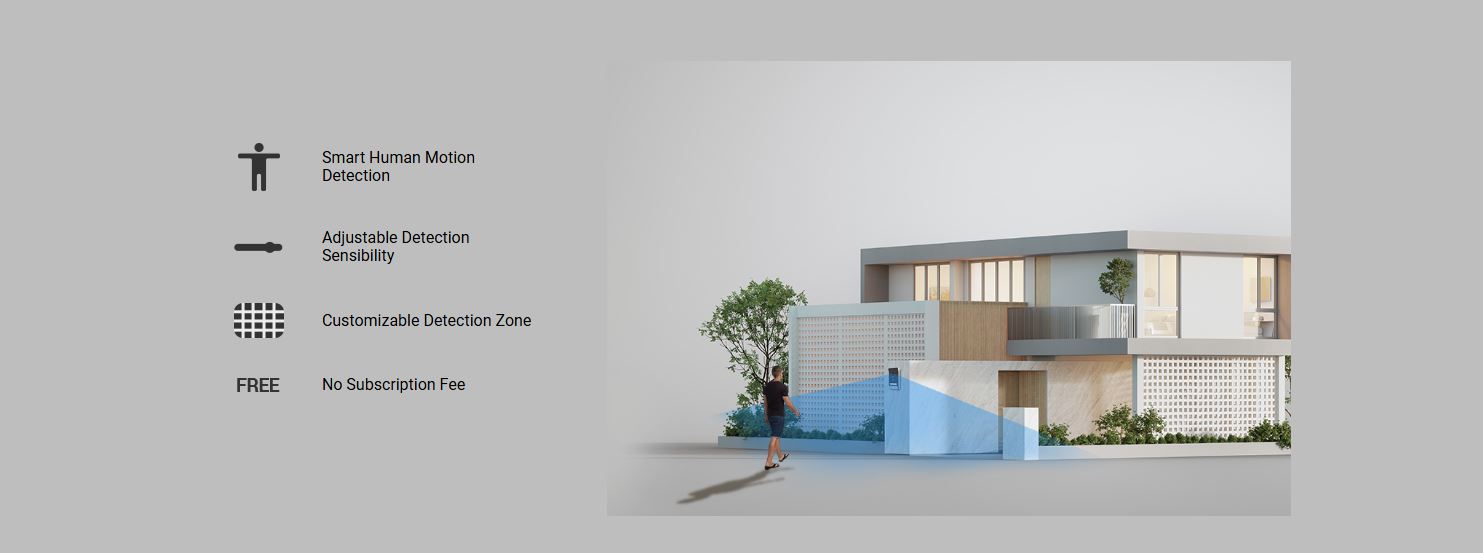

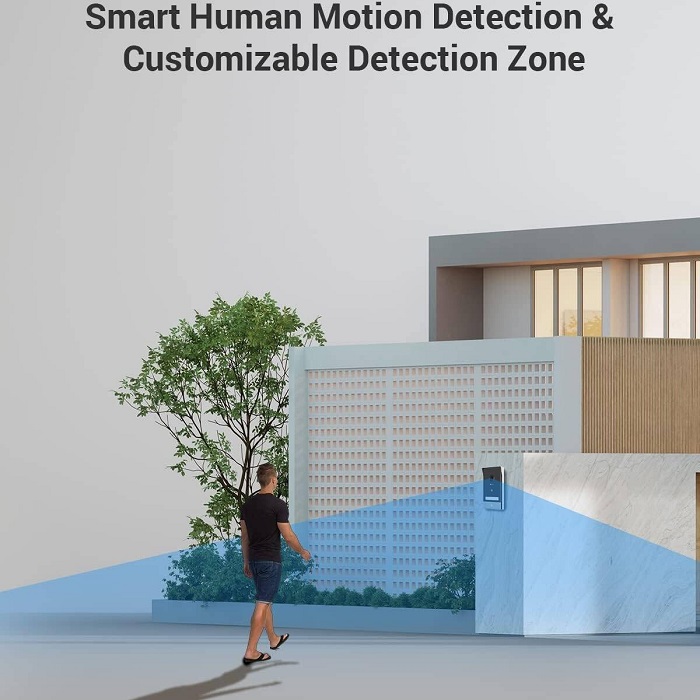

Enhanced security with smart human motion detection
Whenever the HP7 video doorbell detects human activity at your front door, it will send you mobile notifications right away in case there’s an uninvited guest. You can always fine-tune the detection sensitivity and set up specific detection zones to reduce unwanted alerts.
Thoughtful features for additional convenience
Specification
| Model | CS-HP7-R105-1W2TFC |
|
|---|
| Outdoor Doorbell |
|
|---|
| Image Sensor | 1/2.7" Progressive
Scan CMOS (Supports low light sensitivity) |
|
|---|
| Lens | 2.0 mm @ F2.2,viewing
angle: 162° (Diagonal) |
|
|---|
| Day & Night | IR-cut filter with
auto-switching, 850 nm infrared light × 2 (max. 6m) |
|
|---|
| Max. Resolution | 2048 × 1296 |
|
|---|
| DNR | 2D / 3D DNR |
|
|---|
| Video Compression | H.265 / H.264 |
|
|---|
| Frame Rate | Max: 15fps; Self-Adaptive
during network transmission |
|
|---|
| Connection and Function |
|
|---|
| Connection Method | Wired connection (2-Wired,
capable with 4-Wired), digital signal transmission |
|
|---|
| Transmission Distance | Φ 2 x 0.75mm² , max. 50m Φ
2 x 1.5mm² , max. 100m Twisted pair, max. 120m |
|
|---|
| Open the door (Gate) | Support 2 wiring ports.
1-10m distance. The intercom panel provides a “dry”-contact connection,
without an electric current, to connect to the button for automated
gate, gate breaking capacity: 12V / 2A |
|
|---|
| Unlock (Electric strike
plate) | Support 2 wiring ports.
1-10m distance. The electric strike plate or lock that you order must
have a mechanical memory; the power supply to the electric strike plate
or lock must not exceed 12V / 1.1A, otherwise should do as user
manual. |
|
|---|
| Door Open Methods | 1.RFID badge unlock (Badges
× 3 pcs) 2.App remote unlock 3.Indoor display unlock |
|
|---|
| Outdoor Doorbell
Interface |
|
|---|
| Audio Input | Built-in high-sensitivity
microphone |
|
|---|
| Audio Output | Built-in high-power
speaker |
|
|---|
| Doorbell Button | Yes. The light can be set
on or off. |
|
|---|

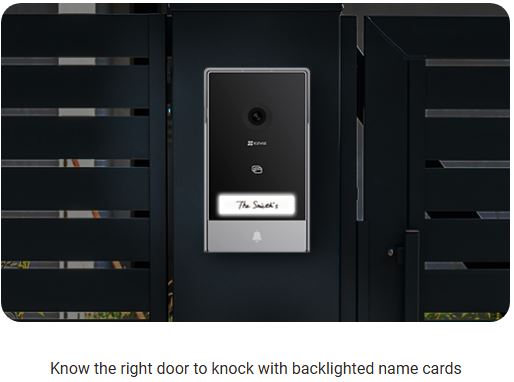

| Name Card | Three handwritten name
cards in total (one already on the intercom panel). The light can be
set on or off. |
|
|---|
| Terminal | Two wiring ports to connect
screen. Two wiring ports to connect gate. Two wiring ports to connect
electric strike plate. |
|
|---|
| Functions |
|
|---|
| Intelligent Alarm | Smart human motion
detection, Lingering Detection |
|
|---|
| Tamper Alarm | Supports |
|
|---|
| Video Intercom | Long-distance video two-way
talk |
|
|---|
| General |
|
|---|
| Operation Conditions | -30°C to 60°C , Humidity
95% or less (non-condensing) |
|
|---|
| IP Grade | Waterproof, with shield
cover |
|
|---|
| Size | 161 × 87 × 20 mm (6.34 ×
3.42 × 0.79 inch) |
|
|---|
| Interior Display |
|
|---|
| Display size | 7” touch screen |
|
|---|
| Resolution | 1024 × 600 |
|
|---|
| Interface |
|
|---|
| Audio Input | Built-in high-sensitivity
microphone |
|
|---|
| Audio Output | Built-in high-power
speaker |
|
|---|
| Button | Screen On / Off Button |
|
|---|
| Terminal | Two wiring ports to connect
1st outdoor doorbell. |
|
|---|
| Storage | Supports microSD card up to
512 GB Supports EZVIZ Cloud storage |
|
|---|
| Network Parameters |
|
|---|
| Protocol | EZVIZ Cloud Proprietary
Protocol |
|
|---|
| Interface Protocol | EZVIZ Cloud Proprietary
Protocol |
|
|---|
| Protocol | EZVIZ Connect Protocol |
|
|---|
| Wi-Fi Parameters |
|
|---|
| Wi-Fi Standard | IEEE802.11b, 802.11g,
802.11n, 802.11ac |
|
|---|
| Frequency Range | 2.4G: 2.4 GHz ~ 2.4835 GHz
5G: 5.15 GHz ~ 5.25 GHz |
|
|---|
| Channel Bandwidth | Supports 20MHz |
|
|---|
| Security | 64 / 128-bit WEP,WPA /
WPA2, WPA-PSK / WPA2-PSK |
|
|---|
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps,
11n: 150Mbps, 11ac: 433.3Mbps |
|
|---|
| Function |
|
|---|

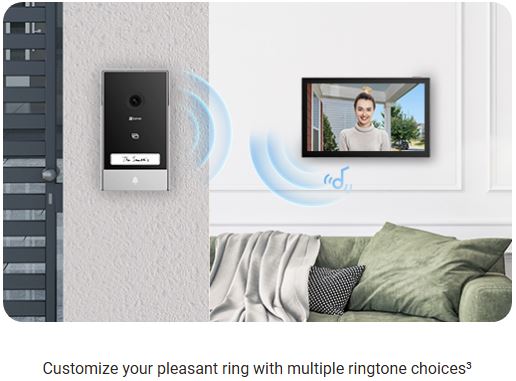

| Multiple ringtones | Up to 20 ringtones |
|
|---|
| Functions | Live view, playback,
two-way talk, video call |
|
|---|
| General |
|
|---|
| Operation Conditions | -10°C to 45°C, humidity 95%
or less (non-condensing) |
|
|---|
| Weight | Net weight: 855 g (30.16
oz) With package: 1825 g (64.37 oz) |
|
|---|
| Size | 180 × 111 × 15 mm (7.09 ×
4.37 × 0.59 inch) |
|
|---|
| Power Supply | DC 24V / 1A power supply, adaptor (100- 240Vac) |
|
|---|
| Power Consumption | 8W, Max. 24W |
|
|---|
