Smarter alerts with upgraded vehicle detection
It reduces alerts caused by falling leaves or flying insects, and informs you when someone parks in your property area without permission.

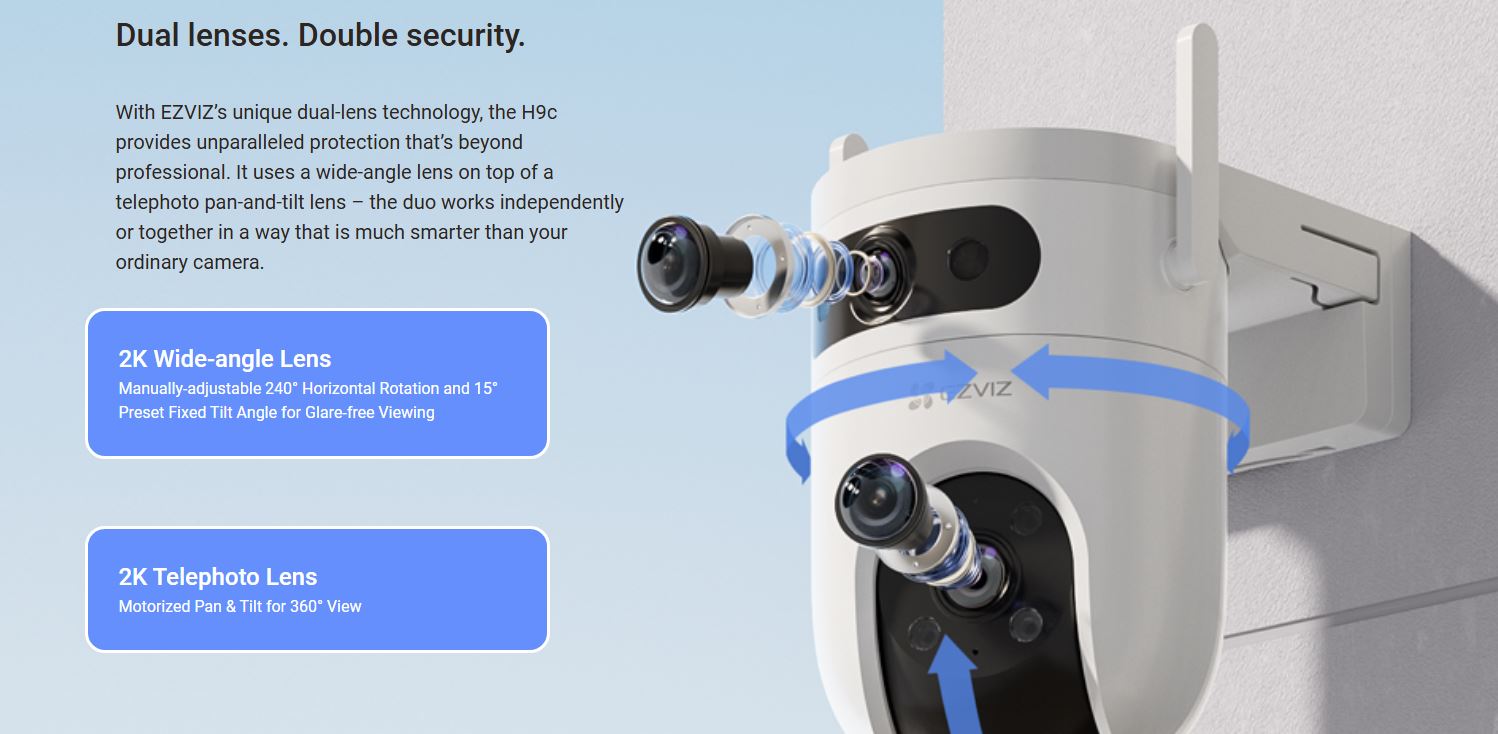

Face two directions, but follow the same activity

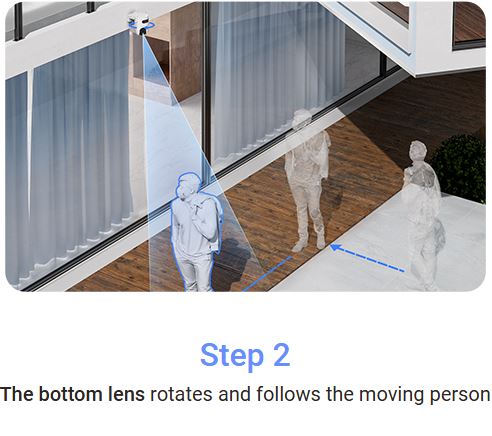

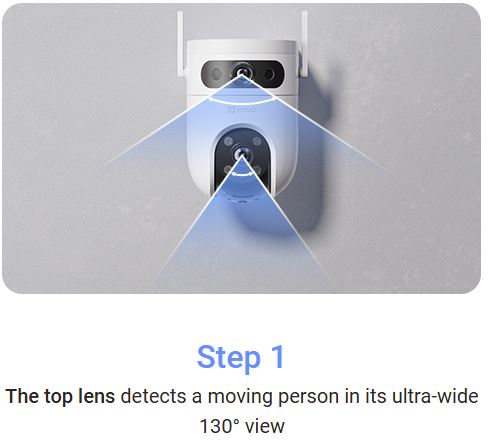

Even if the two lenses are set on opposite viewing angles to secure two different areas, they can complete a single smart tracking task through teamwork. When a human is detected by the upper lens, the PT lens will automatically rotate to such angle to lock on the person and record the whole activity.
Specification
| Model | CS-H9c-R100-8H33WKFL |
|---|
| Camera |
|---|
| Image Sensor | 1/2.7" Progressive
Scan CMOS |
|---|
| Shutter Speed | Self-adaptive shutter |
|---|
| Lens | Upper Camera: 2.8mm@ F1.6,
viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56° Bottom
Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical
28° |
|---|
| PT Angle | Pan: 350°, Tilt: 80° |
|---|
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0
Lux with IR (*data is obtained from EZVIZ laboratories) |
|---|
| Lens Mount | M12 |
|---|
| Day & Night | IR-cut filter with
auto-switching |
|---|
| DNR | 3D DNR |
|---|
| WDR | Digital WDR |
|---|
| Black & White Night | 30m / 98ft |
|---|
| Video & Audio |
|---|
| Max Resolution | 2304 × 1296 |
|---|
| Frame Rate | Max:15fps; Self-Adaptive
during network transmission |
|---|
| Video Compression | H.265 / H.264 |
|---|
| H.265 Type | Main Profile |
|---|
| Video Bit Rate | Quad HD, Full HD, Hi Def,
Standard. Adaptive bit rate. |
|---|
| Audio Bit Rate | Self-Adaptive |
|---|
| Network |
|---|
| Wi-Fi Standard | IEEE802.11b, 802.11g,
802.11n |
|---|
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
|---|
| Channel Bandwidth | Supports 20MHz |
|---|
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps,
11n: 150 Mbps |
|---|
| Wi-Fi Pairing | AP paring |
|---|
| Protocol | EZVIZ cloud proprietary
protocol |
|---|
| Interface Protocol | EZVIZ cloud proprietary
protocol |
|---|
| Wired Network | RJ45 × 1 (10M / 100M
Adaptive Ethernet Port) |
|---|
| Security | WPA-PSK/WPA2-PSK |
|---|
| Functions |
|---|
| Smart Alarm | AI-Powered Human Shape
Detection / AI-Powered Vehicle Shape Detection / Motion Detection |
|---|
| Auto Tracking | Supports |
|---|
| Customized Alert Area | Supports |
|---|
| Two-way Talk | Supports |
|---|
| Preset Locations | Supports |
|---|
| General Function | Anti-Flicker, Dual-Stream,
Heart Beat, Password Protection, Watermark |
|---|
| Storage |
|---|
| Local Storage | Supports microSD Card (Up
to 512 GB) |
|---|
| Cloud Storage | Supports EZVIZ CloudPlay
storage |
|---|
| General |
|---|
| Operating Conditions | -30°C to 50°C ( -22 °F to
122 °F ) Humidity 95% or less (non-condensing) |
|---|
| IP Grade | Weatherproof Design |
|---|
| Power Supply | DC 12V/1.5A |
|---|
| Power Consumption | MAX. 12W |
|---|
| Dimensions | 145 × 116 × 142mm (5.71 ×
4.57 × 5.59 inch) |
|---|
| Packaging Dimensions | 150 × 150 × 194mm (5.90 ×
5.90 × 7.64 inch) |
|---|
| Weight | Net Weight: 668 g With
Package: 960 g |
|---|
