Made to protect broader areas
With no reliance on Wi-Fi access, the H8c 4G operates seamlessly with just a power supply. It can apply to a wide range of situations, meeting your daily requirements for home or property protection effortlessly.
A neat design for all homes, against all weathers

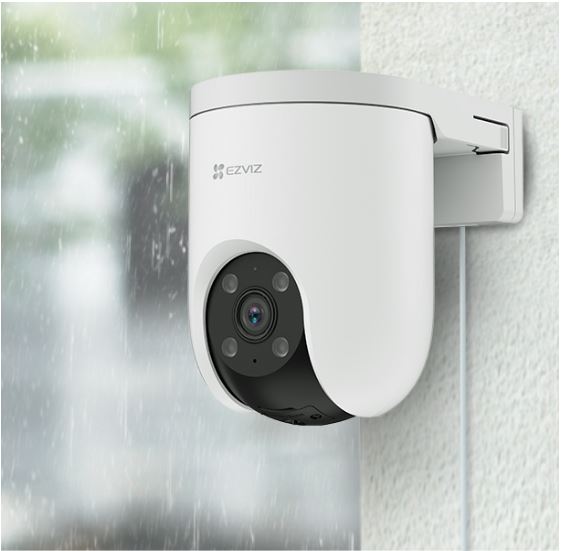

Say goodbye to the bulkiness. The H8c 4G has a compact design, and is weatherproof to deliver long-standing performance, even in harsh weather conditions.
A sharp, smart eye that goes around your property
01 360° plus 2K, for far less blind spots

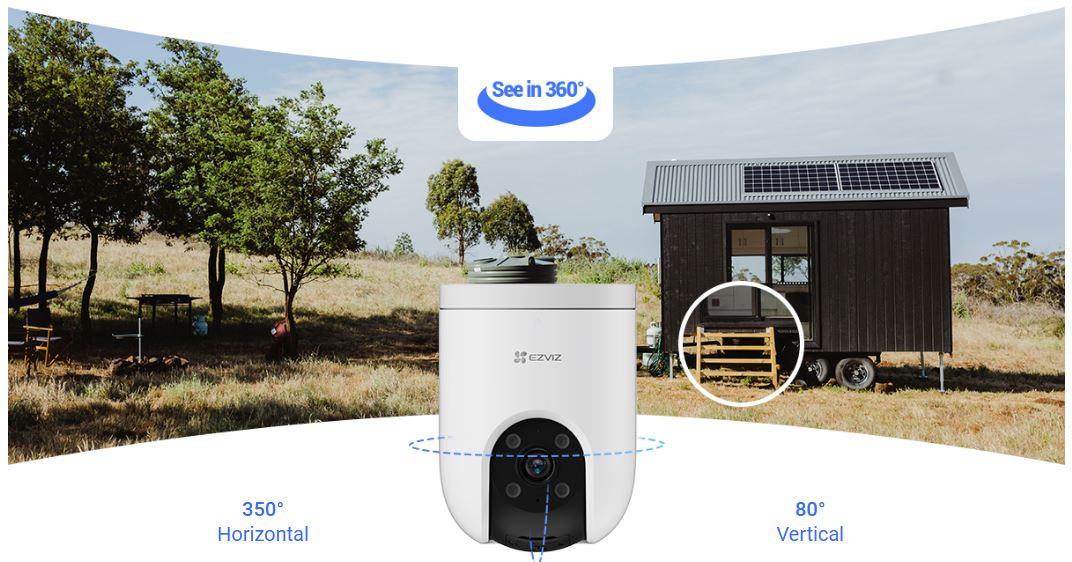

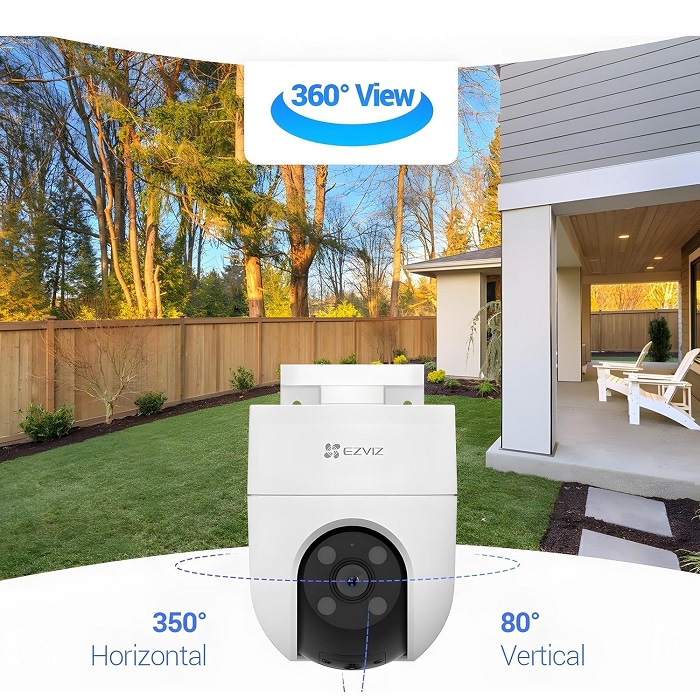

A bigger space needs a wider view, and that’s where the H8c 4G comes in handy. It can pan and tilt to take in a 360-degree field-of-view, and render details in 2K resolution to capture crucial moments clearly.
| Specifications |
|---|
| Model | CS-H8c-R200-1K3KFL4GA |
|---|
| Camera |
|---|
| Image Sensor | 1/2.8" Progressive
Scan CMOS |
|---|
| Shutter Speed | Self-adaptive shutter |
|---|
| Lens | 4mm@ F1.6, viewing angle:
46° (Vertical), 86° (Horizontal), 102° (Diagonal) 6mm@ F1.6, viewing
angle: 28° (Vertical), 52° (Horizontal), 62° (Diagonal) |
|---|
| PT Angle | Pan: 350°, Tilt: 80° |
|---|
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0
Lux with IR (*data is obtained from EZVIZ laboratories) |
|---|
| Lens Mount | M12 |
|---|
| DNR | 3D DNR |
|---|
| WDR | Digital WDR |
|---|
| Black & White Night | 30m / 98ft |
|---|
| Video & Audio |
|---|
| Max Resolution | 2304 × 1296 |
|---|
| Frame Rate | Max:30fps; Self-Adaptive
during network transmission |
|---|
| Video Compression | H.265 / H.264 |
|---|
| H.265 Type | Main Profile |
|---|
| Video Bit Rate | Ultra-HD; Hi-Def; Standard.
Adaptive bit rate. |
|---|
| Audio Bit Rate | Self-Adaptive |
|---|
| Max. Bitrate | 3 Mbps |
|---|
| Network |
|---|
| Frequency Bands | IN LTE-FDD：B1/B3/B5/B8 IN
LTE-TDD：B34/B38/B39/B40/B41 EU LTE-FDD：B1/B3/B5/B7/B8/B20/B28 LA
LTE-FDD：B2/B3/B4/B5/B7/B8/B28/B66 |
|---|
| Wired Network | RJ45 × 1 (10M / 100M
Adaptive Ethernet Port) |
|---|
| Functions |
|---|
| Smart Alarm | Human Motion
Detection,Vehicle Detection |
|---|
| Auto Tracking | Supports |
|---|
| Customized Alert Area | Supports |
|---|
| Two-way Talk | Supports |
|---|
| Preset Locations | Supports |
|---|
| General Function | Anti-Flicker, Dual-Stream,
Heart Beat, Password Protection, Watermark |
|---|
| Storage |
|---|
| Local Storage | Supports microSD Card (Up
to 512 GB) |
|---|
| Cloud Storage | Supports EZVIZ CloudPlay
storage (Subscription required) |
|---|
| General |
|---|
| Operating Conditions | -30°C to 50°C ( -22 °F to
122 °F ) Humidity 95% or less (non-condensing) |
|---|
| IP Grade | Weatherproof Design |
|---|
| Power Supply | DC 12V/1A |
|---|
| Dimensions | 100 × 136 × 140mm (3.94 ×
5.35 × 5.51 inch) |
|---|
| Packaging Dimensions | 140 × 140 × 192mm (5.51 ×
5.51 × 7.56 inch) |
|---|
| Weight | Net Weight: 513.8 g (18.12
oz) With Package: 796.7 g (28.1 oz) For EU Standard Version |
|---|
