Specifications |
---|
Model | CS-H3c-R100-1K2WF |
---|
Camera |
---|
Image Sensor | 1/2.7”Progressive Scan
CMOS |
---|
Minimum Illumination | 0.01 Lux @ (F2.0, AGC ON),
0 Lux with IR |
---|
IR Night Vision Distance | Up to 98 ft / 30 m |
---|
Shutter Speed | Self-adaptive shutter |
---|
Lens | 4mm @ F2.0, view angle: 82°
(Horizontal), 98° (Diagonal) |
---|
Lens Mount | M12 |
---|
DNR | 3D DNR |
---|
WDR | Digital WDR |
---|
Day / Night Switch | IR-Cut filter with
auto-switching |
---|
Video & Audio |
---|
Max. Resolution | 1080p, 1920 × 1080 |
---|
Frame Rate | Max: 30fps; Self-Adaptive
during network transmission |
---|
Video Compression | H.265 / H.264 |
---|
Video Bit Rate | Full HD; HD; Standard.
Adaptive bit rate. |
---|
Audio Bit Rate | Self-Adaptive |
---|
Max. Bitrate | 1 Mbps |
---|
Network |
---|
Wi-Fi Standard | IEEE802.11b, 802.11g,
802.11n |
---|
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
---|
Channel Bandwidth | Supports 20 MHz |
---|
Security | 64 / 128-bit WEP, WPA /
WPA2, WPA-PSK / WPA2-PSK |
---|
Transmission Rate | 11b: 11Mbps, 11g: 54Mbps,
11n: 144Mbps |
---|
Wi-Fi Pairing | AP Pairing |
---|
Protocol | EZVIZ Cloud Proprietary
Protocol |
---|
Interface Protocol | EZVIZ Cloud Proprietary
Protocol |
---|
Wired Network | RJ45 × 1 (10M / 100M
Adaptive Ethernet Port) |
---|
General |
---|
Dimensions | 72mm × 72mm × 157mm (2.83 ×
2.83 × 5.98 inch) |
---|
Package Dimensions | 227 × 100 × 92 mm (8.94 ×
3.94 × 3.62 inch) |
---|
Weight | Net weight: 250 g (8.82
oz), With Package: 447 g (15.77 oz) |
---|

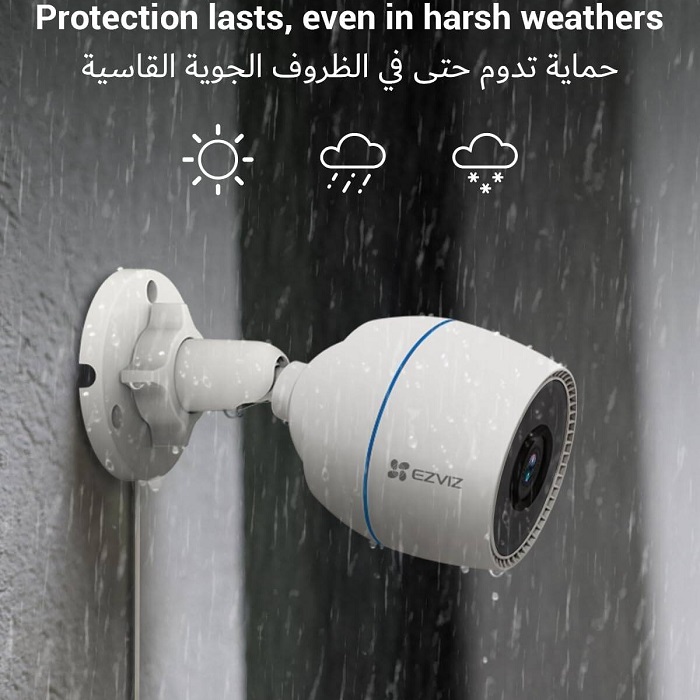

IP Grade | IP67 |
---|
Operating Conditions | -30 °C to 50°C ( -22 °F to
122 °F ), humidity 95% or less (non-condensing) |
---|
Function |
---|
Detection | AI-Powered Human Shape
Detection, Motion Detection |
---|
Customized Alert Area | Supports |
---|
Integration | Works with Alexa, Google
Assistant, IFTTT |
---|
General Function | Anti-Flicker, Dual-Stream,
Heart Beat, Mirror Image, Password Protection, Watermark |
---|
Storage |
---|
Local Storage | Supports microSD card (Up
to 512 GB) |
---|
Cloud Storage | Supports EZVIZ CloudPlay
storage (Subscription required) |
---|
Power |
---|
Power Supply | DC 12V / 1A |
---|
Power Consumption | Max. 6W |
---|
