| Specifications |
|---|
| Model | CS-EP7 |
|---|

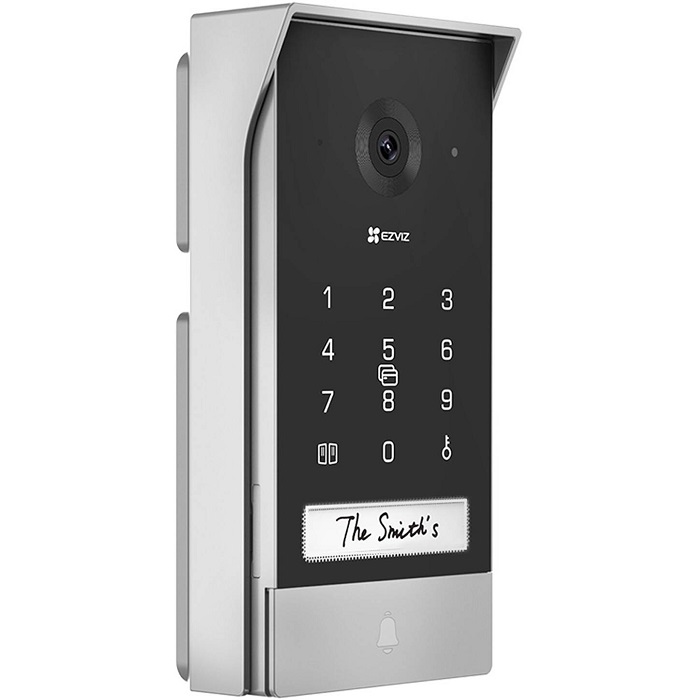

| Outdoor Doorbell |
|---|
| Camera |
|---|
| Image Sensor | 1/2.7" Progressive
Scan CMOS (Supports low light sensitivity) |
|---|
| Lens | 2.0 mm @ F2.2,viewing
angle: 162° (Diagonal) |
|---|
| Day & Night | IR-cut filter with
auto-switching, 850 nm infrared light × 2 (max. 6m) |
|---|
| Max. Resolution | 2K, 2048 × 1296 |
|---|
| DNR | 2D / 3D DNR |
|---|
| Video Compression | H.265 / H.264 |
|---|
| Frame Rate | Max: 15fps; Self-Adaptive
during network transmission |
|---|
| Connection and Function |
|---|
| Open the door (Gate) | Support 2 wiring ports.
1-10m distance. The intercom panel provides a dry-contact connection,
without an electric current, to connect to the button for automated
gate, gate breaking capacity: 12V / 2A |
|---|
| Unlock (Electric strike
plate) | Support 2 wiring ports.
1-10m distance. The electric strike plate or lock that you order must
have a mechanical memory; the power supply to the electric strike plate
or lock must not exceed 12V / 0.8A, otherwise should do as user
manual. |
|---|
| Door Open Methods | 1.RFID badge unlock (CPU
card × 3 pcs) 2.Password unlock 3.App remote unlock 4.Indoor display
unlock |
|---|
| Outdoor Doorbell
Interface |
|---|
| Audio Input | Built-in high-sensitivity
microphone |
|---|
| Audio Output | Built-in high-power
speaker |
|---|
| Doorbell Button | Supports 1 button. |
|---|
| Name Card | Supports handwritten. 3
cards stickers included (1 sticker already on the intercom panel). |
|---|
| Terminal | Two wiring ports to connect
gate. Two wiring ports to connect electric strike plate. Two wiring
ports to connect the solar panel. |
|---|
| Password Keypad | 0-9 10-digial password
keyboard; support 5 sets of 6-10 digital passwords; press the keypad to
turn on the light, the light can be turn off |
|---|
| Network |
|---|
| Wi-Fi Standard | IEEE 802.11 AH |
|---|
| Frequency Range | 904 M - 928 M (US), 865
M-867 M (EU) |
|---|
| Channel Bandwidth | 8 M (U ), 2 M (EU) |
|---|
| Security | 64 / 128 bit WEP, WPA /
WPA2, WPA-PSK / WPA2-PSK |
|---|
| Wi-Fi HaLow Pairing | AP pairing |
|---|
| Max Transmission Distance for
Intercom and monitor | Up to 350m in open area; up
to 80m in two enclosed walls |
|---|
| General |
|---|
| Operation Conditions | -20°C to 60°C , Humidity
95% or less (non-condensing) |
|---|

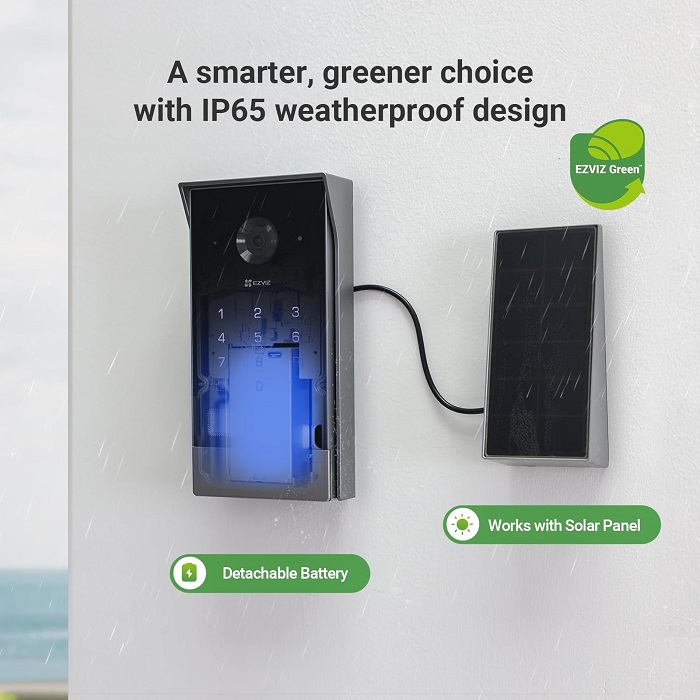

| IP Grade | Waterproof IP65, with
shield cover |
|---|
| Power Supply | Battery (7.3V), EZVIZ
Doorbell Solar Panel |
|---|
| Battery Capacity | 2600 mAh 7.3V (5200mAh
3.7V) rechargeable and detachable lithium battery 85 days at the rate
of using 3 minutes per day, and open the electric strike plate 10
times |
|---|
| Product Dimension | 175 × 86 × 34 mm |
|---|
| Interior Display |
|---|
| Info |
|---|
| Display size | 7” touch screen |
|---|
| Resolution | 1024 × 600 |
|---|
| Interface |
|---|
| Audio Input | Built-in high-sensitivity
microphone |
|---|
| Audio Output | Built-in high-power
speaker |
|---|
| Button | Screen On / Off Button |
|---|
| Terminal | Two wiring ports to connect
the power |
|---|
| Storage | Supports microSD card (Up
to 512 GB) |
|---|
| Network Parameters |
|---|
| Interface Protocol | EZVIZ Cloud Proprietary
Protocol |
|---|
| Protocol | EZVIZ Cloud Proprietary Protocol |
|---|
| Wi-Fi Parameters |
|---|
| Wi-Fi Standard | IEEE802.11b, 802.11g,
802.11n, 802.11ac |
|---|
| Frequency Range | 2.4G: 2.4 GHz ~ 2.4835 GHz
5G: 5.15 GHz ~ 5.25 GHz |
|---|
| Channel Bandwidth | Supports 20MHz |
|---|
| Security | 64 / 128-bit WEP,WPA /
WPA2, WPA-PSK / WPA2-PSK |
|---|
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps,
11n: 150Mbps, 11ac: 433.3Mbps |
|---|
| Function |
|---|
| Multiple ringtones | Up to 20 ringtones |
|---|
| Functions | Live view, playback,
two-way talk, video call |
|---|
| General |
|---|
| Operation Conditions | -10°C to 45°C, humidity 95%
or less (non-condensing) |
|---|
| Size | 180 × 111 × 15 mm |
|---|
| Power Supply | 12-24VDC 1A power supply,
adaptor (12V 1A included in package) |
|---|
| Power Consumption | 8W, Max. 24W |
|---|
| Solar Panel |
|---|
| Performance Parameter |
|---|
| Power Voltage | 8.1V max |
|---|
| Max. Power Current | 240mA |
|---|
| Max. Power | 1.2W |
|---|
| Operating Temperature | -20°C to 50°C |
|---|
| Product Dimension | 126 × 59 × 44mm |
|---|
| IP Grade | IP65 |
|---|
| General |
|---|
| Net Weight in Total | 675g |
|---|
| Weight with Package | 1865g |
|---|
|
|---|
