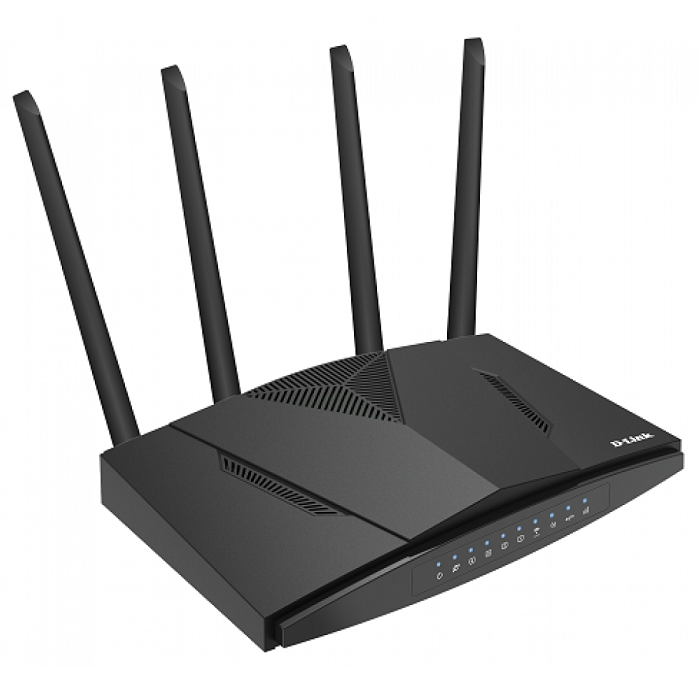

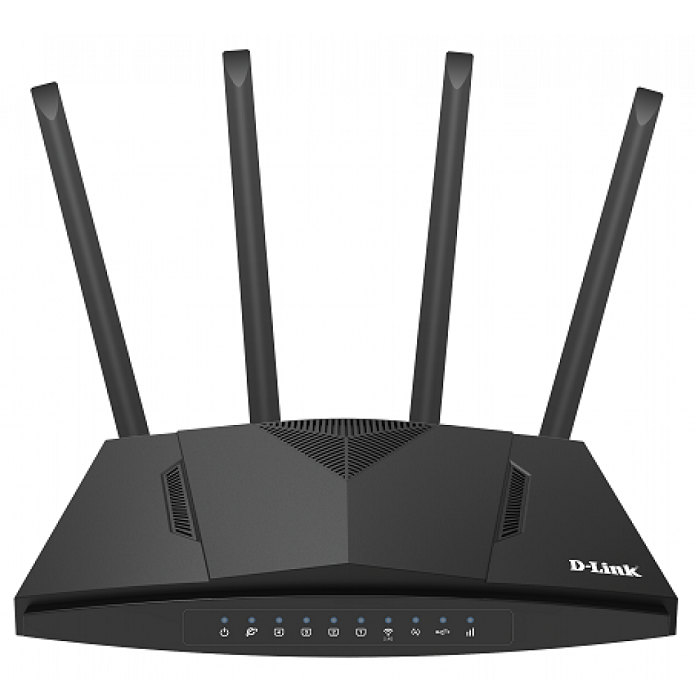

D-Link’s DWR-M960 4G AC1200 LTE Router allows you to access mobile broadband networks from anywhere. Once connected, you can check e-mail, surf the web, and stream media. Use your carrier’s SIM/UICC card to share your 3G/4G Internet connection through a secure wireless network or by using any of the four Gigabit ports.
Fast Mobile Internet
The DWR-M960 lets you connect to your 3G/4G mobile connection with fast downlink speeds of up to 150 Mbps and uplink speeds up to 50 Mbps, giving you the speed you need for fast, responsive Internet access. Surf the web with ease and stream music and video over the Internet to your PCs and mobile devices.
Secure Wired and Wireless Connections
The DWR-M960 utilizes dual-active firewalls (SPI and NAT) to prevent potential attacks across the Internet. Industry standard WPA/WPA2 wireless encryption keeps your wireless network secure and your traffic safe, allowing you to share your 3G/4G connection without worrying about unauthorized users accessing your network.
Easy to Set Up and Use
The DWR-M960 can be installed quickly and easily almost anywhere. It can be configured through almost any web browser without the need for special software. This router makes it possible to stay connected, even when conventional broadband services are unavailable.
Specification
| CPU frequency |
1000MHz (1GHz) |
| Memory |
64MB 16-bit DDR2 SDRAM |
| Flash |
8MB |
| Wi-Fi |
2T2R 2.4GHz 802.11b/g/n 300Mbps
2T2R 5.8GHz 802.11AC, 867Mbps |
| LTE Interface |
1 x LTE Interface |
| LAN Ethernet Interfaces |
4 x RJ45 10M/100M/1000M |
| WAN Ethernet Interfaces |
1 x RJ45 10M/100M/1000M |
| Buttons |
1 x Reset Button
1 x WPS Button |
| Ports |
1 x Power Jack
1 x Power Switch
1 x USB 2.0 |
| SIM card |
2FF SIM card: standard 6 PIN SIM card interface |
| LTE Bands |
WCDMA: B1/5/8
FDD LTE: B1/B3/B5/B7/B8/B20
GSM: 850/900/1800/1900
TDD LTE: B38/B40/B41 |
| LTE Antenna |
2 x 5dBi external antenna |
| Wi-Fi Antenna |
2 x 5dBi external dual-band antenna (2.4GHz and 5GHz with Antenna Combiner) |
| Standards |
802.11b/g/n/ac
11N: 2.4~2.4835GHz
11AC: 5.150~5.825GHZ |
| Modulation Schemes |
OFDM = BPSK, QPSK, 16-QAM, 64-QAM 256-QAMc
DSSS = DBPSK, DQPSK, CCK |
| Transfer Rate |
HT20: up to 144 Mbps
HT40: up to 300 Mbps
VHT80: up to 867 Mbps |
| General |
| Supported Protocols |
Various RFC and IEEE standards (see below) |
| Management |
TR-069 Remote Management |
| Security |
SPI Firewall, DoS protection, Port Filtering, IP Filtering, MAC Filtering, URL Filter, QoS Flow Control, DDNS, IPv6, Static Route, SNTP, ETH WAN link-backup via 3G/4G Module |
| Additional Features |
DHCP server, client
NAT, NAPT, ALG
PPTP, L2TP VPN
IGMP Proxy, MLD for IPTV
Logs, Statistics
Embedded AP, Wireless WDS, Wireless Client Mode, Separate Authentication for each SSID, Wireless Schedule, 802.1Q VLAN, Samba |
| Environment Requirement |
| Storage Temperature |
-20°C ~ 90°C |
| Operating Temperature |
0°C ~ 40°C |
| Operating Humidity |
5% ~ 95% (typical) |
| Power Supply |
| Power Supply |
12V/1.5A |
| EMC / Safety |
| Regulation Compliance |
CCC, CE, FCC |
| Green Standard |
RoHS |
| Safety Regulations |
UL |
