High-Speed, Flexible Mobile Broadband with Failover
D-Link’s DWR-M920 4G LTE Router allows you to access and share your 4G LTE mobile broadband connection. Once connected, you can transfer data, stream media, and send SMS messages. Simply insert your SIM/USIM card and share your 4G LTE Internet connection through a high-speed wireless network or any of the three Ethernet ports. The DWR-M920 has options for both wired broadband internet via the built-in WAN port and wireless 3G/4G broadband using a SIM card. It also support failover where when wired broadband is down, it will auto switch to mobile broadband, providing you an interrupt free Internet experience

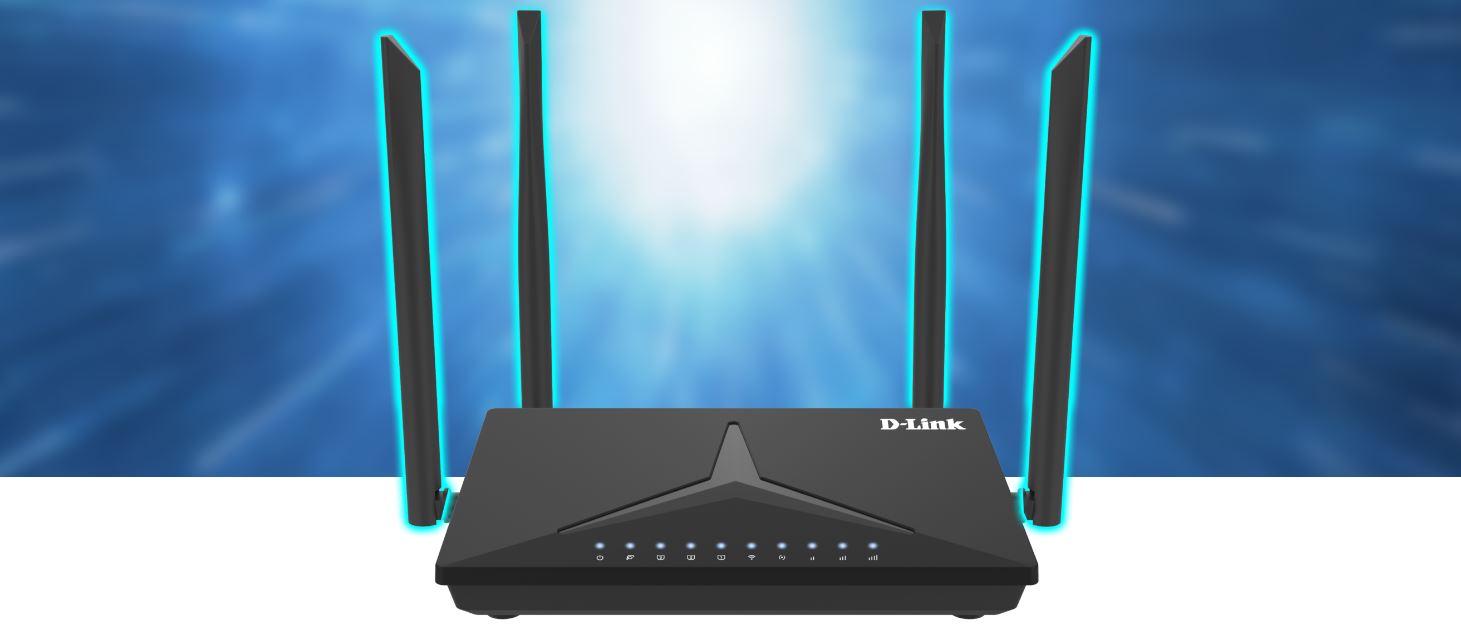

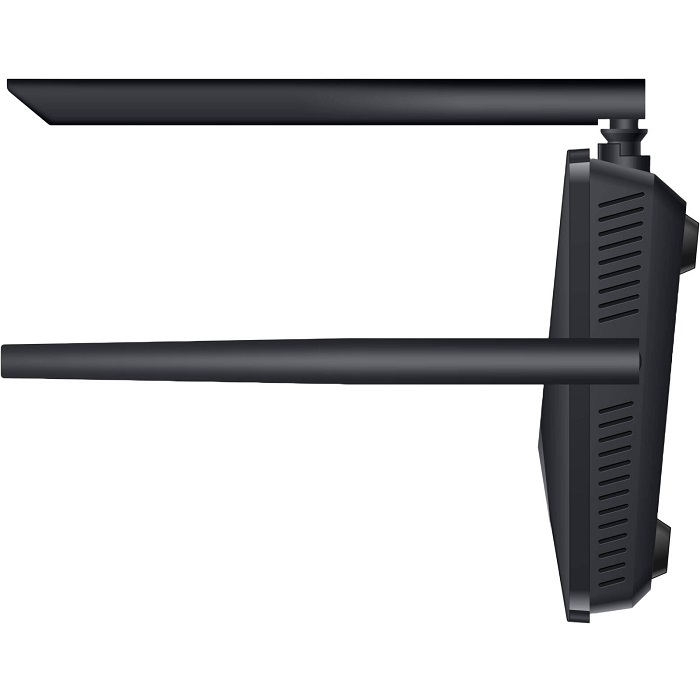

External 4G and WIFI Antenna for better performance
Better signal quality will help to improve the broadband and WIFI experience, DWR-M920 have external 4G where it can help to improve the reception of the LTE signal to ensure better performance. Not only that, it also come with external WI-FI antenna to provide better WIFI connection for your wireless clients

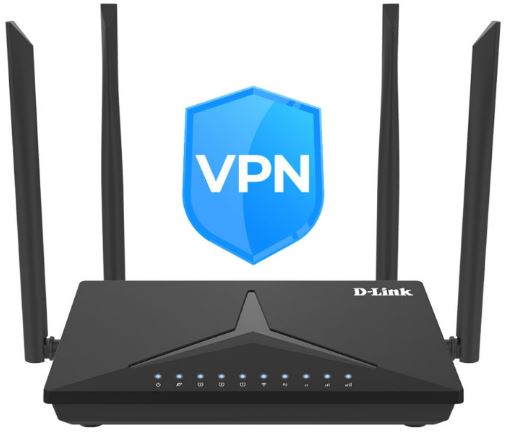

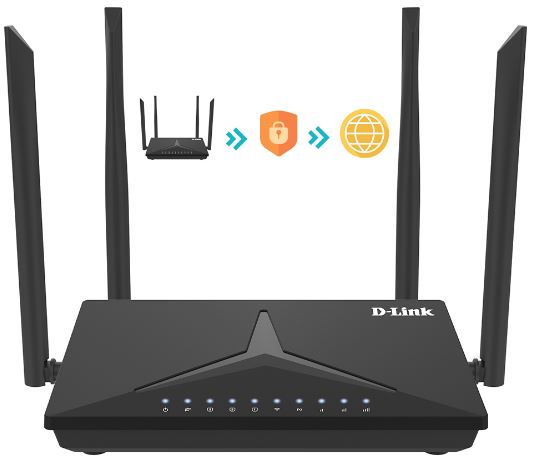

Work from Work with secure connection
The DWR-M920 have in-built VPN client where you can establish a secure tunnel back to your office VPN server without the need to install clients on your devices. It provides a secure encrypted tunnel to better protect all your work-related sensitive information
Secure Wired and Wireless Connections
The DWR-M920 utilises dual-active firewalls (SPI and NAT) to prevent potential attacks across the Internet. WPA/WPA2 wireless encryption keeps your wireless network secure and your traffic safe, allowing you to securely share your 3G/4G connection without worrying about unauthorized users accessing your network.
Simple and Easy to Set Up
Set up your network in minutes; the DWR-M920 comes equipped with an easy-to-follow setup wizard to get you up and running right away. Older wireless devices such as 802.11g/b clients are compatible with the 4G LTE Router, helping you get started without issues. This router is great for situations where an impromptu wireless network must be set up, or wherever conventional network access is unavailable.
Specification
| Wi-Fi |
2T2R 2.4GHz 802.11b/g/n, 300Mbps |

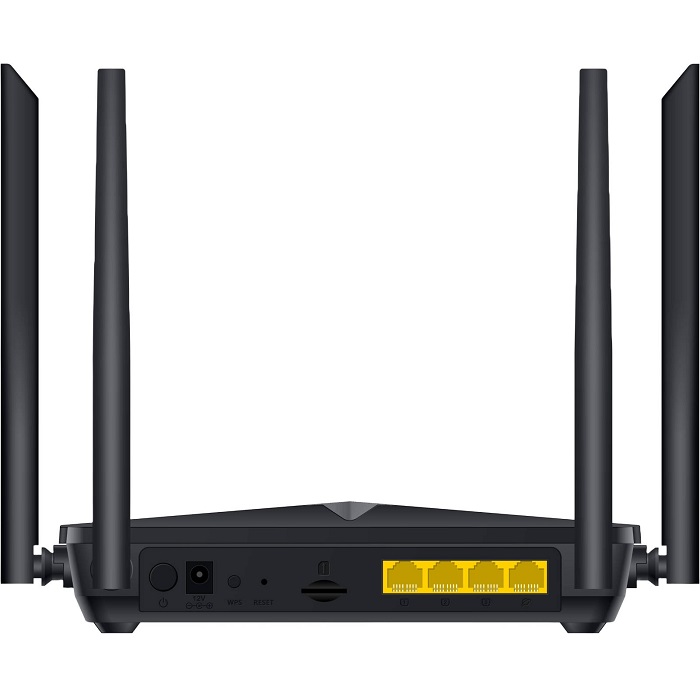

| Device Interfaces |
1 x LTE interface
3 x RJ45 10M/100M LAN Ethernet interfaces
1 x RJ45 10M/100M WAN Ethernet interfaces
1 x reset button
1 x WPS button
1 x Power jack
1 x Power switch |
| Wi-Fi Antenna |
2 x 5dBi external antenna |
| LTE Antenna |
2 x 5dBi external antenna |
| DWR-M920 |
WCDMA: B1/8
FDD LTE: B1/B3/B5/B7/B8/B20
TDD LTE: B38/40/41 |
| Standards |
802.11b/g/n
2.4 ~ 2.4835GHz |
| Modulation Schemes |
OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DSSS: DBPSK, DQPSK, CCK |
| Transfer Rate |
HT20: up to 144 Mbps
HT40: up to 300 Mbps |
| Operating Temperature |
0°C ~ 40°C |
| Storage Temperature |
-20°C ~ 90°C |
| Operating Humidity |
5% ~ 95% (typical) |
| Power Supply |
12V/1A |
| Regulation Compliance |
CE |
| Safety Regulations |
UL |
| Green Standard |
RoHS |
