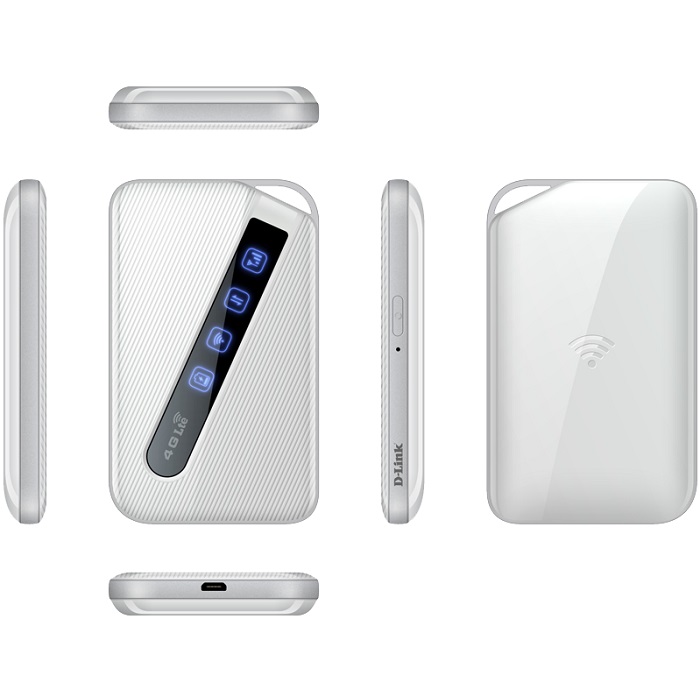

The DWR-930M 4G/LTE Mobile Router is a 4G LTE Cat4 high-speed broadband wireless WAN(WWAN) to Wi-Fi mobile hotspot that supports internet speed up to 150Mbps downlink and 50Mbps uplink. The DWR-930M uses a 4G Internet connection to give you an easy-to-set-up Wi-Fi network anywhere you need one. The DWR932-C allows you to create a Wi-Fi hotspot to share your connection with up to 12 Wi-Fi devices. The convenient size means you can share your connection anywhere; use it in a cafe to send e-mail while your friend reads the news, or at the airport so you and your coworkers can work while waiting for your plane.
Connect Anywhere
Simply insert your data-enabled SIM card to set up your very own mobile Wi-Fi network. The DWR-930M is perfect for when you need to quickly set up an impromptu network; it’s ideal for business trips when you need to share an Internet connection with everybody during a meeting, or use it for travel, allowing you to provide all your travel companions with Internet access
Specification
| General |
|
| Frequency Support |
FDD-LTE: Band 1/3/7/8/20
TDD-LTE: Band 38/40
UMTS/HSDPA/HSUPA: B1/B8
GSM/GPRS/EDGE: B3/B8 |
| Data Throughput |
Downlink up to 150 Mbps
Uplink up to 50 Mbps |
| Security |
WPA/WPA2 PSK Auto (TKIP/AES)
WPS Push-Button Connection |
| Advanced Functions |
Built-in firewall
Built-in NAT
UPnP |
| Physical |
|
| Interfaces |
802.11n/g/b wireless LAN
Single Micro SIM + eSIM (Optional)
Micro-USB port |
| Antenna |
Internal LTE antenna
1x2 MIMO (UL/DL)
2 x internal Wi-Fi antennas |
| LED Indicators |
Power Status
SMS Status
Wi-Fi Status
Network Type
Cellular Signal Strength
Battery Indicator |
| Power |
DC 5 V/1 A ± 5%
3000mAh Poly Li-ion |
| Dimensions |
103 x 63 x 13.35 mm |
| Weight |
80 g |
| Operating Temperature |
0 to 40 ˚C (32 to 104 ˚F) |
| Storage Temperature |
-20 to 70 ˚C (-4 to 158 ˚F) |
| Operating Humidity |
10% to 90% (non-condensing) |
| Certifications |
CE
RoHS |
