• Wi-Fi 6– Wi-Fi 6 (802.11ax) could turn out to be the most significant advancement in Wi-Fi development, delivering a huge boost in speed and total capacity.

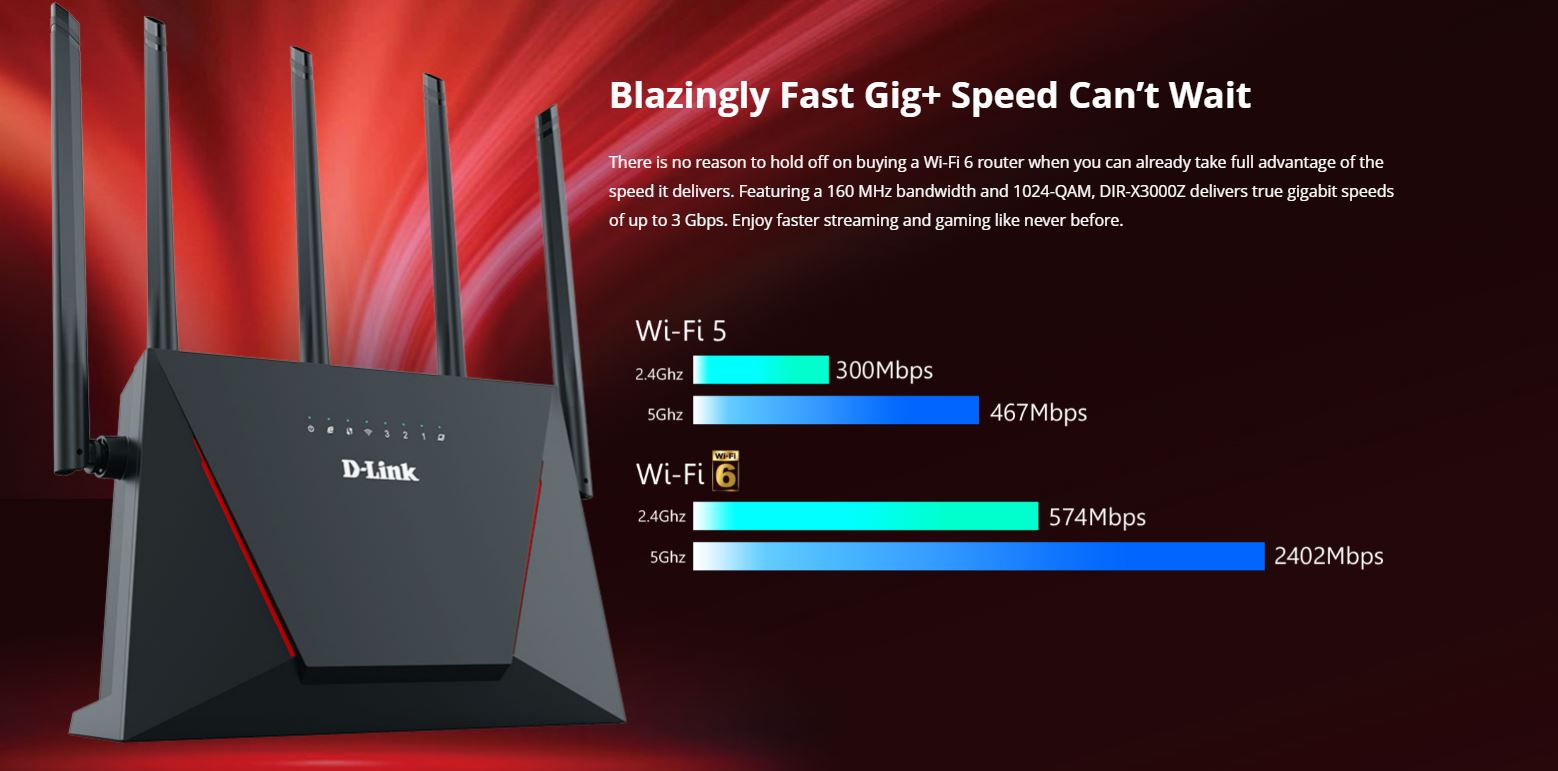

• Bandwidth– Featuring a 160 MHz bandwidth and 1024QAM, DIR X3060Z delivers true Gigabit speeds of up to 3 Gbps.
• Powerful CPU– Powered by a powerful dual core CPU, this full featured Gigabit Wi-Fi 6 router allows numerous bandwidth intensive tasks to run smoothly at the same time.
• High Gain Antennas– High gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.

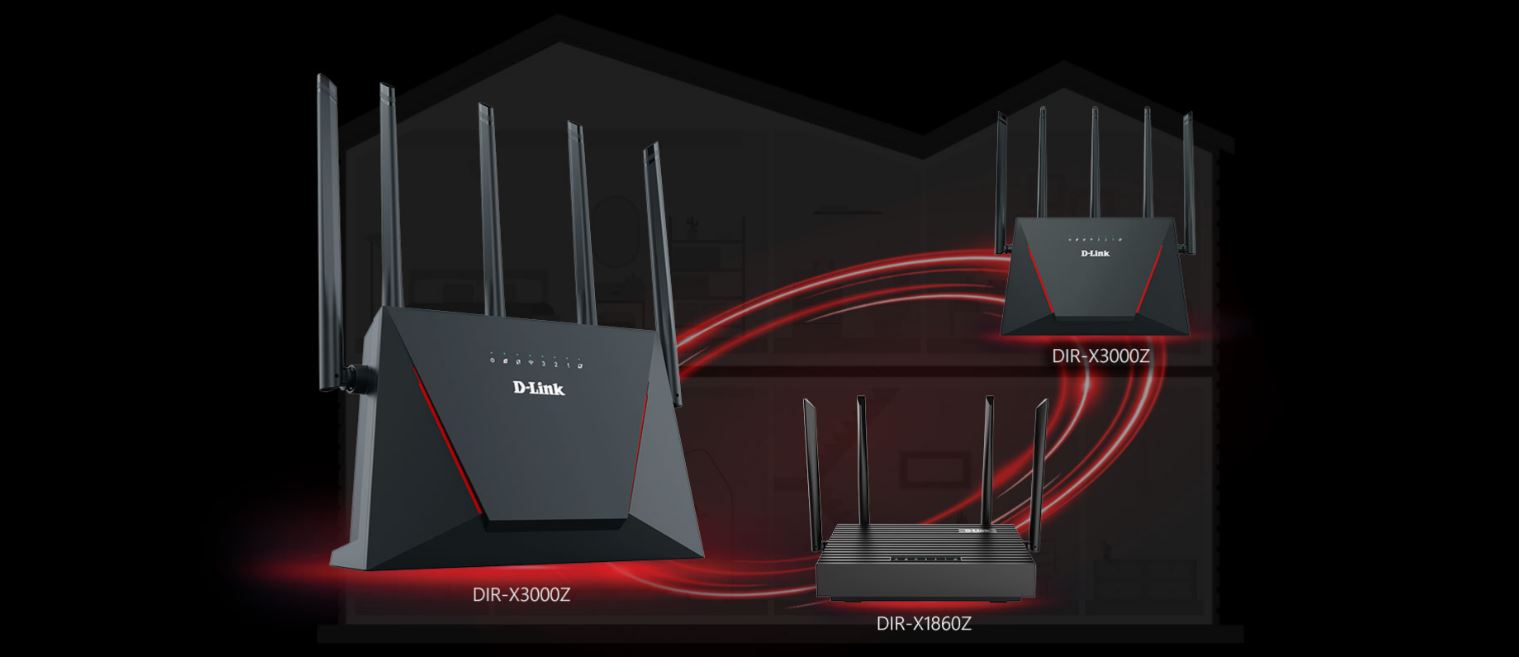

Wider coverage with Mesh Technology
Easily expand for WHOLE home coverage using D-Link Mesh solution. You can easily expand the coverage using additional DIR-X3000Z, DIR-X3060Z and DIR-X1860Z to form a whole home mesh solution. Enjoy your internet wherever you are inside your home
Reliable connections for multiple devices
In answer to ever growing demands on home Wi-Fi, DIR-X3000Z future-proofs your home networks by providing 4× greater capacity to connect more devices. Advanced technologies, such as OFDMA and MU-MIMO, quadruple the connection capacity in high-density scenarios compared to standard 802.11ac routers. Keep pace with the latest technology and future developments.

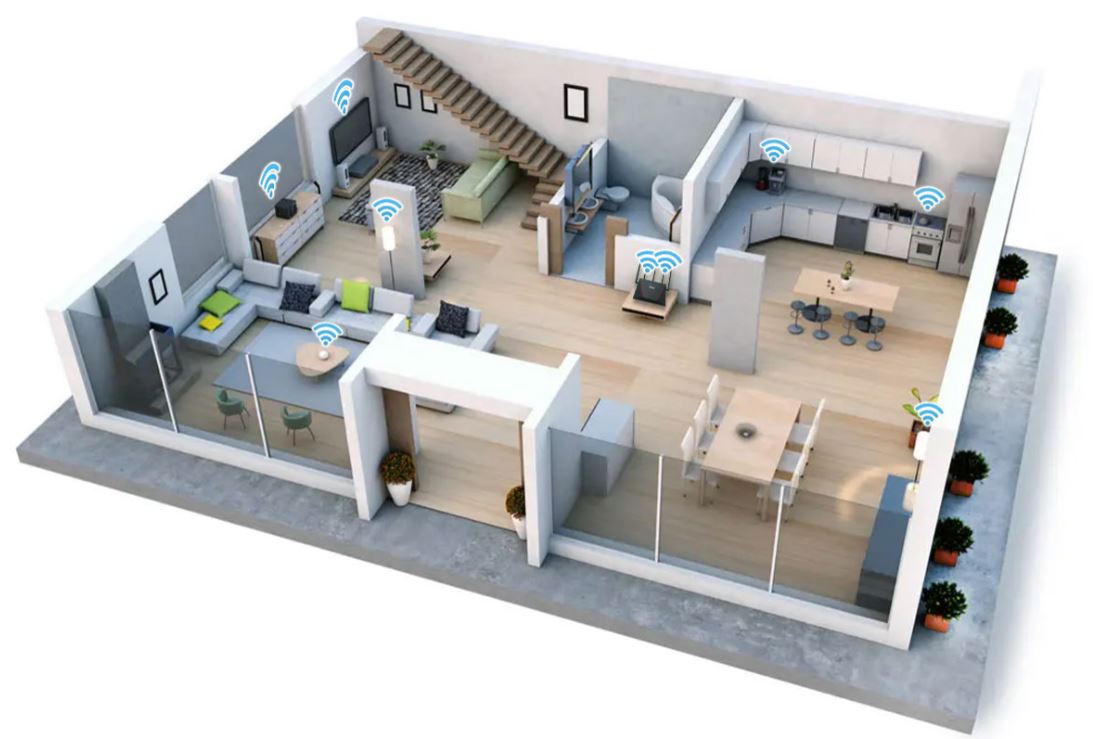

Expanded Coverage Throughout Your Home

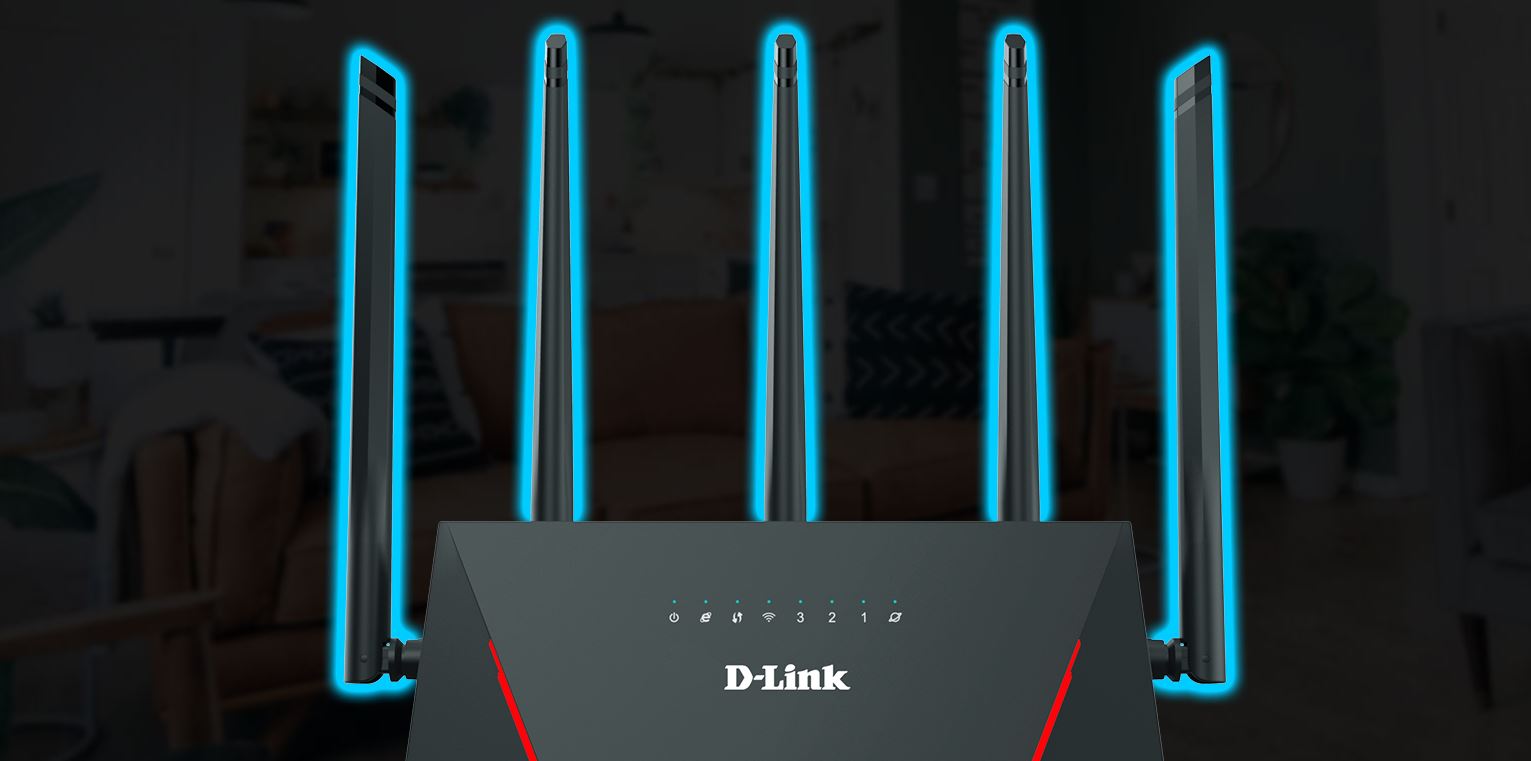

Five high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home. Cutting-edge Wi-Fi 6 technologies, such as BSS Color, ensure smooth and stable connections by eliminating signal interference from your neighbors.
Specification
| Standards |
• Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz |
| Wi-Fi Speeds |
• AX3000
• 5 GHz: 2402 Mbps (802.11ax 160Mhz)
• 2.4 GHz: 574 Mbps (802.11ax 40Mhz) |
| Wi-Fi Range |
• Bedroom Houses
• 5 * Fixed High Performance Antennas
• Multiple antennas form a signal boosting array to cover more directions and large areas
• Beamforming
• Concentrates wireless signal strength towards clients to expand Wi-Fi range~ • High Power FEM
• Improves transmission power to strengthen signal coverage |
| Wi-Fi Transmission Power |
• CE:<20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz)
• FCC:<30dBm (2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz) |
| Modes |
• Router Mode, Bridge Mode |
| Processor |
• 1G Arm9 Dual Core CPU |
| Ethernet Ports |
• 1 × Gigabit WAN Port
• 3 × Gigabit LAN Ports |
| Connectors & Buttons |
• Power On/Off, WPS, Reset Button |
| Power |
• 12V 1.5A DC |
| Wi-Fi Encryption |
• WPA, WPA2, WPA3 |
| Network Security |
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• DDoS Attack Prevention |
| Guest Network |
• 1 × 5 GHz Guest Network
• 1 × 2.4 GHz Guest Network |
| Protocols |
• IPv4, IPv6 |
| WAN Types |
• DHCP, Static IP, PPPoE |
| Easy Mesh |
• Easy Mesh™ Supported
• Coverage your whole home with 3 x Devices |
| NAT Forwarding |
• Port Forwarding, DMZ, UPnP |
| IPTV |
• IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP |
• DHCP Client List, Server |
| DDNS |
• DynDNS |
| Management |
• Web based Configuration (HTTP)
• Remote Management
• Telnet Management
• TR069
• TR143
• TR181
• TR098
• Web Based Firmware Upgrade
• CWMP
• Diagnostic Tools |
| Package Contents |
• Wi-Fi Router
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide |
| System Requirements |
• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access) |
| Certifications |
• CE, FCC |
| Environment |
• Operating Temperature: 0℃~40℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
