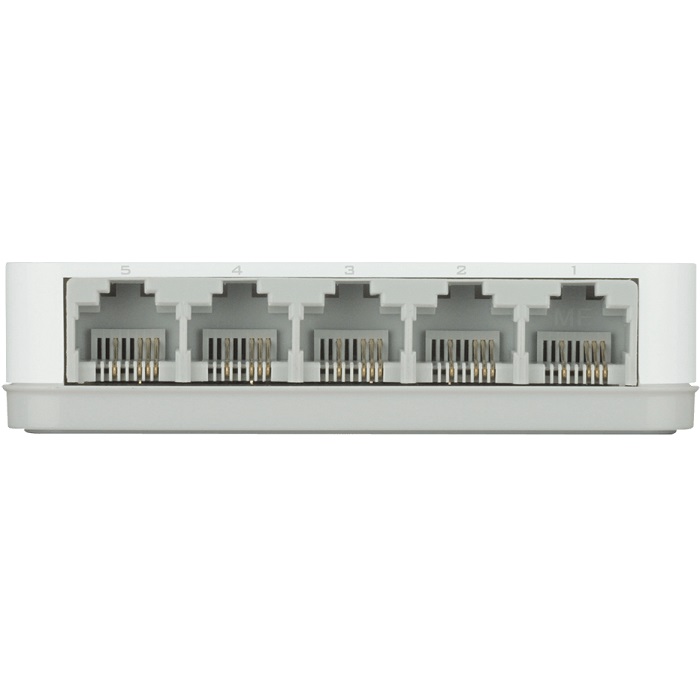

The DES-1005A uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
AutoMDI/MDIX Crossover
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.
Specification
| 100Base-TX Interface |
5 |
| Auto MDI/MDIX |
Yes |
| Switching Capacity |
1Gbps |
| Max. Packet Forwarding Rate |
0.74 Mpps |
| Dimension |
88x48x21.45mm |
| Weight |
0.0434kgs |
| Operation Temperature |
0 ~ 40 °C |
| Storage Temperature |
- 40 ~ 70 °C |
| Operation Humidity |
10% ~ 90% RH |
| Storage Humidity |
5% ~ 95% RH |
| Maximum Power Consumption |
0.784 watts |
| Standby Power Consumption |
0.4 watts |
| Maximum Heat Dissipation |
0.406 BTU/h |
| MTBF |
1,785,631hours |
| Store & Forwarding Forwading |
Yes |
| Power Input |

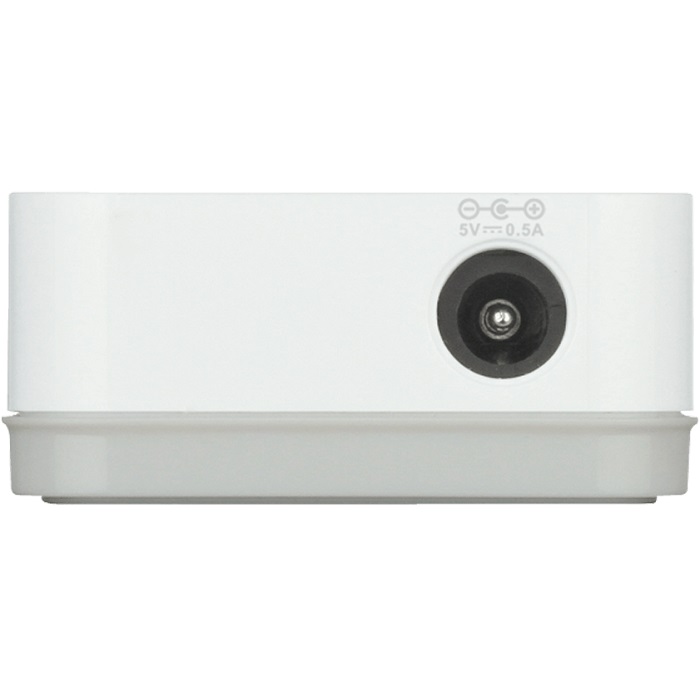

DC:5V, 0.55A |
| Packet Buffer Size |
96KBytes |
| FAN |
Fanless |
| Energy Efficiency Ethernet (EEE) |
Yes |
| Power Saving By Link Status |
Yes |
| MAC Address Table Size |
2,000 |
| 802.3x Flow Control |
Yes |
| Head-of-line (HOL) Blocking Prevention |
Yes |
| Jumbo Frame |
2048 Bytes |
