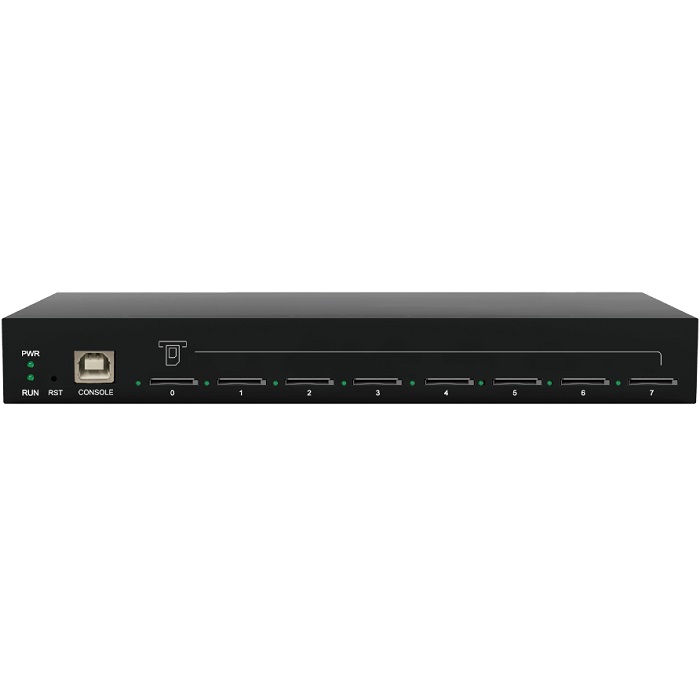

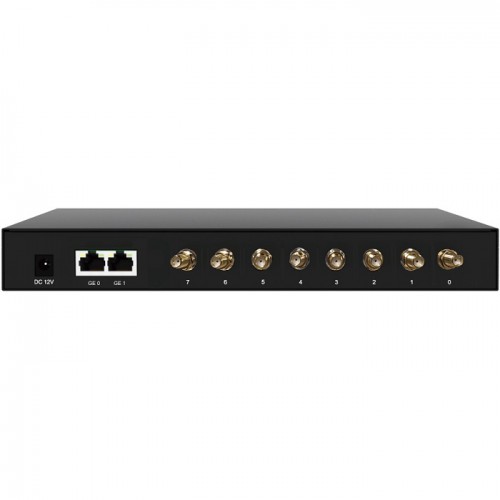

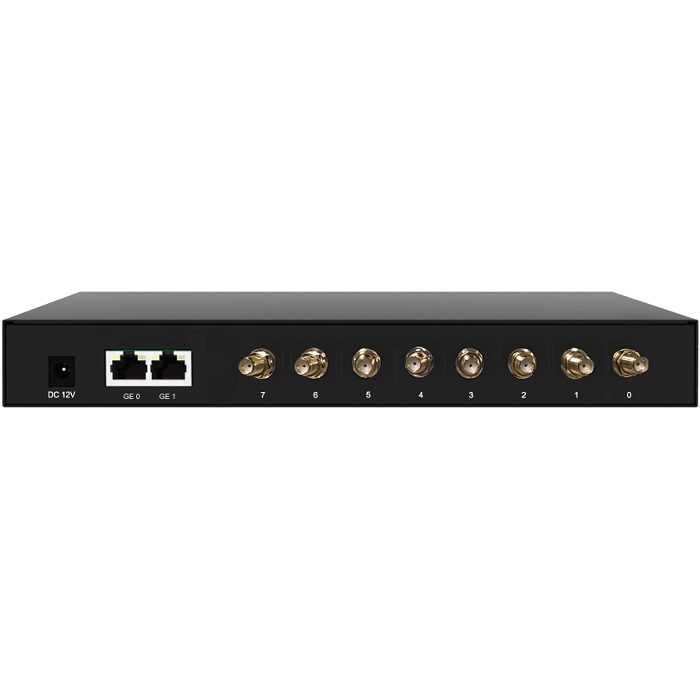

Dinstar GSM/WCDMA/LTE VoIP Gateway UC2000-VE

Dinstar UC2000-VE is a 4 or 8 channels GSM/3G/4G VoIP Gateway in a compact field-proven hardware design, used to smoothly transit between mobile and VoIP networks, for transmission of both voice and SMS. Integrated GSM/WCDMA/LTE connectivity and SIP protocol compatible with mainstream VoIP platforms, it is suitable for enterprises, multi-site organizations, call terminators and areas with limited landline like rural area to cut down telephony costs and enable easy & efficient communications. It works standalone and also supports remote SIMs management as an option with Dinstar SIMBank and SIMCloud.

4/8-channel VoIP GSM/3G/4G Gateway

GSM/WCDMA/LTE support Voice over LTE (VoLTE)
Hot Swappable SIM Cards
Compatible with mainstream VoIP platform
Mobility Extension, never miss a call
SMS sending & receiving, SMS API
Credit Limit management
Auto CLIP

• 4/8 SIM slot, 4/8 antennas

  Signaling & RTP Encryption

  Built-in antennas combiner (Optional)

  SMPP for SMS

  GSM: 850/900/1800/1900Mhz

  HTTP API for SMS

  WCDMA: 900/2100Mhz or 850/1900Mhz

  Polarity Reversal

  LTE: Multiple frequency choices for different countries

  PIN Management

  SIP v2.0, RFC3261

  SMS/USSD

  Codecs: G.711A/U , G.723.1, G.729AB

  SMS to Email, Email to SMS

  Echo Cancellation

  Call Waiting/Call Back

  DTMF: RFC2833, SIP Info

  Call Forward

  Programmable Gain Control

  GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR

  Mobile to VoIP, VoIP to Mobile

  HTTPS/HTTP Web Configuration

  SIP Trunk and Trunk Group

  Configure Backup/Restore

  Port and Port Group

  Firmware Upgrade by HTTP/TFTP

  Caller/Called Number Manipulation

  CDR(10000 Lines Storage Locally)

  SIP Codes Mapping

  Syslog/Filelog

  White/Black List

  Traffic statistics: TCP,UDP,RTP

  PSTN/VoIP Hotline

  VoIP Call Statistics

  Abnormal Call Monitor

  PSTN Call statistics: ASR,ACD,PDD

  Call Minutes Limitation

  IVR Customization

  Balance Check

  Auto Provisioning

  Random Call Interval

  SIP/RTP/PCM Capture

  Auto CLIP

  Work with Dinstar SIMCloud/SIMBank (Optional)

• UC2000-VE GSM LTE VoIP Gateway Datasheet

  UC2000 Series GSM LTE VoIP Gateway User Manual
