Driving sustainability through thoughtful design

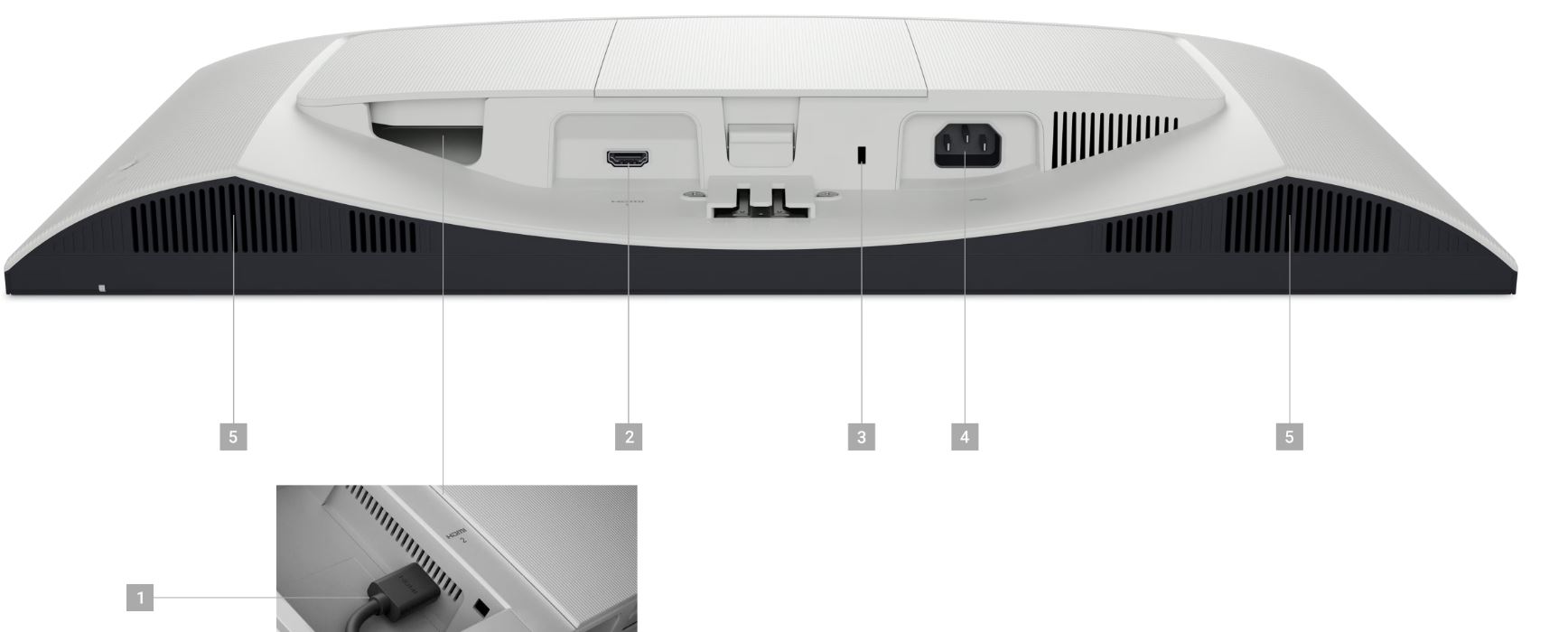

Ports and slots

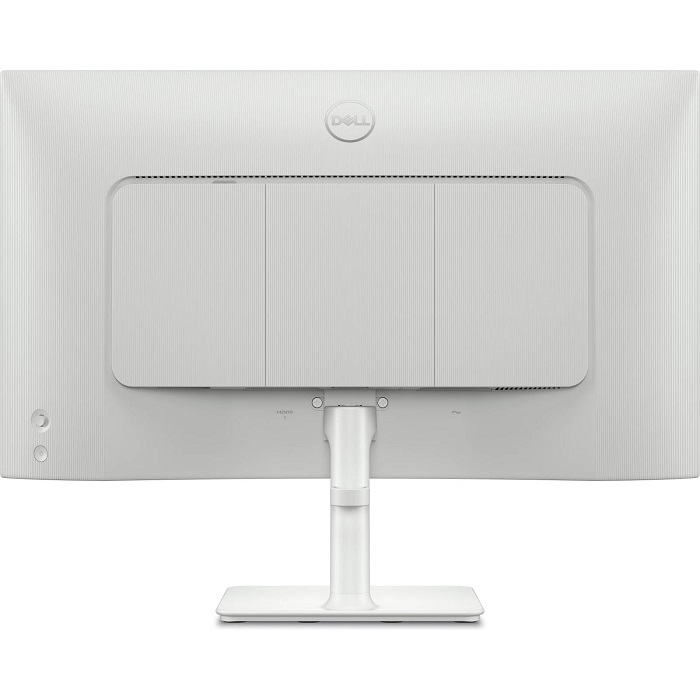

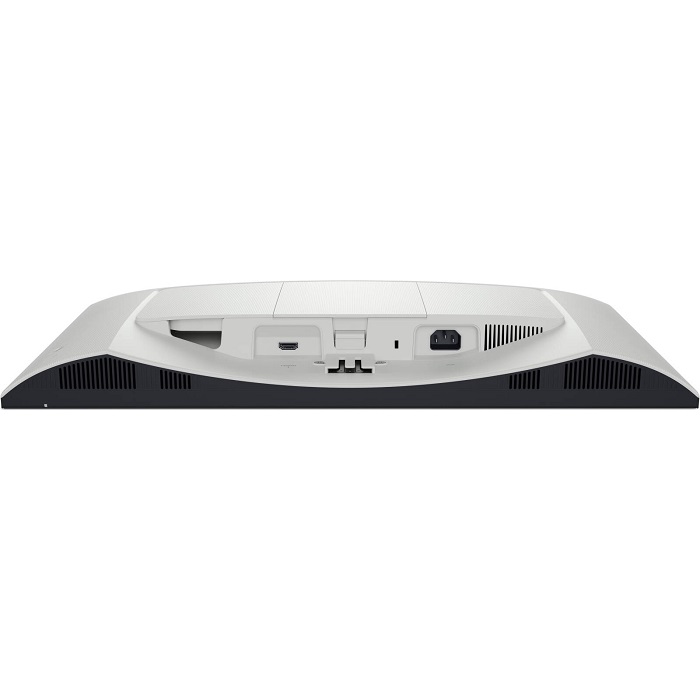

Bottom and rear view
1. HDMI
2. HDMI
3. Security lock slot (based on Kensington Security Slot™)
4. Power connector
5. Speakers
Cables included
- Power cable
- HDMI cable - 1.8m
Spacification
| Technical Information |
| Diagonal Viewing Size |
23.8" |
| Preset Display Area (H x V) |
527.04 mm x 296.46 mm (20.75" x 11.67") |
| Area |
156246.28 mm² (242.18 inches²) |
| Panel Type |
In-Plane Switching (IPS) technology |
| Display Screen Coating |
Antiglare with hard-coating 3H |
| Maximum Preset Resolution |
1920 x 1080 |
| Refresh Rate |
100 Hz |
| Viewing Angle |
178° vertical / 178° horizontal |
| Pixel Pitch |
0.2745 mm x 0.2745 mm |
| Pixel Per Inch (PPI) |
93 |
| Contrast Ratio |
1500:1 (typical) |
| Aspect Ratio |
16:9 |
| Backlight Technology |
LED edgelight system |
| Brightness |
250 cd/m² (typical) |
| Response Time |
8 ms (Normal mode), 5 ms (Fast mode), 4 ms (Extreme mode) |
| Color Support |
16.7 million colors |
| Color Gamut (typical) |
99% sRGB (typical) (CIE1931) |
| TUV Eye Comfort |
Yes, 4 Star |
| Flicker Free |
Yes |
| Connectivity |
2 x HDMI (HDCP 1.4) (Supports up to FHD 1920 x 1080 100Hz, as per specified in HDMI1.4) |
| Adjustability |
Tilt |
| Tilt |
-5°/+21° |
| Dell Display Manager Compatibility |
Yes with Easy Arrange |
| Voltage Required |
100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/1.5 A |
| Power Consumption |
0.3 W (Off Mode), 0.4 W (Standby Mode), 14.5 W (On Mode), 42 W (Max), 13.0 W (Pon), 41.1 kWh (TEC) |
| Audio Output |
Integrated 2 x 5W speakers |
| Security |
Security-lock slot (for Kensington locks, sold separately) |
| Compliant Standards |
RoHS-compliant, BFR/PVC reduce monitor, Arsenic-free glass and Mercury-free for the panel only, ENERGY STAR certified monitor |
| Flat Panel Mount Interface |
VESA (100 mm) |
| Temperature Range |
Operating: 0° to 40°C (32° to 104°F), Non-operating: -20° to 60° (-4° to 140° F) |
| Humidity Range |
Operating: 10% to 80% (non-condensing), Non-Operating: 5% to 90% (non-condensing) |
| Altitude |
Operating: 5,000 m (16,400 ft) max, Non-Operating: 12,192 m (40,000 ft) max |
| What's Included |
Monitor, Stand riser and base, Side I/O Cover, VESA cover, Quick setup guide, Safety, Environmental, and Regulatory Information |
| Cables Included |
1 x Power cable, 1 x HDMI cable |
| Physical Characteristics |
| Height with stand (Compressed ~ Extended) |
16.21 in |
| Width with stand |
21.17 in |
| Depth with stand |
6.42 in |
| Height without stand |
12.35 in |
| Width without stand |
21.17 in |
| Depth without stand |
2.32 in |
| Weight (panel only - for VESA mount) |
7.25 lb |
| Weight (with packaging) |
13.05 lb |
