| Processor: |
One Intel Xeon E-2300 Series processor with up to 8 cores, or Intel Pentium processors with up to 2 cores |
| Memory: |
• 4 DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s • Supports registered ECC DDR4 DIMMs only • Note: For Pentium processor, maximum memory speed supported is 2666 MT/s |
| Storage Controller: |
• Internal Controllers (RAID): PERC H755, PERC H355, PERC H345, HBA355i, S150• Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs or internal USB 3.0 • External PERC (RAID): N/A • External HBAs (non-RAID): HBA355e |
| Drive Bays: |
Front bays: Up to 4 x 3.5-inch SAS/SATA (HDD/SSD), Up tp 8 x 3.5-inch SAS/SATA (HDD/SSD), Max 160 TB on 8 HDD configuration, Note: Supports 2.5-inch drive in 3.5-inch hybrid drive carrier. |
| Power Supplies: |
• 450 W Bronze (cabled) AC/100 – 240 V • 600 W Platinum AC/100 – 240 V • 600 W DC/240 V • 700 W Titanium AC/100 – 240 V • 700 W DC/240 V |
| Cooling Options: |
Air cooling |
| Fans: |
• System fan • One non hot swap fan |
| Dimensions: |
• Height – 382.5 mm (15.06 inches) • Width – 175 mm (6.89 inches) • Depth – 581.12 mm (22.88 inches) with bezel |
| Form Factor: |
4.5U tower server |
| Embedded Management: |
iDRAC9: iDRAC Direct, iDRAC RESTful with Redfish, iDRAC Service Module, |
| Bezel: |
Optional security bezel |
| OpenManage Software: |
• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
| Mobility: |
OpenManage Mobile |
| Integrations and Connections: |
OpenManage Integrations: BMC Truesight, Microsoft System Center, Red Hat Ansible Modules, VMware vCenter and vRealize Operations Manager • OpenManage Connections: IBM Tivoli Netcool/OMNIbus, IBM Tivoli Network Manager IP Edition, Micro Focus Operations Manager, Nagios Core, Nagios XI |
| Security: |
• Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded: |
NIC 2 x 1 GbE LOM |
| GPU Options: |
Not supported |

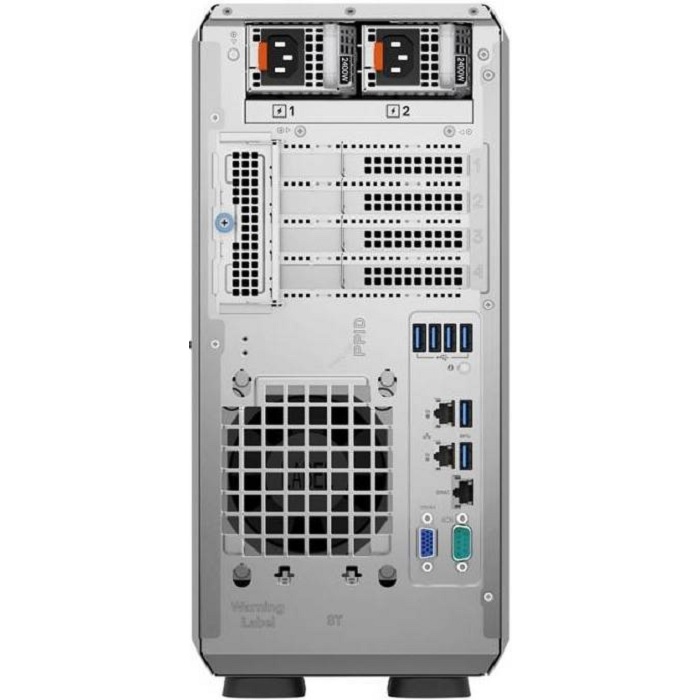

| Ports: |
Front Ports: 1 x Dedicated iDRAC (Micro-AB USB) port, 1 x USB 3.0 • Rear Ports: 5 x USB 2.0, 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x VGA, 1 x Serial • Internal Ports: 1 x USB 3.0 (optional) |
| PCIe: |
2 x Gen 4 PCIe slots and 2 x Gen 3 PCIe slot |
| Operating System and Hypervisors: |
Canonical Ubuntu Server LTS, VMware ESXi, Microsoft Windows Server with Hyper-V, SUSE Linux Enterprise Server, Red Hat Enterprise Linux |
| OEM-ready version available: |
From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. |
