| Processor : |
One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores |
| Memory : |
Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s |
| Storage Controller : |
Internal controllers (RAID): PERC H355, PERC H355f, PERC H345, PERC H345f, H755, H755f, HBA355i, HBA355f, S150 |
| Drive Bays : |

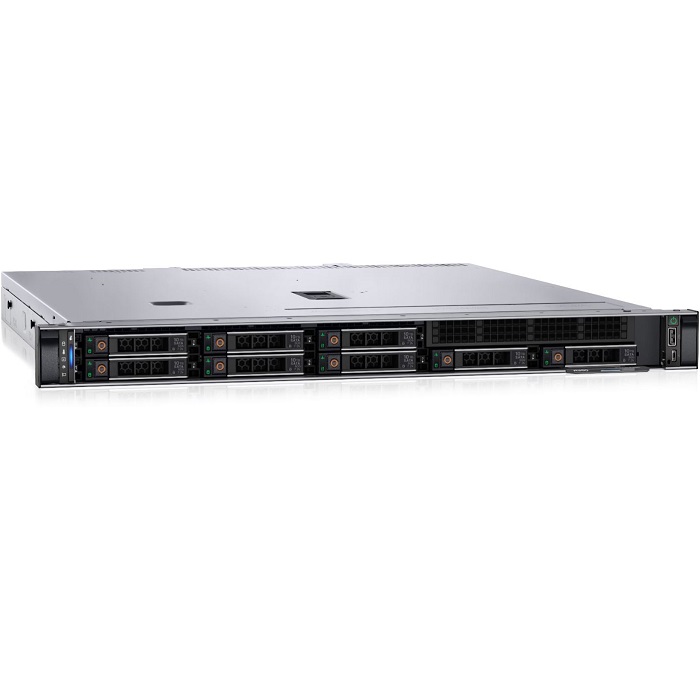

Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB, Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 128 TB |
| Power Supplies : |
600W Platinum 100-240 VAC or 240 VDC redundant, hot swap |
| Cooling options : |
Air cooling |
| Fans : |
Up to four fans with full redundancy |
| Dimensions : |
• Height – 42.8 mm (1.69 inches) • Width – 482 mm (18.98 inches) • Depth – 585.3 mm (23.04 inches) without bezel 598.94 mm (23.58 inches) with bezel |
| Form Factor : |
1U rack server |
| Embedded Management : |
iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module |
| Bezel : |
Optional LCD bezel or security bezel |
| OpenManage Software : |
OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
| Mobility : |
OpenManage Mobile |
| Integrations and Connections : |
OpenManage Integrations • BMC Truesight • Microsoft System Center • Red Hat Ansible Modules • VMware vCenter and vRealize Operations Manager OpenManage Connections • IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP Edition • Micro Focus Operations Manager • Nagios Core • Nagios XI |
| Security : |
• Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TCM 2.0 optional |
| Embedded NIC : |
2 x 1 GbE LOM |
| Network Options : |
NA |
| GPU Options : |
|
| Ports : |

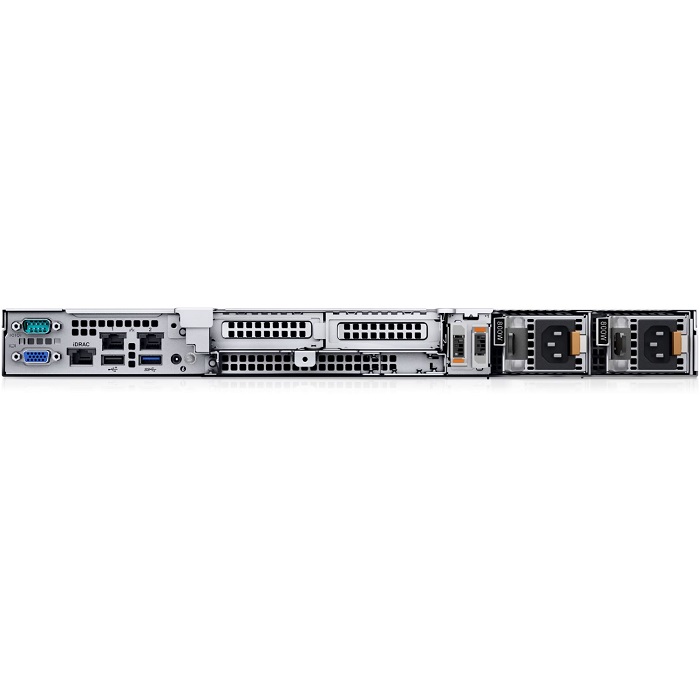

Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 Rear Ports • 1 x USB 2.0 • 1 x iDRAC ethernet port • 1 x USB 3.0 • 1 x Serial port • 1 x VGA Internal Ports • 1 x USB 3.0 (optional) |
| PCIe : |
3 PCIe slots: • 1 x 8 Gen4 ( x 16 connector) low profile, half length • 1 x 8 Gen4 ( x 8 connector) low profile, half length • 1 x 4 Gen4 ( x 8 connector) for dedicated PERC only |
