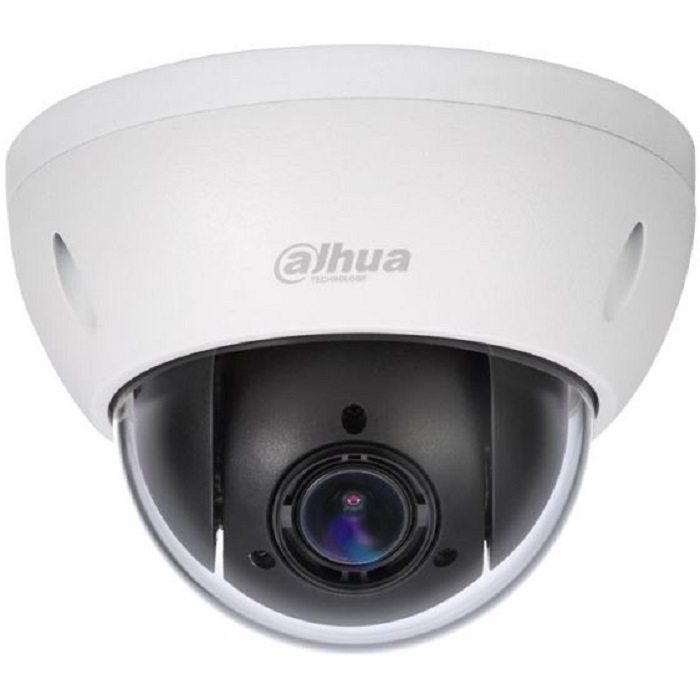

Dahua 2MP 4x Starlight HDCVI PTZ Camera SD22204-GC-LB

1 / 2.8 ”Sony® STARVIS ™ CMOS sensor, 2 megapixels

    Digital Resolution: 1080P (1920x1080), 720P (1280x720), D1 (704x576)

    Images per second: 25 ips @ 1080P, 25/50 ips @ 720P

    4-in-1 video output

    Day / night mode with removable mechanical filter (ICR)

    0.05 lux F1.6 (color), 0.005 lux F1.6 (B / W)

    2.7 ~ 11mm motorized lens

    Viewing angle: 30 ° ~ 112.5 ° (H), 19.9 ° ~ 54.2 ° (V), 40.6 ° ~ 122.3 ° (D)

    Automatic, semi-automatic and manual focus control

    16X digital zoom

    Imaging modes: BLC, HLC, WDR 120dB, 2D / 3D-NR, Electronic Defog

    White balance with 8 modes

    Automatic and manual gain control

    Horizontal positioner: 0 ° ~ 355 °

    Vertical positioner: 0 ° ~ 90 °

    Manual speed: 0.1 ° ~ 100 ° / sec. (H), 0.1 ° ~ 60 ° / sec. (V)

    Preset speed: 100 ° / sec. (H), 60 ° / sec. (V)

    300 presets

    DH-SD and Pelco-D / P protocols (automatic recognition)

    8 rounds of up to 32 presets each

    RS485 port (1200 ~ 9600 bps)

    Power supply: 12V DC, 1.5 (± 10%)

    Consumption: 5W (6.6W PTZ activated)

    -30 ° C ~ + 60 ° C operating temperature

    Relative humidity: <95% (non-condensing)

    Degree of protection IP66

    IK10 vandal protection

    4kV lightning-proof

    Metal housing

    Dimensions: Ø122 x 89 (Al) mm
