> 4-MP 1/3" CMOS image sensor, low luminance, and high definition
image.
> Outputs max. 4 MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED.
> Sound and light alarm linkage. When the alarm is triggered, the sound
and light will be linked.
> Built in high-performance 4G Module that suits all mobile networks.
Installation is no longer limited to wired networks. Please test the local
4G network with the camera before use.
> Built-in PIR sensor that detects human body through passive infrared
which is sensitive to body temperature.
> Built-in 8 GB eMMC memory chip that protects key records from being
lost.

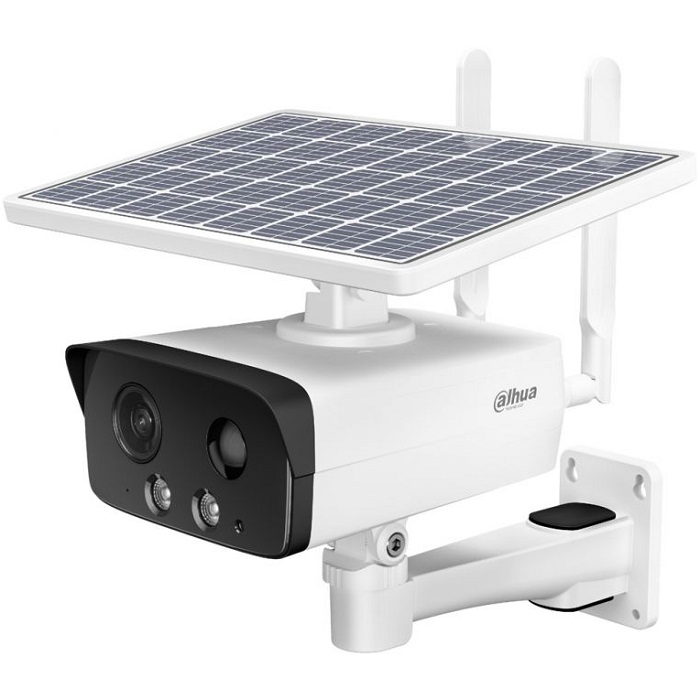

> Supports solar power, making it ideal for use in locations that have
exposure to sunlight.
> Standalone with built-in solar panel and battery, battery cycle life can
last up to 10 days at the rate of 1-hour remote live view per day.
> Abnormality detection: Motion detection, video tampering, audio
detection, SD card full, SD card error, network disconnection, IP conflict
and illegal access.
> Supports max. 256 G Micro SD card; built in MIC and speaker; support
two-way talk.
> IP67 protection.
Specification
| Make |
Dahua Technology |
| Manufacturer |
Dahua Technology Ltd |
| Category |
CCTV>IP cameras |
| Model code |
DH-IPC-HFW2431DG-4G-SP-EAU-B |
| Series |
Lite series |
| Chip Inch Size |
1/3 inch
|
| Colour Type |
Colour / Monochrome
|
| Resolution |
4MP resolution
|
| Sensitivity Lux |
0.01 Lux@F1.6 (Colour,30IRE), 0.001 Lux@F1.6 (B/W,30IRE), 0 lux (Illuminator on)
|
| Electrical Specifications |
Voltage: MicroUSB / 5 VDC
Power Consumption: Max. (4G pulling stream+IR+speaker+warning light): 4 W
|
| Motion Activated |
Yes
|
| Focal Length mm |
2.8 mm; 3.6 mm; 6 mm
|
| Mount Type |
Wall, Pole
|
| Wide Dynamic Range |
Yes
|
| Network Properties |
Image Frame Rate: 25/30 fps
Interface: RJ-45 (10/100 Base-T)
Network Protocols: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
|
| Back Light Compensation |
Yes
|
| Auto Gain Control |
Yes
|
| White Balance |
Yes
|
| Electronic Shutter Range |
Auto/Manual 1/3 s–1/100,000 s
|
| S/ N (Signal/ Noise) Ratio dB |
>56
|
| Compression Type |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
|
| Physical Specifications |
Weight g: 190
Dimensions mm: 230 x 150 x 2
|
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F)
Protection: IP67, IK10
Operating Humidity %: ≤ 95
|
| Additional info |
- 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2688 × 1520) @25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light/IR LED.
- Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
- Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks.
- Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature.
- Built-in 8 GB eMMC memory chip that protects key records from being lost.
- Supports solar power, making it ideal for use in locations that have exposure to sunlight.
- Standalone with built-in solar panel and battery, battery cycle life can last up to 10 days at the rate of 1-hour remote live view per day.
- Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access.
- Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk
|
