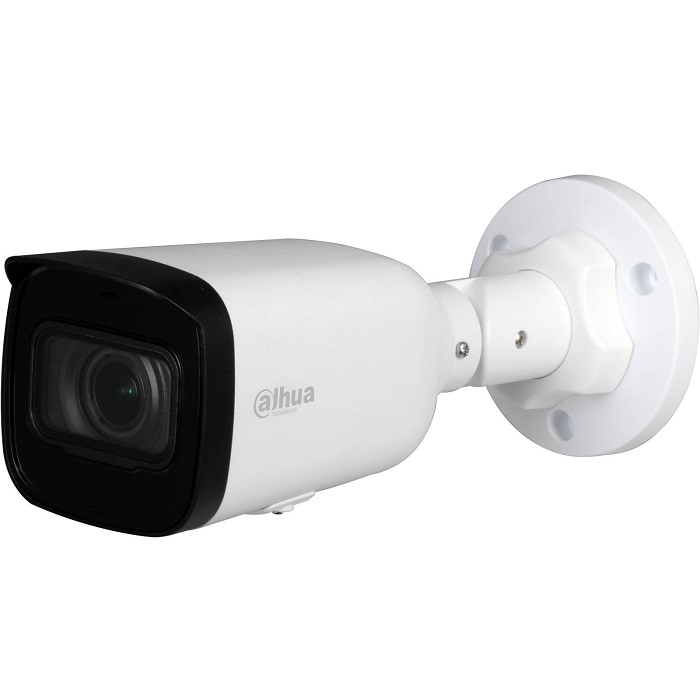

> 2MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2MP (1920 × 1080)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Abnormality detection: Motion detection, privacy masking, no SD card, SD card full, SD card error, network disconnection, IP conflict, and illegal
access
> Max. 256 G SD card.
> 12V DC/PoE power supply.
> IP67 protection.
Specification
| Image Sensor |
1/3” 4 Megapixel progressive CMOS |
| Max. Resolution |
2688 (H) × 1520 (V) |
| ROM |
128 MB |
| RAM |
128 MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
| S/N Ratio |
> 56 dB |
| Min. Illumination |
0.03 Lux @ F1.7 |
| Illumination Distance |
50 m (164.0 ft) |
| Illuminator On/Off Control |
Auto/Manual |
| Illuminator Number |
2 (IR LED) |
| Pan/Tilt/Rotation Range |
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
| Lens Type |
Motorized vari-focal |
| Mount Type |
φ14 |
| Focal Length |
2.8 mm–12 mm |
| Max. Aperture |
F1.7 |
| Field of View |
Horizontal: 98°–31°, Vertical: 55°–18°, Diagonal: 116°–36° |
| Iris Type |
Fixed |
| Close Focus Distance |
0.8 m (2.6 ft) |
| DORI Distance |
Lens |
| |
W: 66.0 m (183.7 ft) |
| |
T: 200.0 m (656.2 ft) |
| Video Compression |
H.265; H.264; H.264B; MJPEG (only supported by sub stream) |
| Smart Codec |
Smart H.265+/Smart H.264+ |
| Video Frame Rate |
Main Stream: 2688 × 1520 (1 fps–20 fps), 2560 × 1440 (1 fps–25/30 fps) |
| |
Sub Stream: 704 × 576 (1 fps–20/25 fps), 704 × 480 (1 fps–20/30 fps) |
| Stream Capability |
2 streams |
| Resolution |
2688 × 1520, 2560 × 1440, 2304 × 1296, 1080p, 1.3M, 720p, D1, VGA, CIF |
| Bit Rate Control |
CBR, VBR |
| Video Bit Rate |
H.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps |
| Day/Night |
Auto (ICR)/Color/B/W |
| BLC |
Yes |
| HLC |
Yes |
| WDR |
120 dB |
| White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control |
Manual/Auto |
| Noise Reduction |
3D NR |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) |
Yes (4 areas) |
| Smart Illumination |
Yes |
| Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror |
Yes |
| Privacy Masking |
4 areas |
| Alarm |
Alarm Event: Network disconnection, IP conflict, motion detection, video tampering, illegal access, voltage detection, security exception, defocus detection |
| Network |
RJ-45 (10/100 Base-T) |
| SDK and API |
Yes |
| Cyber Security |
Video encryption, firmware encryption, configuration encryption, Digest, WSSE, account lockout, security logs, IP/MAC filtering, generation and importing of X.509 certification, syslog, HTTPS, 802.1x, trusted boot, trusted execution, trusted upgrade |
| Protocol |
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour |
| Interoperability |
ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P |
| User/Host |
20 |
| Storage |
FTP, SFTP, Micro SD card (support max. 256 GB), NAS |
| Browser |
IE, Chrome, Firefox |
| Management Software |
Smart PSS, DSS, DMSS |
| Mobile Phone |
IOS, Android |
| Certification |
Certifications: CE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, FCC: 47 CFR FCC Part 15, Subpart B |
| Power |
12V DC/POE (802.3af) Power Consumption < 7.5W (PoE) |
| Environment |
Operating Conditions: -30°C to +55°C (-22°F to +131°F) / less than≤95% |
| |
Storage Conditions: -40°C to +60°C (-40°F to +140°F) |
| Protection |
IP67 |
| Structure |
Casing: Metal + plastic |
| |
Dimensions: 243.5 mm × Φ90.7 mm (9.6" × Φ3.6") |
| |
Net Weight: 0.44 kg (1.0 lb) |
| |
Gross Weight: 0.69 kg (1.5 lb) |
