Specification

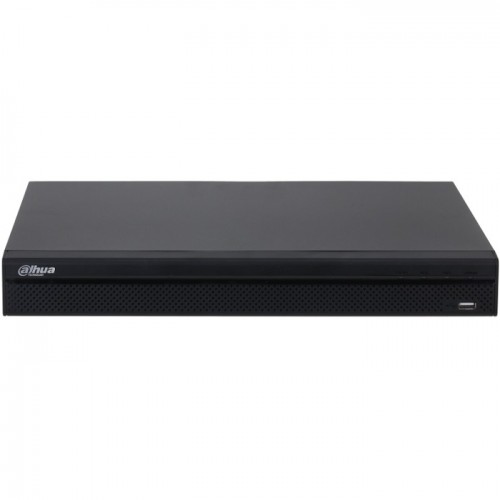

Dahua DHI-NVR4216-4KS3. 16-channel Dahua IP NVR. Smart H.265+ format. 160/80Mbps input/output. Simultaneous HDMI (4K) and VGA (1080P) outputs. Compatible with smart cameras. SMD Plus 4 channels. 4 inputs / 2 alarm outputs. Capacity of 2 SATA HDD. 1 RJ45 Gigabit, 2 USB 2.0., 12V DC. 16-channel dahua ip nvr.
- 16 IP channels
- Video compression: Smart H.265+, H.265, Smart H.264+, H.264
- Simultaneous HDMI (4K) and VGA (1080P) video outputs
- Output division: 1, 4, 8, 8, 9, 9, 16
- 1 input / 1 output RCA audio
- Audio Compression: PCM, G.711a, G.711u, G726
- Recording resolution: 12MP, 8MP, 6MP, 5MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1, CIF, QCIF
- Bandwidth with AI disabled: 160Mbps input, 160Mbps recording, 80Mbps output
- AI-enabled bandwidth: 80 Mbps input, 80 Mbps recording, 60 Mbps output
- Decoding capacity with AI disabled:
- 1 channel at 12MP (30 fps)
- 2 channels at 8MP (30 fps)
- 3 channels at 5MP (30 fps)
- 4 channels at 4MP (30 fps)
- 8 channels at 1080P (30 fps)
- AI-enabled decoding capability:
- 1 channel at 12MP (30 fps)
- 1 channel at 8MP (30 fps)
- 2 channels at 5MP (30 fps)
- 3 channels at 4MP (30 fps)
- 7 channels at 1080P (30 fps)
- Recording modes general, motion detection, intelligence, alarm
- Alarm by video sensor, privacy mask, video loss, scene change, PIR alarm, external camera
- Artificial Intelligence from intelligent cameras: Perimeter protection (6-channel), Face detection (6-channel), Face recognition (6-channel), SMD Plus (6-channel)
- Artificial Intelligence in the recorder: SMD Plus (4 channels)
- Playback of up to 16 channels
- 4 alarm inputs / 2 alarm outputs
- Internal capacity for 2 SATA HDD up to 20TB (sold separately)
- RJ45 Fast Ethernet network port (10/100/1000Mbps)
- Network Protocols: HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, IP Search (Supports IP camera, DVR, NVS, etc.), P2P, Auto Registration
- ONVIF 22.12 (T/S/G), CGI and SDK support
- Compatible with web browsers
- Compatible with Android and iOS devices
- Server Access local network and Internet
- Ability to limit user access to cameras in local and/or remote mode
- Can be controlled remotely via Joystick keyboard connected via TCP/IP
- Sending of eMails with photo attached in alarm
- Sending to FTP programmed or in alarm
- Possibility to send alarm, and be connected to video surveillance receiver software
- Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.
- Communication ports: 2 USB 2.0 ports
- Power supply: 12V DC, 4A
- Power consumption: ≤10W (excluding disks)
- Storage temperature from -20°C ~ +60°C
- Operating temperature from -10°C ~ +55°C
- Relative humidity 10%~93%.
- Dimensions: 375 (W) x 53 (H) x 282.9 mm (W) x 53 (H) x 282.9 mm (2.5")
- Net weight: 1.49 kg
- Gross weight: 2.77 kg
- Rack or desktop installation
