> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560×1440 (2560 × 1440) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus
Specification
| Make |
Dahua Technology |
| Manufacturer |
Dahua Technology Ltd |
| Category |
CCTV>IP cameras |
| Model code |

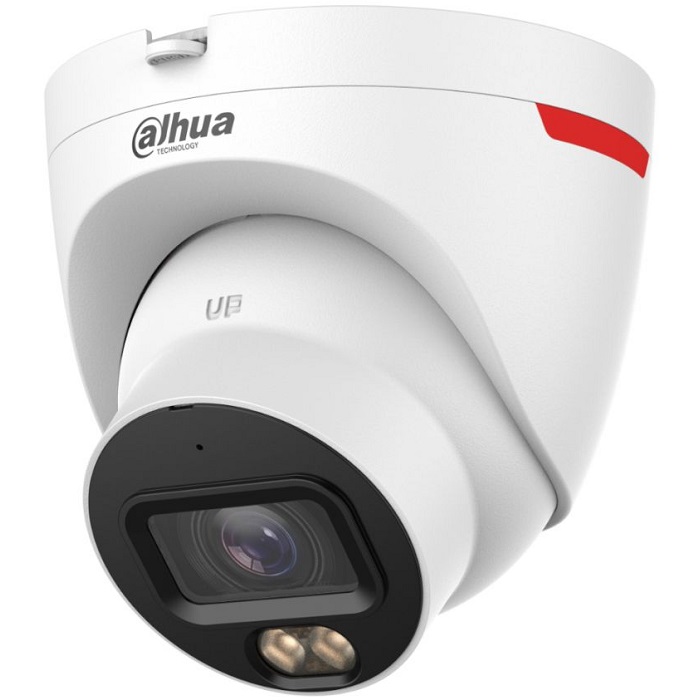

DH-IPC-HDW2449T-S-PRO |
| Series |
WizSense Series |
| Chip Inch Size |
1/1.8 inch
|
| Colour Type |
Colour / Monochrome
|
| Resolution |
4MP resolution
|
| Sensitivity Lux |
0.0005 lux@F1.0
|
| Electrical Specifications |
Voltage: 12 V DC, PoE
Power Consumption: Max.: 5.3 W (12 VDC); 6.4 W (PoE)
|
| Motion Activated |
Yes
|
| Focal Length mm |
2.8 mm; 3.6 mm
|
| Mount Type |
Wall, Ceiling, Pole, Corner
|
| Wide Dynamic Range |
Yes
|
| Back Light Compensation |
Yes
|
| Auto Gain Control |
Yes
|
| White Balance |
Yes
|
| Electronic Shutter Range |
Auto/Manual 1/3 s–1/100,000 s
|
| S/ N (Signal/ Noise) Ratio dB |
>56 dB
|
| Compression Type |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
|
| Network Properties |
Interface: RJ-45 (10/100 Base-T)
Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registeration
|
| Physical Specifications |
Weight g: 420
Dimensions mm: 109.5 x Φ109.9
|
| Environmental Specifications |
Protection: IP67
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F)
Operating Humidity %: ≤95%
|
| Additional info |
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light, and the max. illumination distance is 30 m.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Supports max. 256 G Micro SD card; built in Mic.
|
