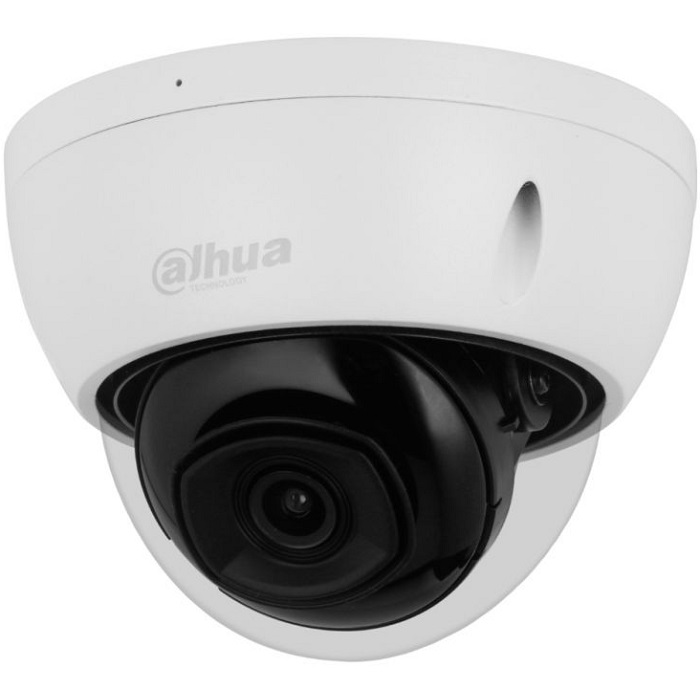

> 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition
image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520
(2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the
classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio
detection, no SD card, SD card full, SD card error, network
disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 , IK10 protection.
> SMD Plus.
Specification
| Standard: |
TCP/IP |
| Sensor: |
1/2.7 " Progressive Scan CMOS |
| Matrix size: |
8.3 Mpx |
| Resolution: |
3840 x 2160 - 8.3 Mpx, 4K UHD ,
3072 x 2048 - 6 Mpx ,
3072 x 1728 - 5 Mpx ,
2880 x 1620 - 4.7 Mpx ,
2688 x 1520 - 4 Mpx ,
2048 x 1536 - 3 Mpx ,
2304 x 1296 - 3 Mpx ,
1920 x 1080 - 1080p ,
1280 x 960 - 1.3 Mpx ,
1280 x 720 - 720p |
| Lens: |
2.8 mm |
| View angle: |
106 ° (manufacturer data) 77 ° (our tests result) |
| Range of IR illumination: |
30 m |
| RS-485 interface: |
 |
| Memory card slot: |
Micro SD memory cards up to 256GB support (possible local recording) |
| Image compression method: |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs / outputs: |
|
| Audio: |
Microphone built-in Audio transmission via network Audio detection Compliance with the AAC standard |
| Main stream frame rate: |
20 fps @ 8.3 Mpx 25 fps @ 4 Mpx |
| Network interface: |
10/100 Base-T (RJ-45) |
| Network protocols: |
IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour |
| WEB Server: |
Built-in |
| Max. number of on-line users: |
20 |
| ONVIF: |
21.12 |
| Mobile phones support: |
Port no.: 37777 or access by a cloud (P2P) Android: DMSS free application iOS (iPhone): DMSS free application |
| Default IP address: |
192.168.1.108 |
| Default admin user / password: |
admin / -
The administrator password should be set at the first start |
| Web browser access ports: |
80, 37777 |
| PC client access ports: |
37777 |
| Mobile client access ports: |
37777 |
| ONVIF port: |
80 |
| RTSP URL: |
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Main features: |
WDR - 120 dB - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - improve the quality of selected parts of image SMD PLUS - searching for an object classified as: human, motor vehicle, non-motor vehicle NAS - Network Attached Storage support BLC - Back Light Compensation HLC - High Light Compensation (spot) ICR - Movable InfraRed filter Day/Night mode (color/b&w/auto) Auto White Balance AGC - Automatic Gain Control Mirror - Mirror image Motion Detection - max. 4 zones Privacy zones - max. 4 Smart motion detection (with recognizing people and vehicles) IVS analysis : crossing the line (tripwire), intrusion - classification of people and vehicles, scene changing |
| Power supply: |
PoE (802.3af), 12 V DC / 450 mA |
| Power consumption: |
≤ 6.4 W @ PoE ≤ 5.4 W @ 12 V DC |
| Housing: |
Dome - Metal |
| Color: |
White |
| "Index of Protection": |
IP67 |
| Vandal-proof: |
IK10 |
| Operation temp: |
-40 °C ... 60 °C |
| Weight: |
0.35 kg |
| Dimensions: |
Ø 110 x 81 mm |
| Supported languages: |
Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, Vietnamese, Italian |
| Manufacturer / Brand: |
DAHUA |
