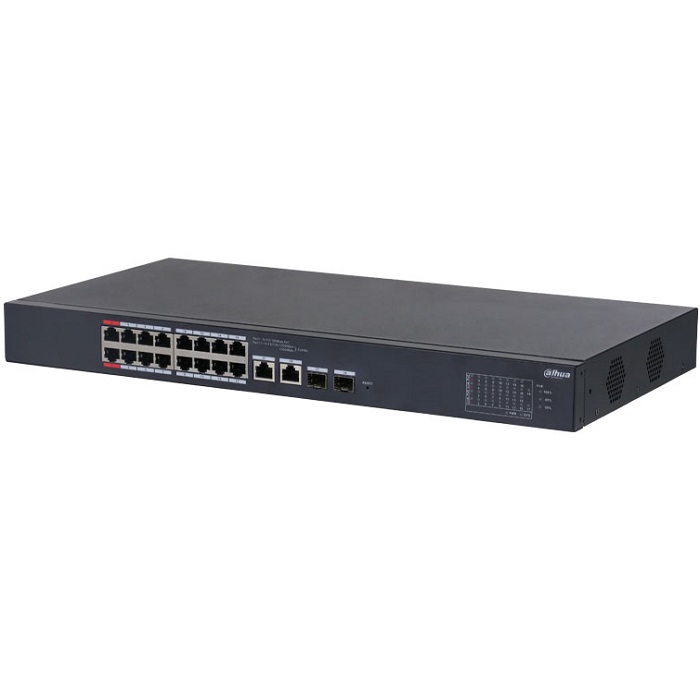

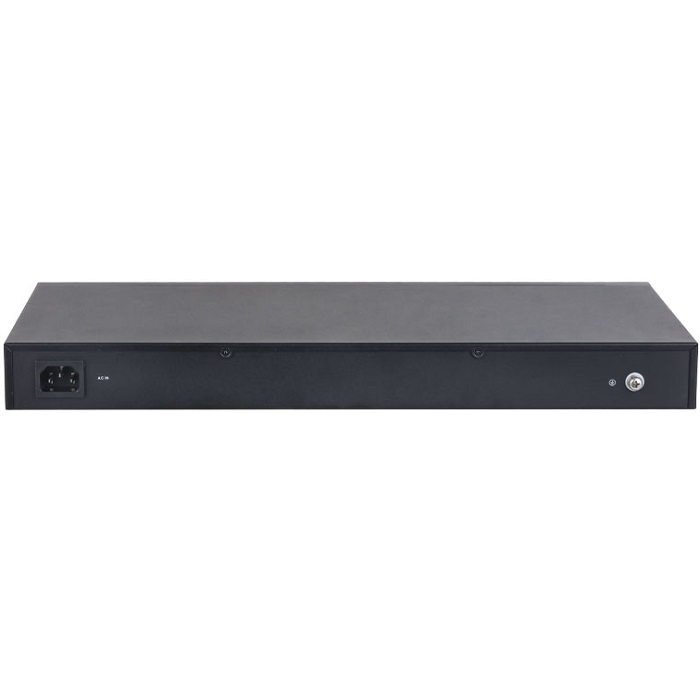

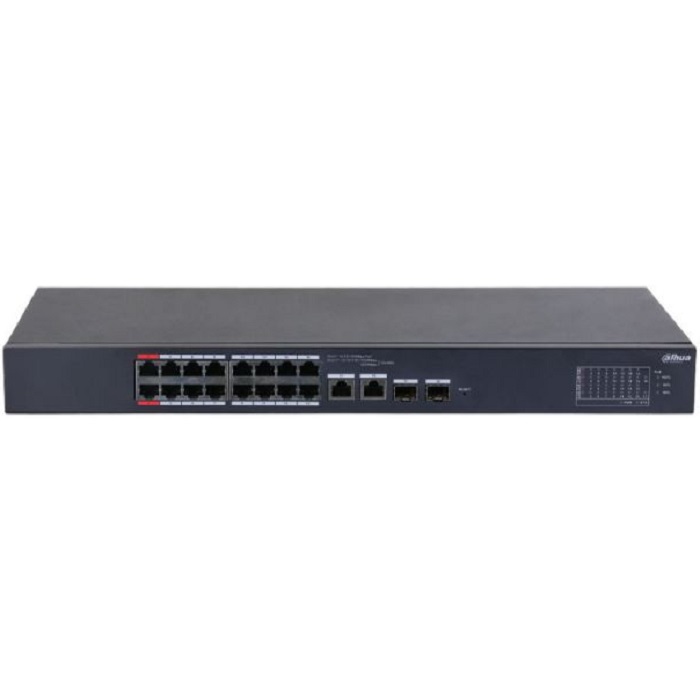

Dahua 18Port Cloud Managed Desktop Switch with 16Port PoE CS4218-16ET-240

Specification

• 16 PoE RJ45 10/100Mbps ports
• 2 combo RJ45 Uplink 10/100/1000 Mbps RJ45 combo ports
• 2 combo SFP Uplink 1000 Mbps combo ports
• PoE consumption: ≤90W ports 1 to 2 (marked in red), ≤30W ports 3 to 16, ≤240W in total
• PoE Standards:
  • IEEE802.3af (PoE).
  • IEEE802.3at (PoE+)
  • IEEE802.3bt (Hi-PoE).
• Network standards:
  • IEEE802.3
  • IEEE802.3u
  • IEEE802.3x
  • IEEE802.3ab
  • IEEE802.3z
• Powerful L2 functions
• 7.2Gbps switching capacity
• Packet transfer rate of 5.36Mpps
• Packet buffer memory: 4Mbit
• Jumbo frame: 15K Byte
• MAC addresses: 8K
• VLAN: 32
• Port-based VLAN function
• DHCP client
• Cloud management via Dolynk platform
• Web management and App management
• PoE consumption management
• PoE pin allocation 1,2,4,4,5(V+),3,6,7,8(V-)
• Long distance PoE transmission
• Reset button
• Power supply: 100V ~ 240V AC, 47-63Hz, max. 4A
• Consumption: ≤6W (standby), 265W (max)
• Storage temperature: -40°C ~ +70°C
• Storage relative humidity 5%~95%.
• Operating temperature: -10°C ~ +55°C
• Operating relative humidity 5%~95%.
• Metal housing
• Lightning-proof 4kV
• Desktop or rackmount installation
• Dimensions: 440 (W) x 44 (H) x 220 mm
• Gross weight: 2.35 kg
• Net weight: 3 kg
• Power supply included
