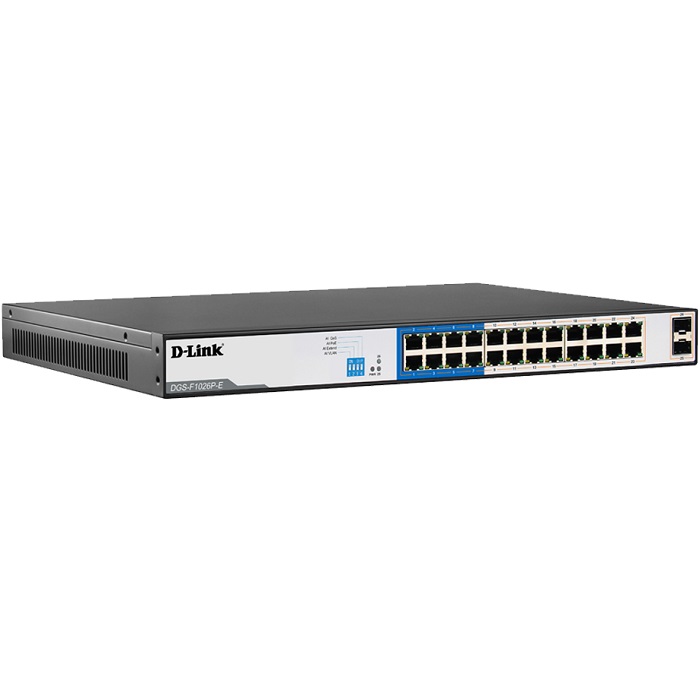

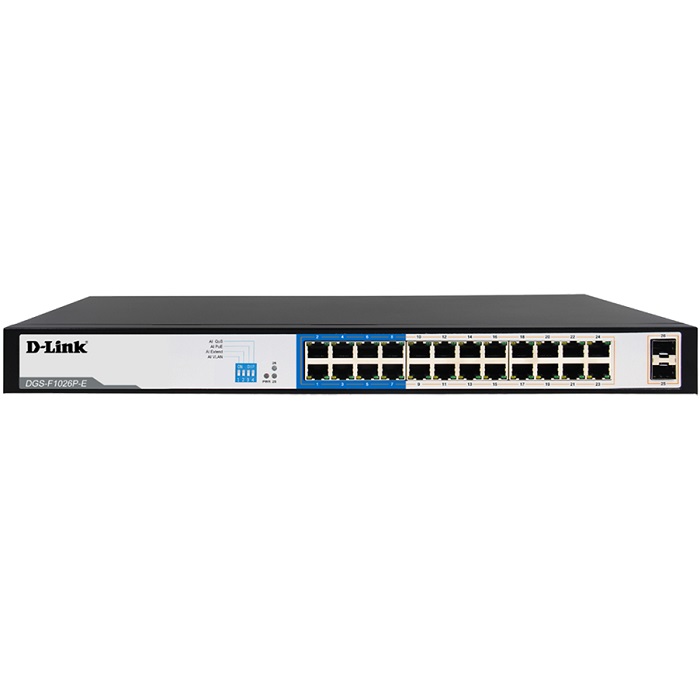

The D-Link DGS-F1026P-E24 Port Switch with 10/100/1000Mbps and 2 SFP Ports enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones to the network. T he DGS-F1026P-E can also connect other Ethernet devices like computers, printers and a Network Attached Storage (NAS) to fit into any type of network application.
– 24x 10/100/1000 Mbps Ethernet PoE ports
– 2x SFP Uplink
– IEEE 802.3af/at Power Over Ethernet (PoE) enables installation in hard to reach locations
– 250 W total power budget
– Up to 30 W power output per PoE port
Specification
| Size |
Desktop (with Mounting Kit) |
| Network Interface |
24 10/100/1000 BASE-T ports, 2 SFP |
| Standards |
IEEE 802.3u, Fast Ethernet standards; IEEE 802.3af/at, Ethernet power supply POE standard; IEEE 802.3ab, Gigabit Ethernet standards; IEEE 802.3az, EEE, Energy efficient Ethernet standard; IEEE 802.3x, Full-duplex Ethernet data link layers ; IEEE 802.3z, Gigabit Ethernet fiber-optic standard |
| Media Interface Exchange |
Auto MDI/MDI-X adjustment on all ports |
| Lightning protection |
6KV |
| Switching Fabric |
52 Gbps |
| Transmission Method |
Adopt Store-and-forward |
| Data Transfer Rates |
Gigabit Ethernet -1000 Mbps, Ethernet -100 Mbps |
| Physical specifications |
Dimensions (LxWxH): 440 x 180 x 44mm, Weight: 3.0kg |
| POE Power Budget |
250W (30 W max. per PoE port) |
| Power |
Total Power: 250W |
| Humidity |
Operating: 0% to 95% RH non-condensing, Storage: 0% to 95% RH non-condensing |
