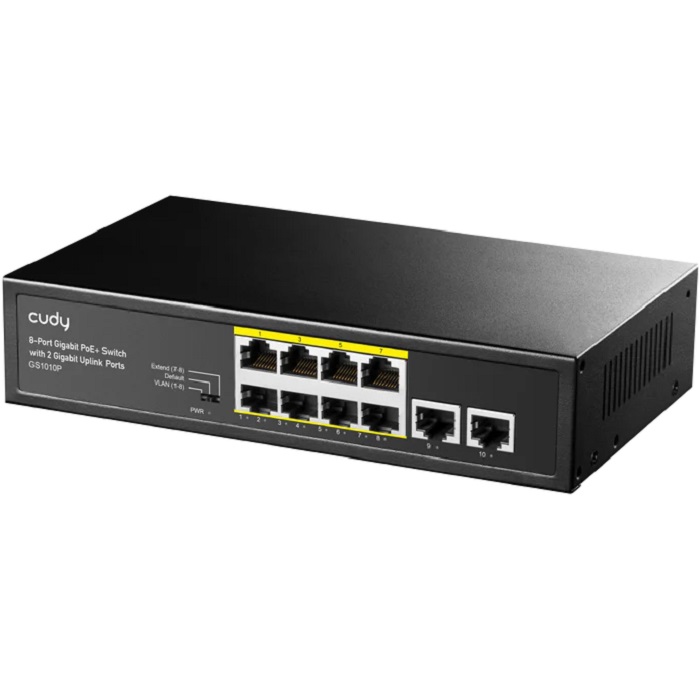

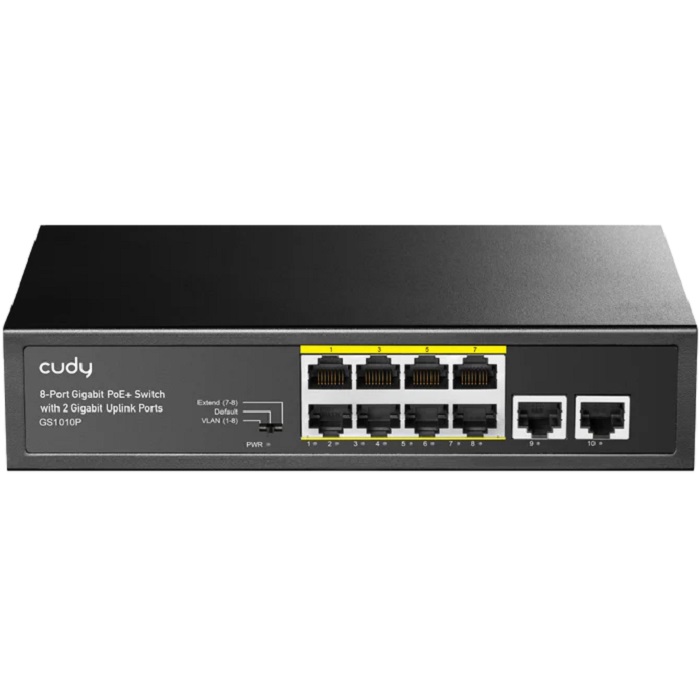

Cudy GS1010P 8-Port Gigabit PoE+ Switch With 2 Gigabit Uplink Ports 120W
Cudy GS1010P 8-Port Gigabit PoE+ Switch With 2 Gigabit Uplink Ports 120W
AED 128
Cudy GS1010P 8-Port Gigabit PoE+ Switch With 2 Gigabit Uplink Ports 120W
Cudy
AED 128 inclusive of VAT

Cudy GS1010P 8-Port Gigabit PoE+ Switch With 2 Gigabit Uplink Ports 120W

  • Model:  GS1010P
  • SKU:                   204486
  • Condition:        New
  • Availability:      In Stock
About this Item
  • Brand: Cudy
  • 8× GbE with 802.3at/af Mode A PoE
  • 2× Uplink SFP
  • 120W Power Supply
  • Default/VLAN/Extend Modes
  • Watchdog under VLAN or Extend Modes
  • Desktop, Rack-Mount
  • 220×150×44 mm (8.66×5.91×1.73″)
AED 128 inclusive of VAT
Pay 4 interest-free payments of AED 32.00 , no interest/fees. Learn more
  • 1 year hassle free warranty claims
  • Delivery time is next working day, You can connect to support team to get exact delivery time.
Description - Cudy GS1010P 8-Port Gigabit PoE+ Switch With 2 Gigabit Uplink Ports 120W
A rack-mounted 10-GbE PoE switch with a 120W power supply and a silent cooling system.

Specification

Interfaces Gigabit RJ45 Ports 10
Gigabit RJ45 PoE Ports #1~#8
Max Power on a Single PoE Port 30W
PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
Extend Mode Ports #7~#8
VLAN Mode Ports #1~#8
LED
  • Power
  • Speed/Link/ACT of Each Ethernet Port
  • PoE Status of Each PoE Port

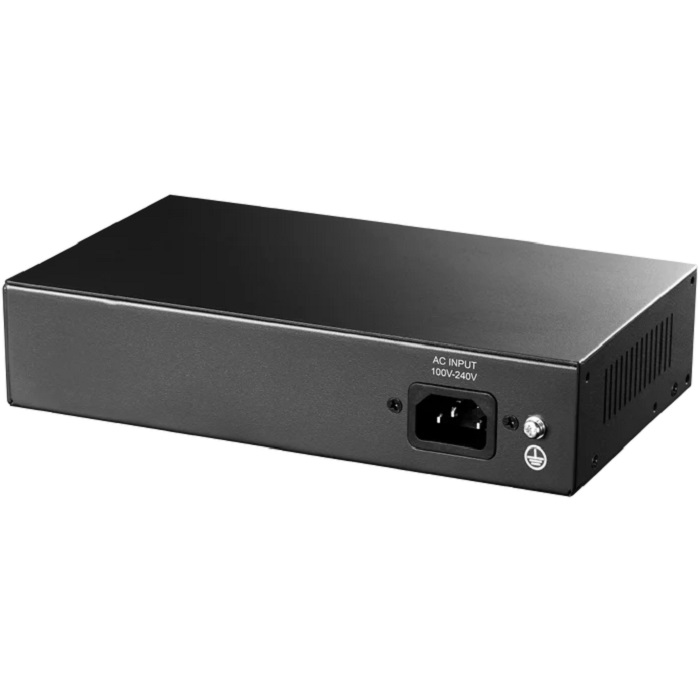

Power Input AC Inlet
Physical Buttons VLAN/Default/Extend DIP Switch
Performance
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
MAC Address Table 2048
Max Switching Capacity 20 Gbps
Max Forwarding Rate 14.88 Mpps
Jumbo Frame 2 KB
Packet Buffer 448 Kbit
Power
Power Power Methods AC
AC 100-240V~, 50/60Hz
Power Supply 120W
Max Power Excluding PoE 10W
Switching
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3x Flow Control
  • 802.3af PoE
  • 802.3at PoE
Reliability
Reliability Grounding Methods Three-Prong Plug
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
Mechanical
Mechanical Dimension 220×150×44 mm
8.66×5.91×1.73 inches
Product Weight 630 g (22.22 oz.)
Casing Material Metal
Installation
  • Desktop
  • Rackmount via Brackets (Brackets not included in the box)

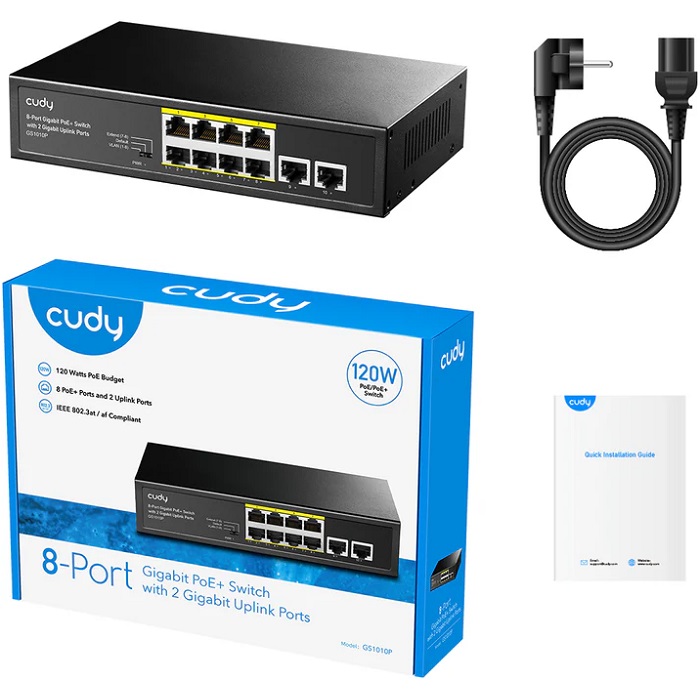

Package Content
Package Content
  • GS1010P
  • Power Cord
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 245×190×60 mm
9.65×7.48×2.36 inches
Retail Package Weight EU: 936 g (33.02 oz.)
Carton Net Weight EU: 15.0 kg (33.07 lbs)
Carton Gross Weight EU: 15.5 kg (34.17 lbs)
Read more
Specification - Cudy GS1010P 8-Port Gigabit PoE+ Switch With 2 Gigabit Uplink Ports 120W
Shipping Information
Varsai SKU 204486
Brand Cudy
Model GS1010P
Warranty 1 Year   Hassle free warranty claims
Shipping Weight 0.90000000 kg
Shipping Dimensions 19.51000000 cm x 25.00000000 cm x 6.00000000 cm
